19

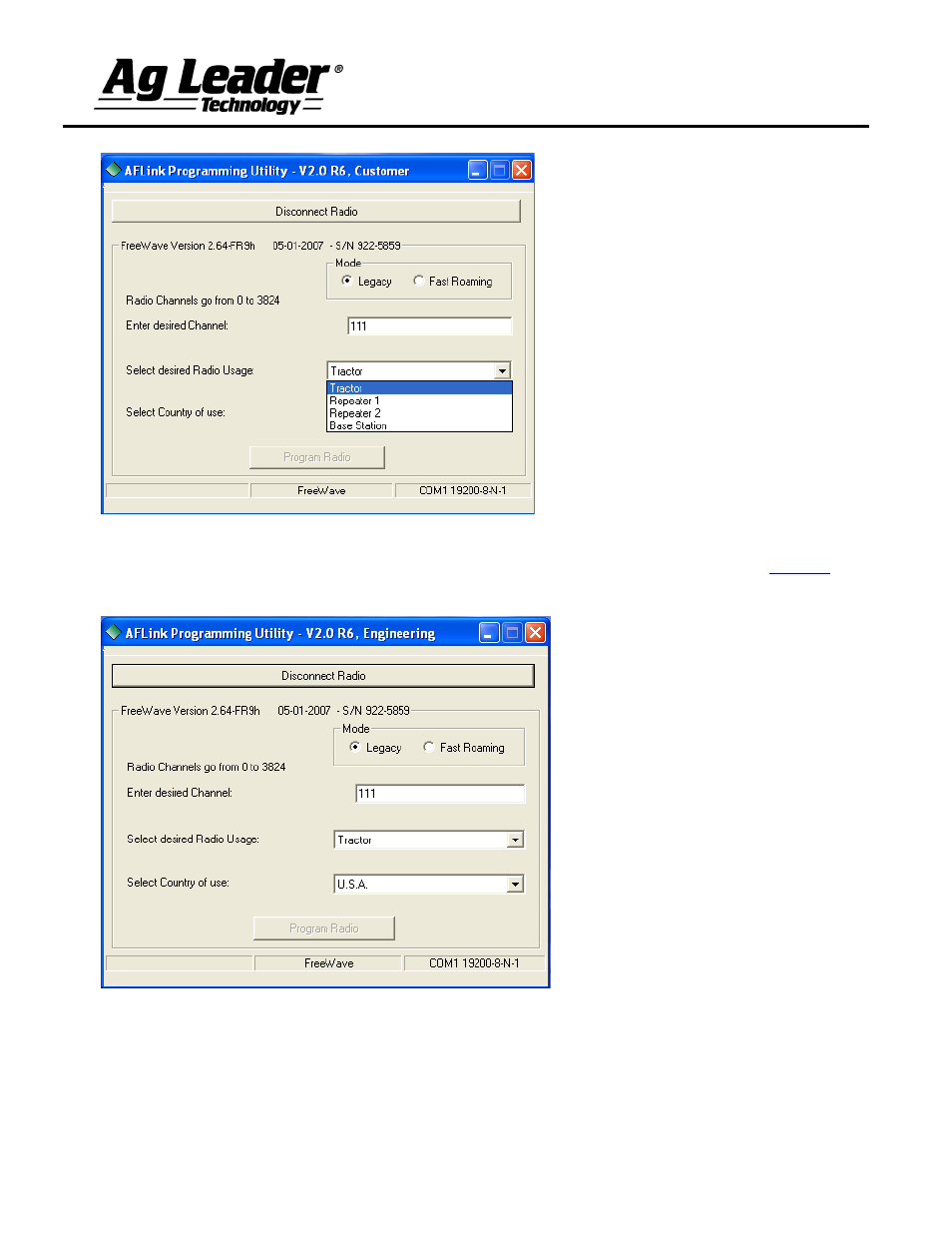

Figure 22 - AFLink Freewave usage choice
If the firmware version is 2.64, user can set mode to be “Legacy”, or “Fast Roaming” mode as shown in Figure 23 . In
Legacy mode, Tractor, Repeaters only accept the packages sent from the base station with the same network id. In “Fast
Roaming” mode, Tractor and repeaters can accept the packages sent from the base stations out of the network.
Figure 23 - AFLink Freewave Mode Choices (Legacy or Fast Roaming) for firmware 2.64
