5

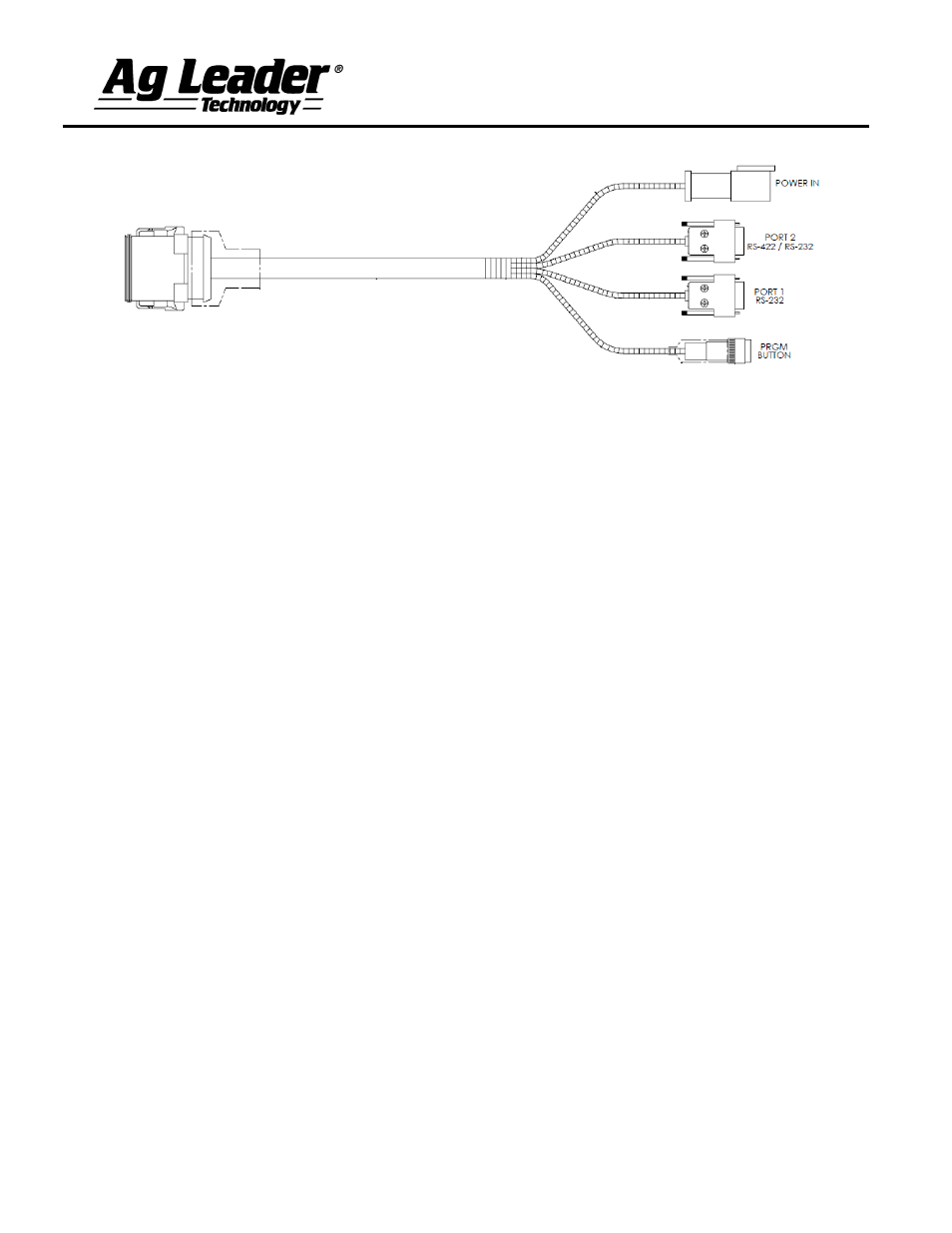

Figure 4: External Radio Technician Cable - p/n-201-0221-01
•
The External Radio Technician cable is used to communicate with the Tower Radio and Repeater.
Benco Kit p/n-212303 is necessary to change the communication rate from RS-232 to RS-422.
• The Benco kit should be connected to Port 2 (labeled RS-232 / RS-422) which is then connected to a
COM port of the PC.
• Connect the power connection to the power cable.
• When the Radio is powered, the programming button should be pressed in to put the Radio
into programming mode and allow it to communicate with the PC.
