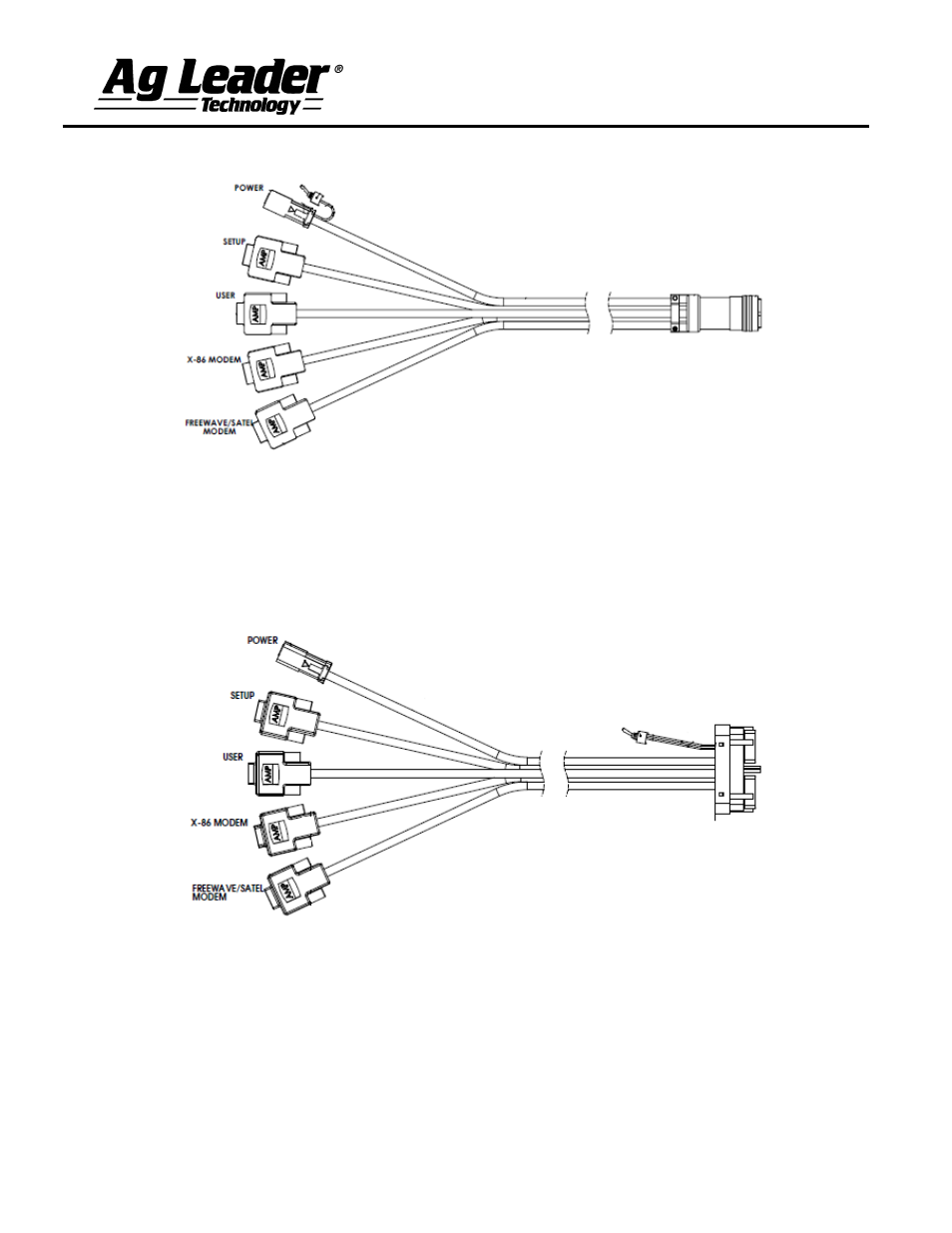

Technician Cable Diagrams:

Figure 2: Mobile Technician Cable – p/n-201-0176-01

Connect the power connection to the power cable. Connect the Setup Port to a COM port of a PC.
Use the Base Configuration Tool to communicate with the GPS receiver.

Connect the Freewave/Satel Modem port to a PC to communicate with the internal Radio using the
AF Link program.

o

Use the toggle switch to put the Radio into programming mode.


Figure 3: Tower Base Technician Cable – p/n-201-0177-01

Connect the power connection to the power cable. Connect the Setup Port to a COM port of a PC.
Use the Base Configuration Tool to communicate with the GPS receiver.

Connect the Freewave/Satel Modem port to a PC to communicate with the internal Radio using the
AF Link program.

o

Use the toggle switch to put the Radio into programming mode.
