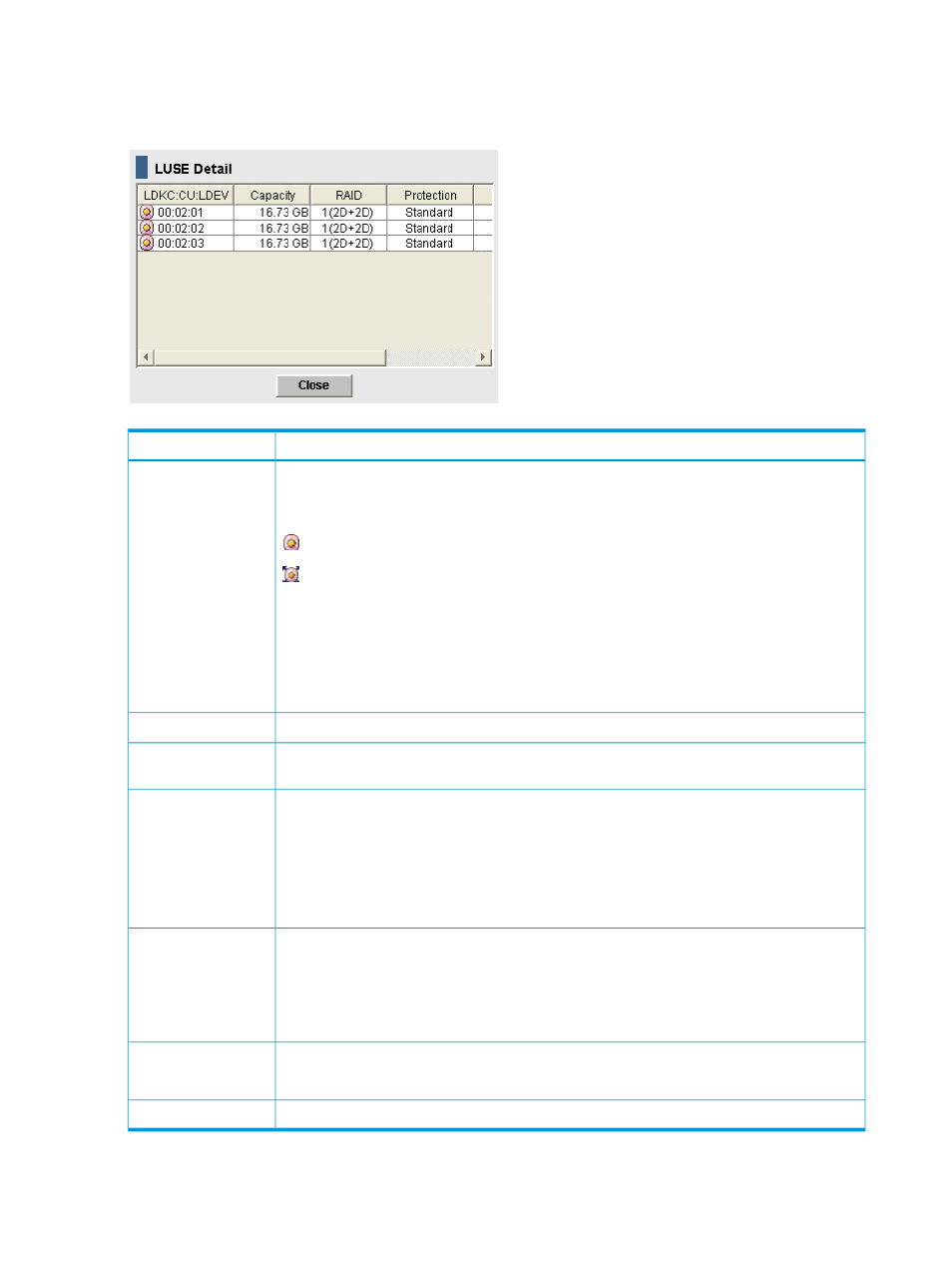

LUSE Detail dialog box
This dialog box provides information about the volumes (LDEVs) that are combined into a selected
LUSE volume.
Description Item
The LDEV status icon, and the LDEV identifier (LDKC, CU, and LDEV numbers). If the selected
LDEV is a LUSE volume, the LDEV number of the top LDEV in the LUSE volume appears. LDKC:CU:LDEV
The LDEV status icons indicate:
: Normal LDEV.
: Expanded (LUSE) volume
•
An LDEV number ending with # (for example, 00:00:01#) indicates that the LDEV is an
external volume. For details regarding external volumes, see the HP XP P9000 External
Storage for Open and Mainframe Systems User Guide.
•
An LDEV number ending with V (for example, 00:00:01V) indicates that the LDEV is a virtual
volume (V-VOL) for Fast Snap or Snapshot. For details regarding V-VOLs, see the HP XP
P9000 Fast Snap User Guide or the HP XP P9000 Snapshot User Guide.
The capacity of the LDEV. Capacity
The RAID level of the LDEV. A hyphen (-) indicates the RAID level is unspecified when the LDEV
is an external LU or a virtual volume (V-VOL). RAID
The data protection level on the LDEV. Protection
•
SATA-W/V: Indicates the data protection level if the write and verify mode is set on a SATA
drive.
• SATA-E: Indicates the data protection level if the Enhanced mode is set on a SATA drive.
•
Standard: Indicates that a SAS drive, SSD, external volume, or virtual volume (V-VOL) is
being used.
The number of the parity group. PG
• A parity group number starting with E (for example, E1-1) indicates that the parity group
consists of one or more external LUs.
•
A parity group number starting with V (for example, V1-1) indicates that the parity group
consists of one or more Fast Snap or Snapshot virtual volumes (V-VOLs).
The cache logical partition number. CLPR
For detailed information about CLPRs, see the HP XP P9000 Cache Partition User Guide.
Closes the LUSE Detail dialog box. Close
