Chapter 8: Server Management
81

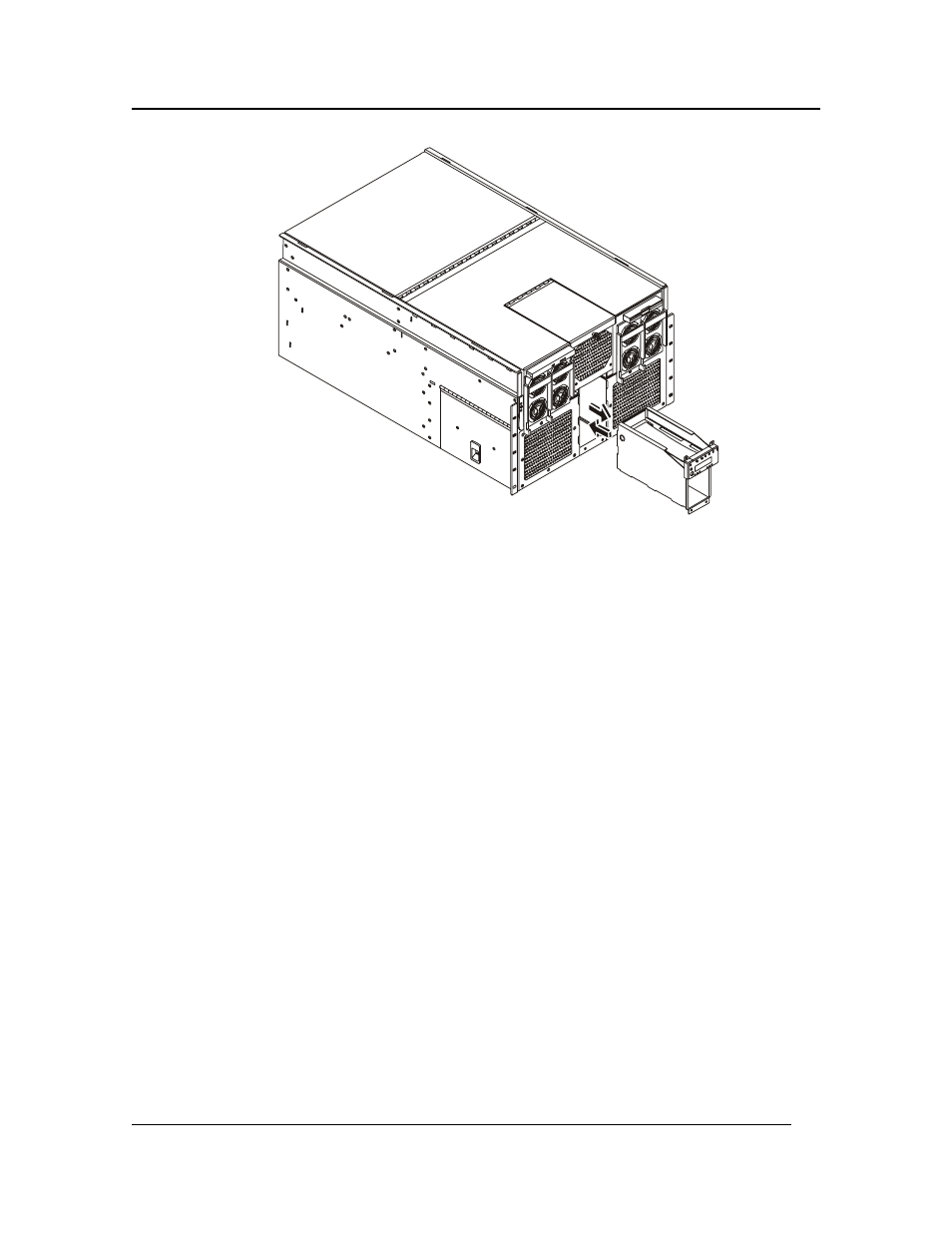

Figure 8-9. Removing the Hard Drive Bay from the Chassis
16. Disconnect the two 172 mm fan cables from the bottom side of the Power Distribution Board
(T-Docking). You can access these cables from the emptied Hard Drive Bay.
17. Lift the small handle mounted to the top of the Power Distribution Board (T-Docking) near the
Sideplane to disengage the Power Distribution Board (T-Docking) from the Sideplane.
18. Grasp the Power Distribution Board (T-Docking) by the right-rear edge and lift up to remove it
from the chassis.
