Chapter 1: Controls, Ports, and Indicators
1
1 Controls, Ports, and Indicators
Introduction
Before operating the Server, familiarize yourself with the HP Server’s controls, ports, and indicators,
as shown in Figures 1-1 through 1-8.
Front Panel
The front panel of the HP Server provides the controls and indicators commonly used when operating
the HP Server.
L C D D IS P L AY
P O W E R
P W R P W R A C T IVE A C T IVE FA IL FA IL
R ES E T IN T S YS PW R P W R FA N G E N

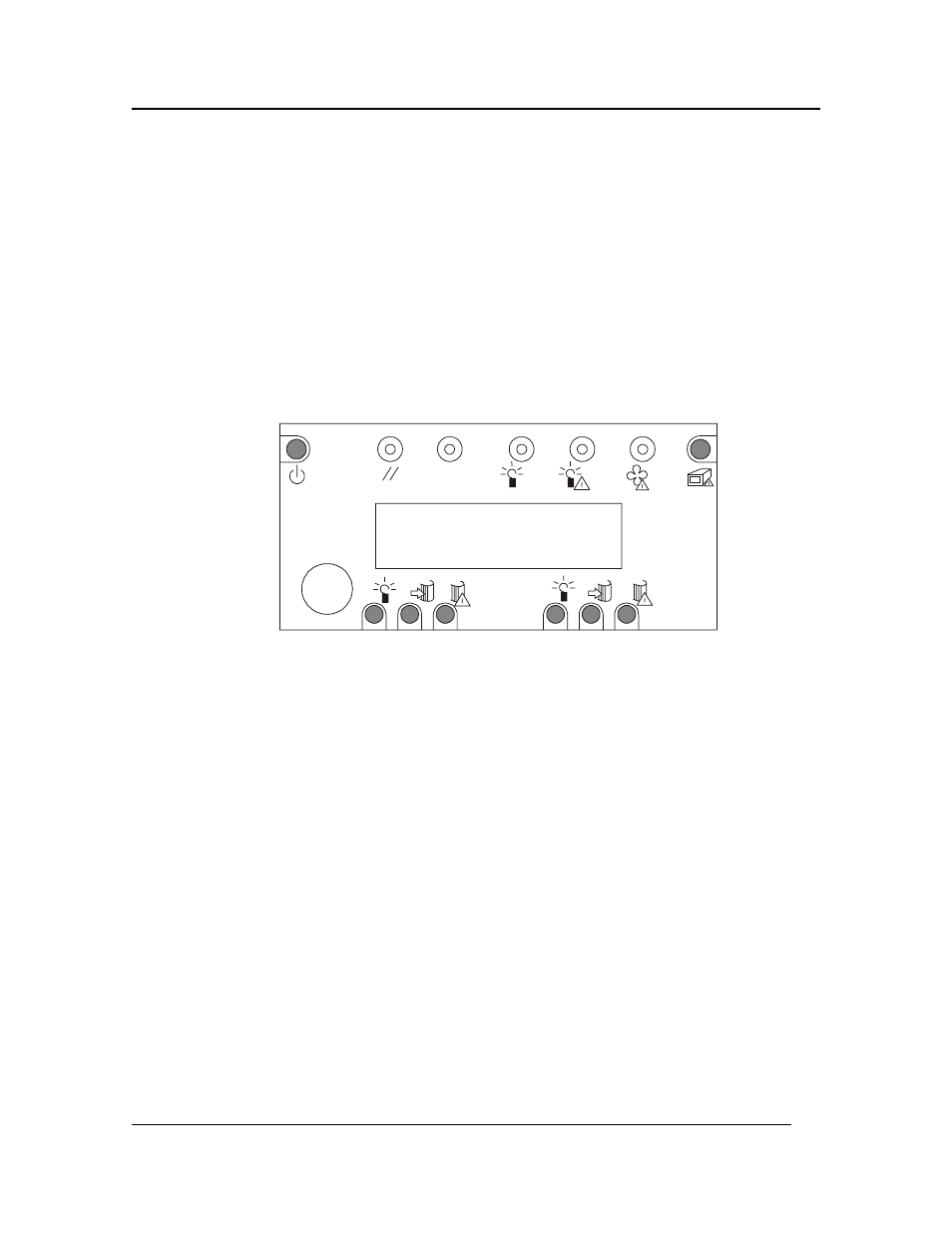

Figure 1-1. Front Panel
Table 1-1 provides the front panel power switch and its associated LED indicator definitions.
