Chapter 8: Server Management

80

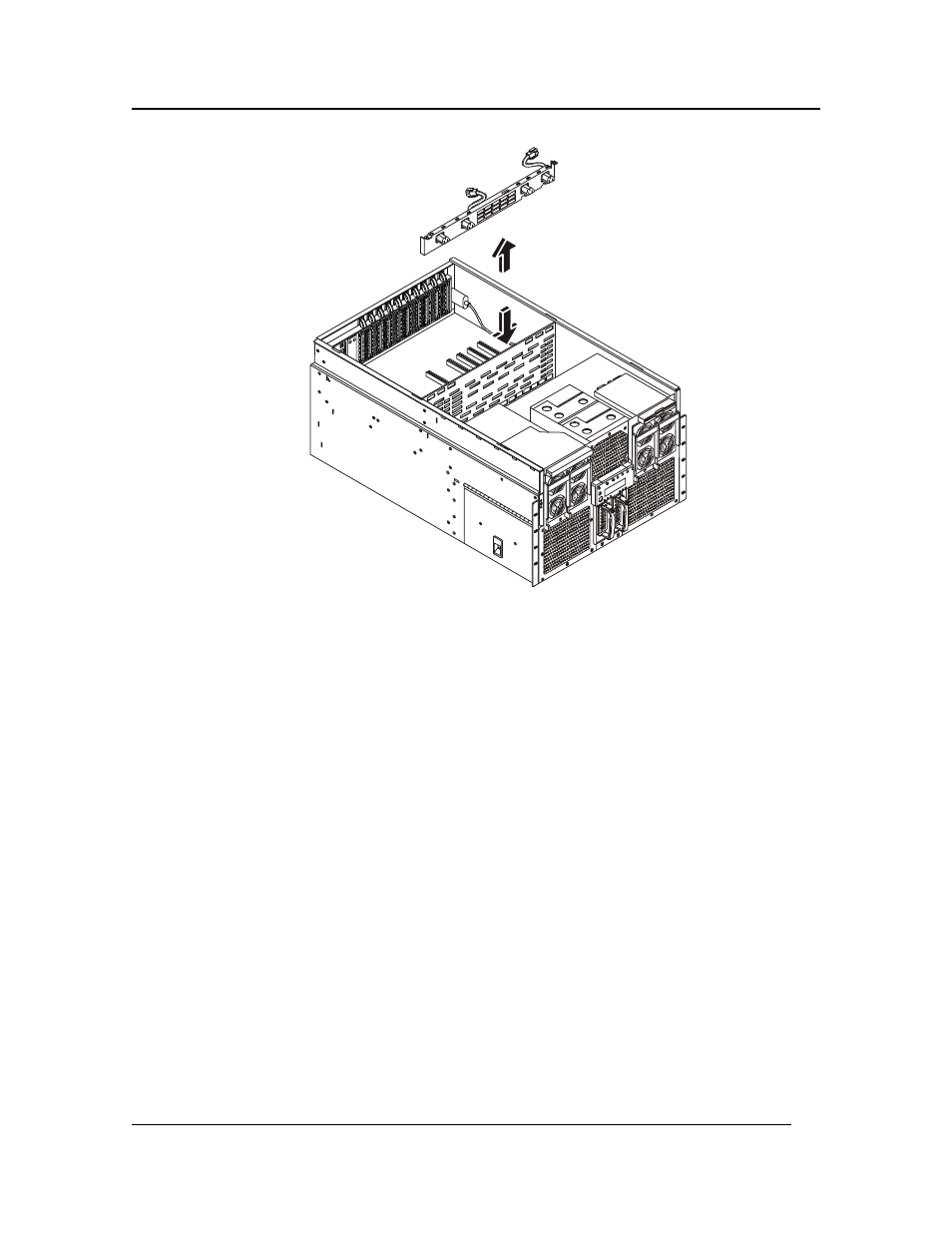

Figure 8-8. Removing the AC Distribution Bracket

13. Loosen the six captive thumbscrews securing the Power Distribution Board plastic overlay.

Remove the overlay.

14. Remove the two hot swap drives from the Hard Drive Bay.

15. Remove the four screws securing the Hard Drive Bay and pull the bay completely out of the

chassis.
