Chapter 8: Server Management
69
12. Remove all DC-DC converters from the Sideplane.

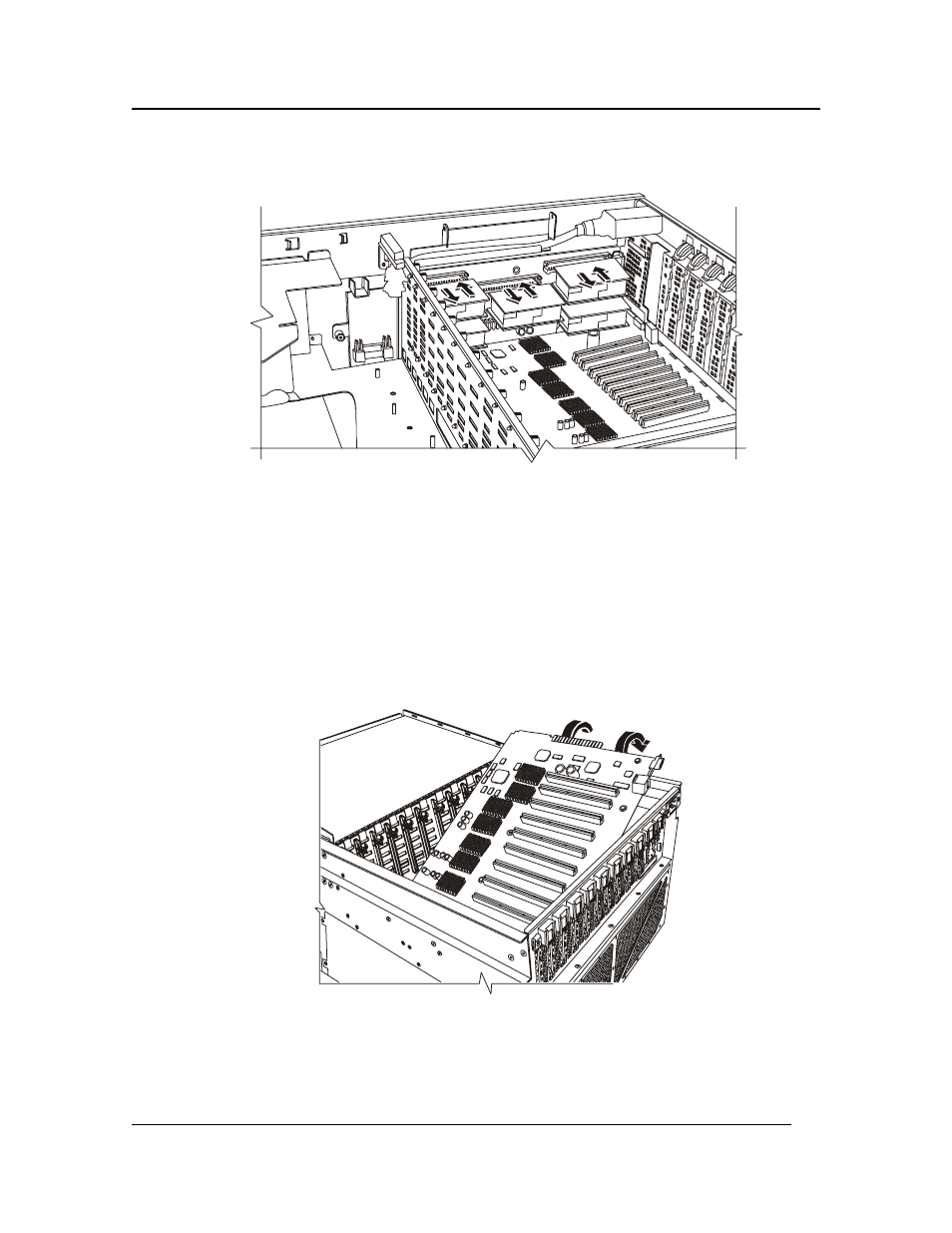

Figure 8-2. Removing the Sideplane DC-DC Converters
13. Loosen the two captive screws that hold the plastic shield over the I/O Baseboard. These
screws also secure the baseboard tray to the server chassis.
14. Remove the PCI LED cable.
15. Remove the plastic shield.
16. Remove the Internal SCSI cable for the hard drives from the board.
17. Use the two extraction/installation levers on the sides of the I/O Baseboard to pull it clear of
the connector on the Sideplane.
18. Once loose, slide the I/O Baseboard in the direction of the levers against the chassis frame.
Figure 8-3. I/O Baseboard Removal
19. Lift the connector end out of the chassis first followed by the rest of the I/O Baseboard.
20. Place on a clean ESD-protected work surface.
