Chapter 2: Opening and Closing the HP Server
16

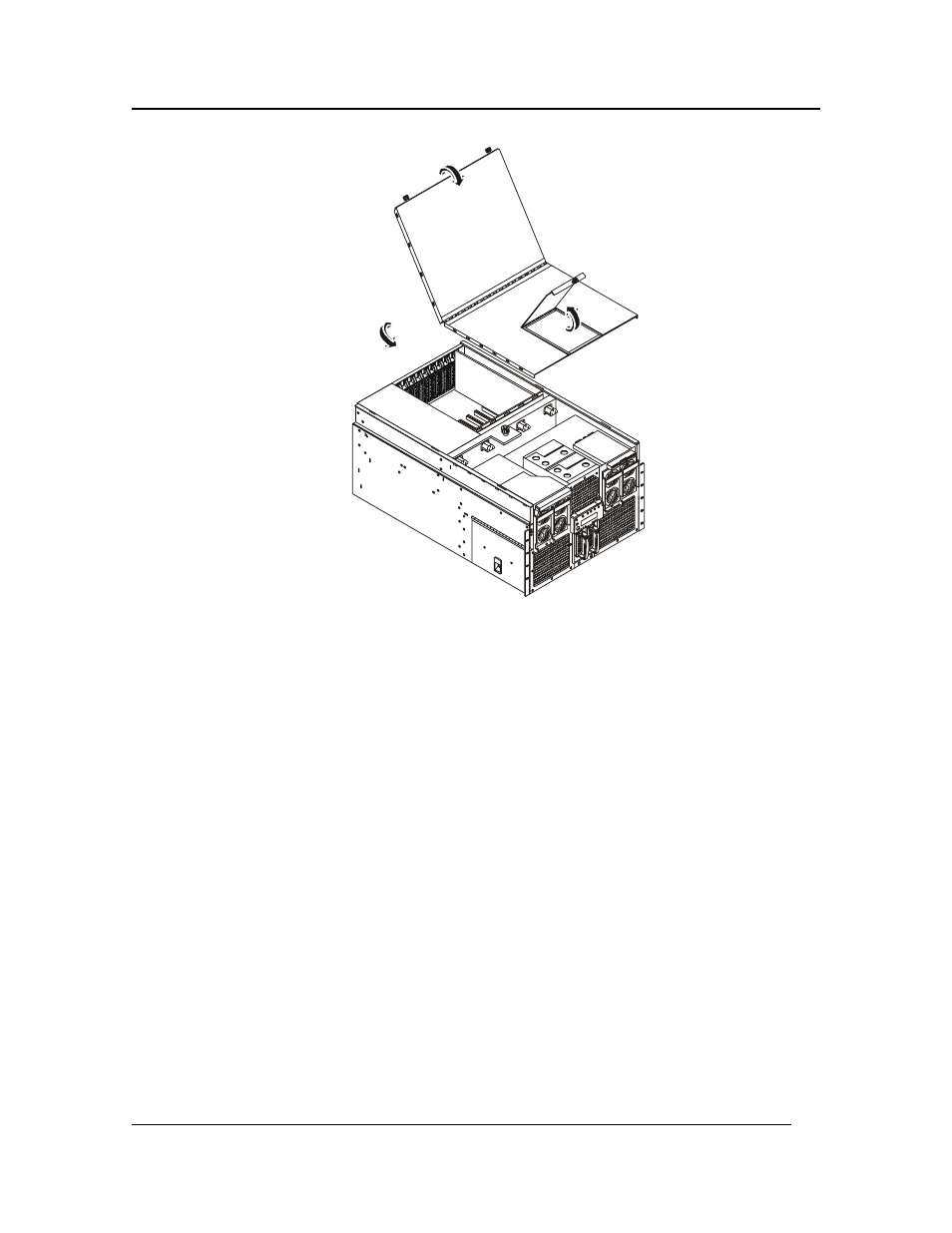

Figure 2-3. Replacing the Cover
7. Close the 120 mm fan cover and tighten the thumbscrew. If the door does not close then the
top cover hooks have not fully engaged into the chassis.
8. Replace the PCI adapter board cover and install the screw that secures it to the top cover.
9. Close the rear half of the top cover and tighten the two thumbscrews.
10. Push the chassis back into the rack.
11. Connect the keyboard, mouse, and monitor before powering up the system.
12. Power on any peripherals connected to the server that you shut down.
13. Power on the system.
