Chapter 3: Installing Fans and Power Supplies

20

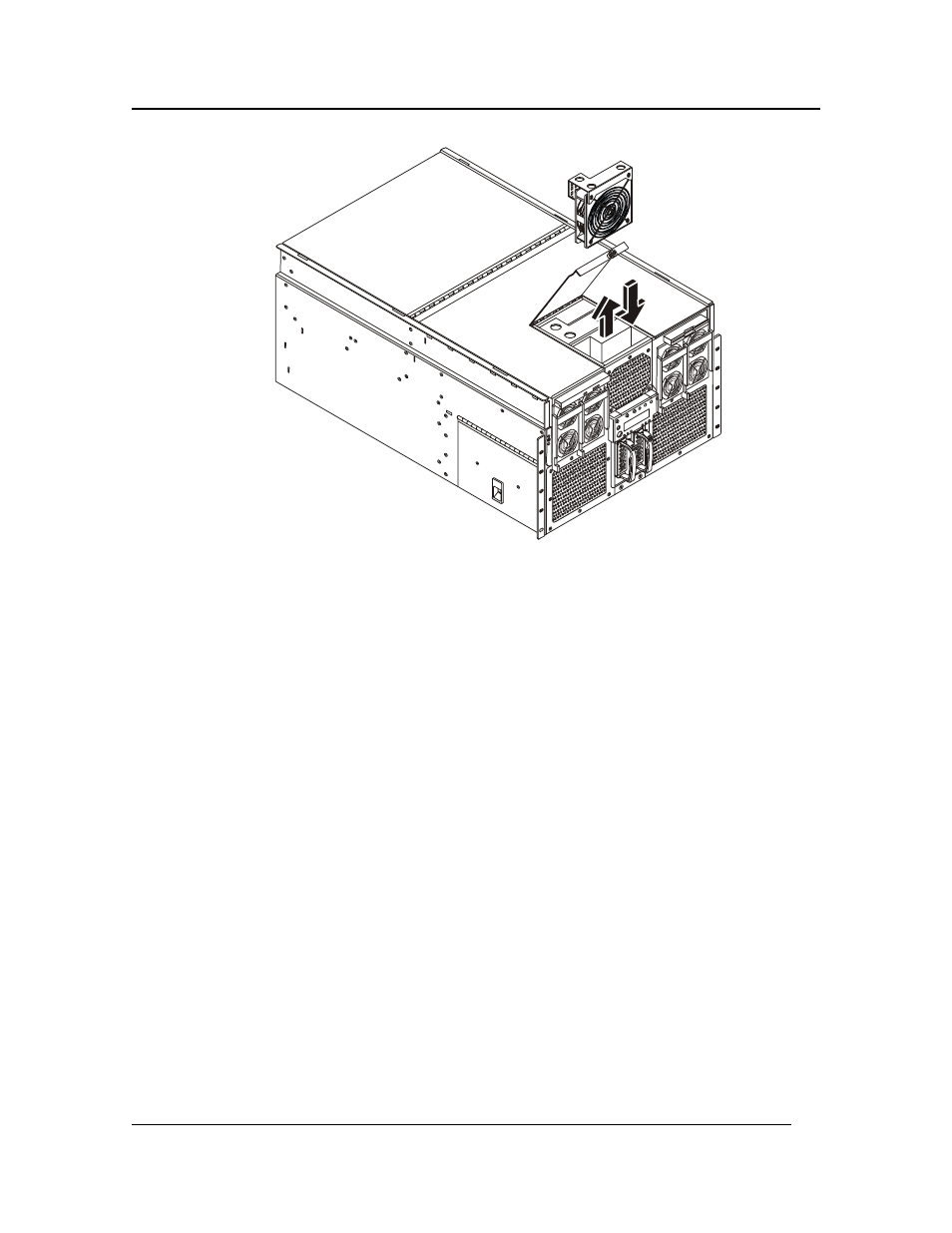

Figure 3-2. Removing the 120 mm Fans

Installing the 120 mm Fans

Follow these steps to install a 120 mm fan:

1. Slide the server out of the rack far enough to expose the fan-access door on the top of the

chassis.

2. Unscrew the thumbscrew on the front of the fan-access door and lift the door open.

3. Slide the new fan into place, with the connector oriented to engage the socket inside of the fan

enclosure.

4. Push the fan assembly firmly into the enclosure to seat the connector.

5. Close the fan-access door and tighten the thumbscrew.

6. Slide the chassis back into the rack.
