Setting Host Bus Frequencies
Jumper blocks J2H1, J2H2, and J2H3 configure the host bus frequency. The settings for all three
jumper blocks combine to yield the single frequency. By default, the frequency is set to 133 MHz.

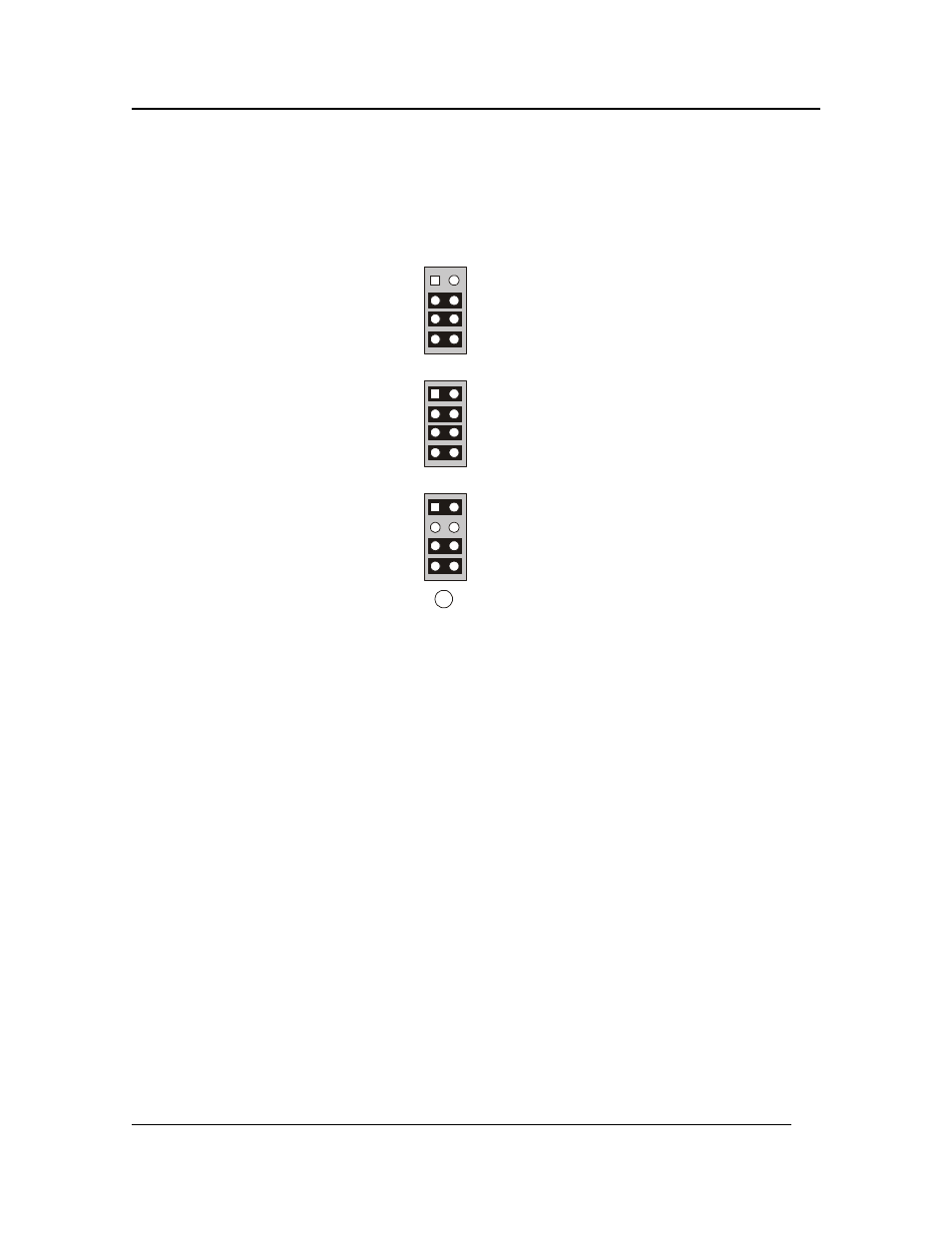

Figure A-12. Host Bus Frequency Settings
Jumper diagram labeled:
A. 133 MHz (Default Setting)
A
J 2H 3
M 0
C LK S E L
N 1
N 0
1
J 2H 2
M 4
M 3
M 2
M 1
1
J 2H 1
M 8
M 7
M 6
M 5
1
