Chapter 8: Server Management
79

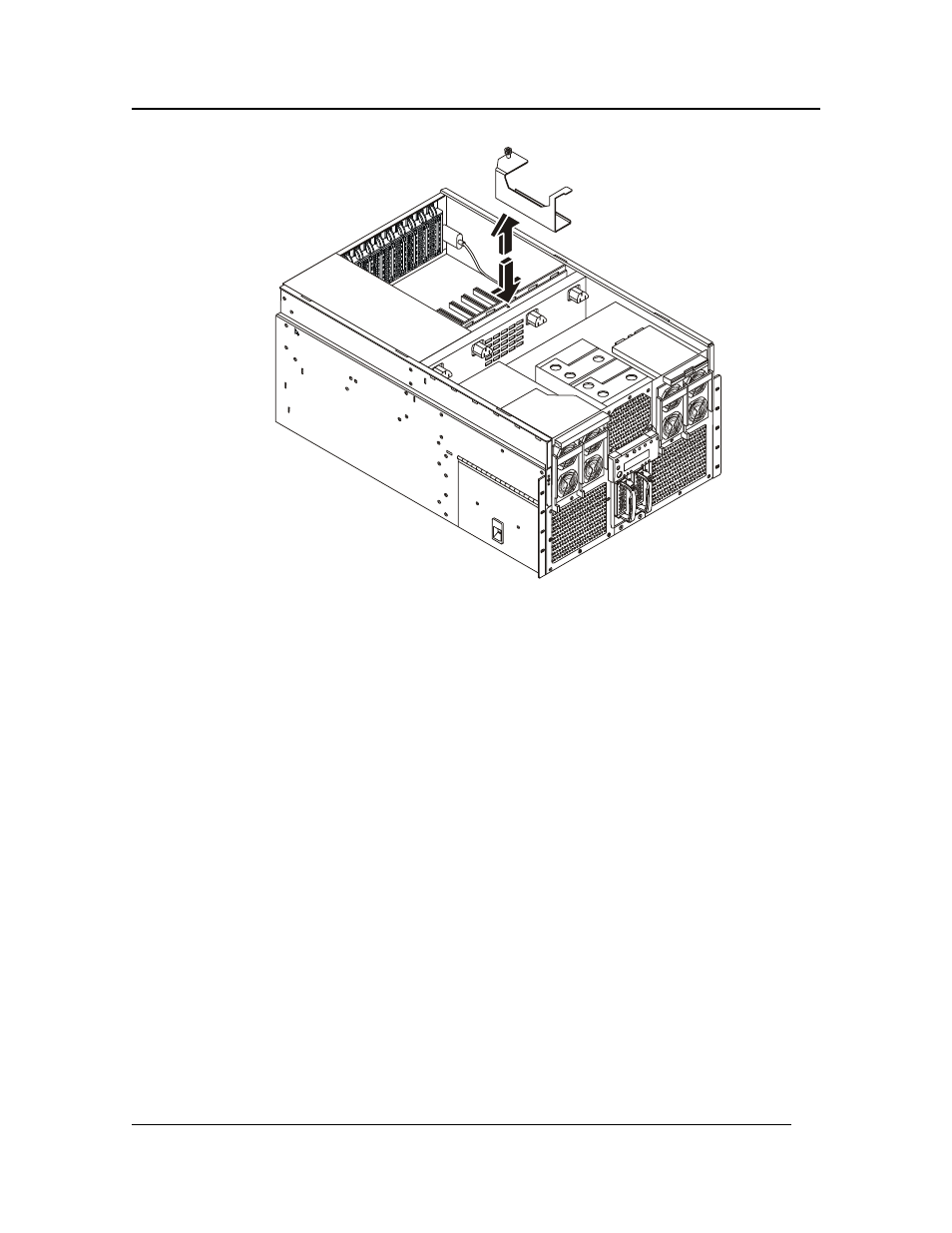

Figure 8-7. Removing the Power Distribution Board (T-Docking)’s Top Bracket
10. Remove the 12 V DC-DC converter from the top of the Power Distribution Board (T-
Docking).
11. Remove the fan, DVD, and floppy drive cable power connector from the Power Distribution
Board by squeezing the lock tab and carefully pulling the connector upwards.
12. Loosen the two top captive screws from the AC Power Distribution Bracket. Lift the AC
distribution bracket out of the way and disconnect the AC input cables from both connectors.
