Including the BMC in the JTAG Chain
Jumper block J8D1 lets you include or exclude the BMC in the JTAG chain. By default, the BMC is
excluded from the JTAG chain.
1
A
1
B
J8D1 J8D1

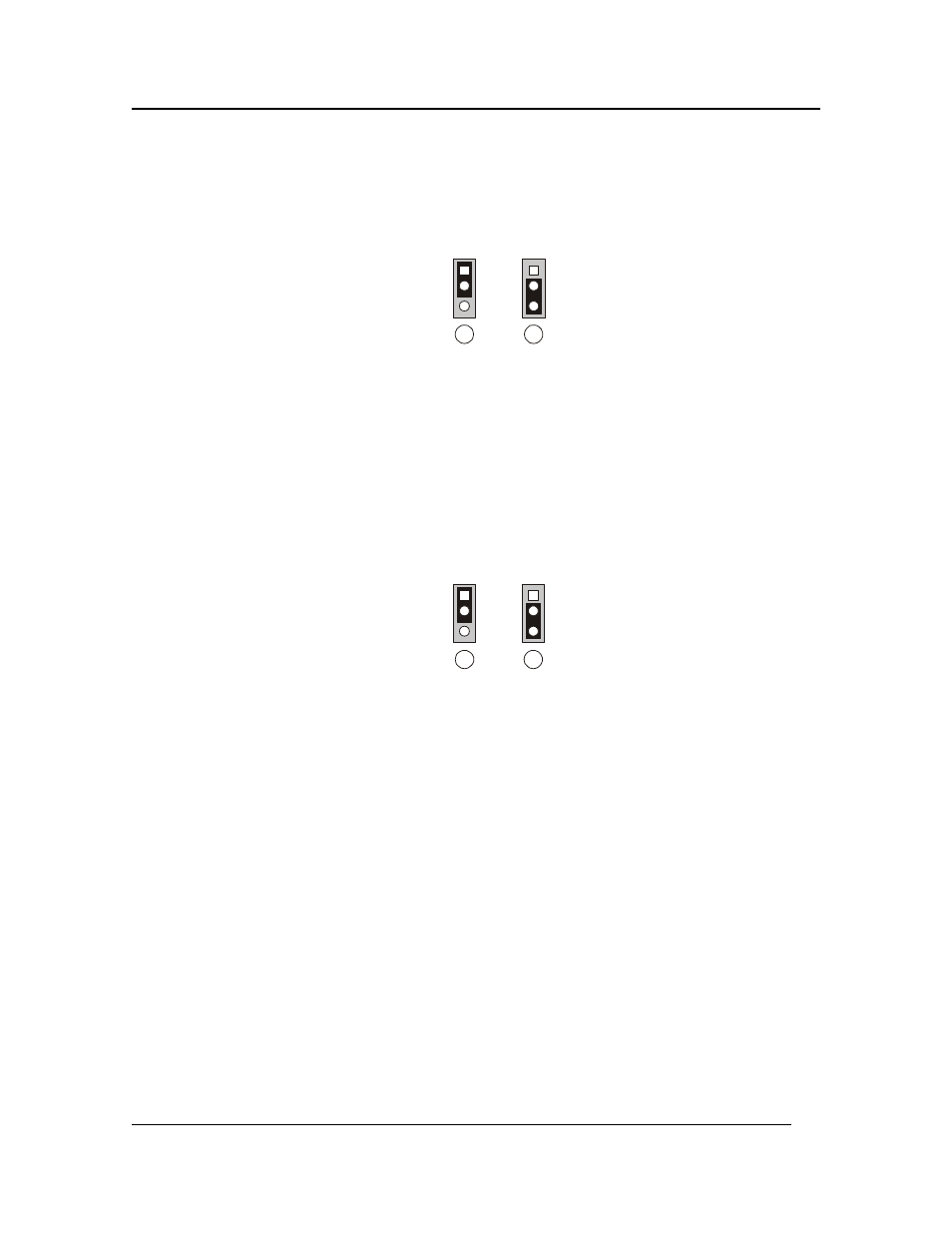

Figure A-22. BMC Jumper Settings
Jumper setting diagram labeled:
A. Excludes BMC from the JTAG Chain (Default Setting)
B. Includes BMC in the JTAG Chain
Overriding the hardware PCI Hot Plug Interlock
Jumper block J1A1 lets you override the hardware PCI hot plug interlock switches. By default, the
jumper setting allows for the slot’s interlock switch and/or the PID’s GPIO27 to set the interlock
value.
1
A
J 1A 1
1
B
J 1A 1
Figure A-23. Hardware PCI Hot Plug Interlock Override Jumper Settings
Jumper settings diagram labeled:
A. Allows the PCI Hot Plug Interlock Switch and/or the PID’s GPIO27 to
Set the Interlock Value (Default Setting)
B. Overrides the Hardware PCI Hot Plug Interlock Switch
