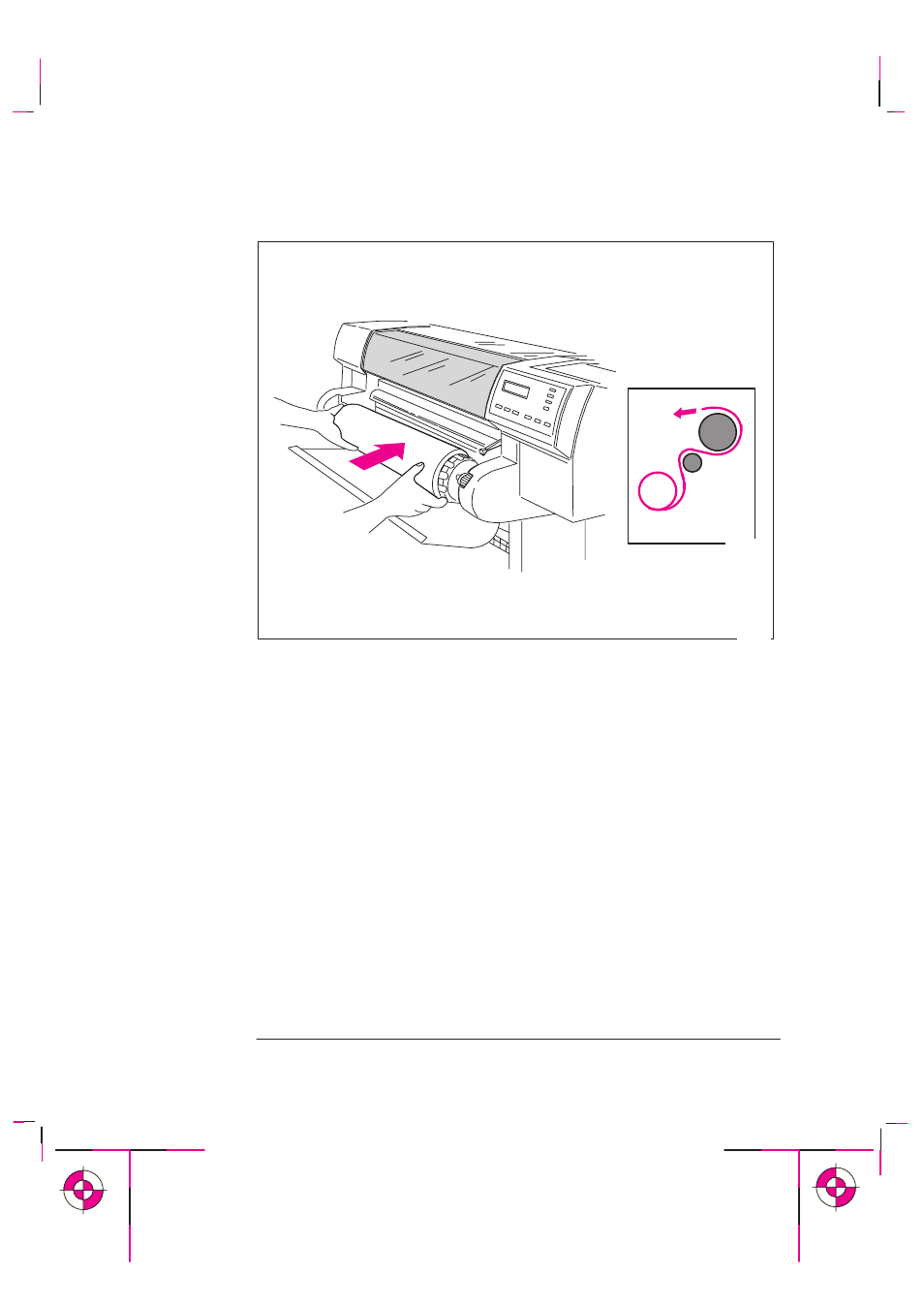

5 Insert the spindle so that the large media stop (A) is to the right and the
small endcap (B) to the left. Push in firmly on both ends. Be sure the
media remains flush against the media stop.
A
B
A
Media path
1837
0017
The relationship of the media to the roller must be as shown in the
diagram above.
6 Check the leading edge as it unwinds from the spool. If it is uneven, trim it as
explained in step 7. Otherwise go to step 8.
Setting Up the Printer
Task 3: Load Media
