Page 25

NOTE:

For MSL Series libraries, the library controller board must be installed in the right-hand slot

of the card cage area (upper card cage area for the four-drive models). The remaining slots on the

library do not support the connections that are required for the library controller board to operate

correctly.

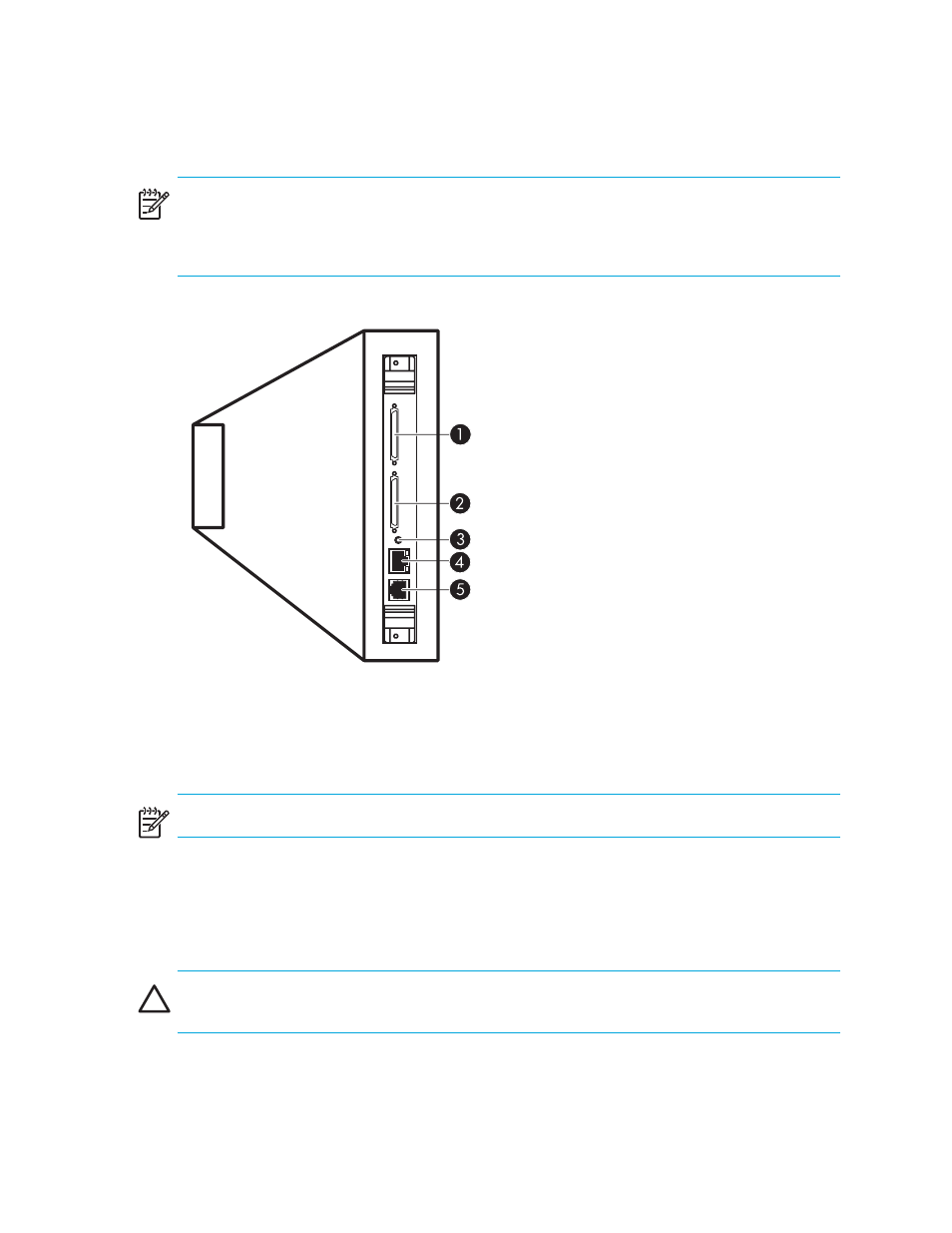

Figure 7

Library controller board connections

NOTE:

The mode toggle switch is not active.

Factory-Defined Accessory PCI Slots

MSL Series tape libraries contain one or two rear-access card cages, and one or two 32-bit,

33-MHz Compact PCI backplanes (see

). These backplanes contain the plug-in connectors

for a library controller board, and up to five optional HP-defined PCI add-in cards.

CAUTION:

Use of non-HP qualified PCI option cards can damage your MSL Series library and will

void product warranty. Follow all operating instructions shipped with the optional card upgrade kit.

SCSI VHDCI connector

Mode toggle switch

Ethernet RJ-45 connector

Serial RS232 connector
