Optional Fibre Channel Card
168
Connectors and Indicators

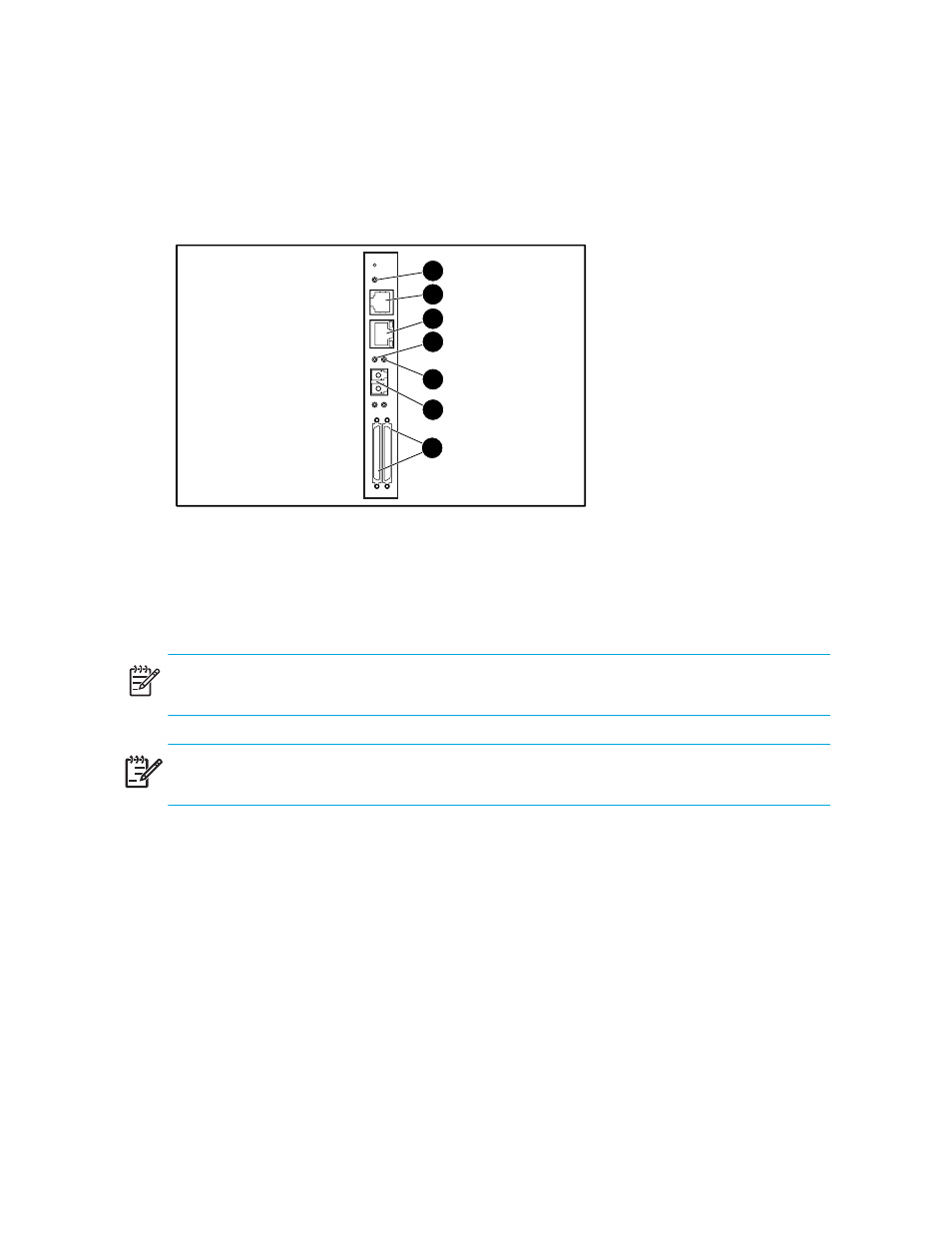

shows the connectors and indicators for the optional Fibre Channel board.
Figure 82
Connectors and indicators
NOTE:
The Fibre Channel board serial cable is not the same as the library controller board serial
cable. The serial pinouts are different for each board, requiring different cables.
IMPORTANT:
The Fibre Channel card can be reset by using a paper clip or other sturdy tool to
push the reset switch shown above the Power LED in
Power Indicator
The Fibre Channel card has one power LED X. LED definitions:
•
Green - power has been applied
•
Yellow - POST is in process or processor problems present
Serial Port
The Fibre Channel card has one serial port Y. The serial port can be used to access the
Serial/Telnet user interface, which is used to locally manage and configure the Fibre Channel card.
1
Power LED
2
Serial RJ-11 connector
3
Ethernet RJ-45 connector
4
Fibre Channel activity LED
5
Fibre Channel link LED
6
FC-LC connector
7
SCSI VHDCI connector (2)
