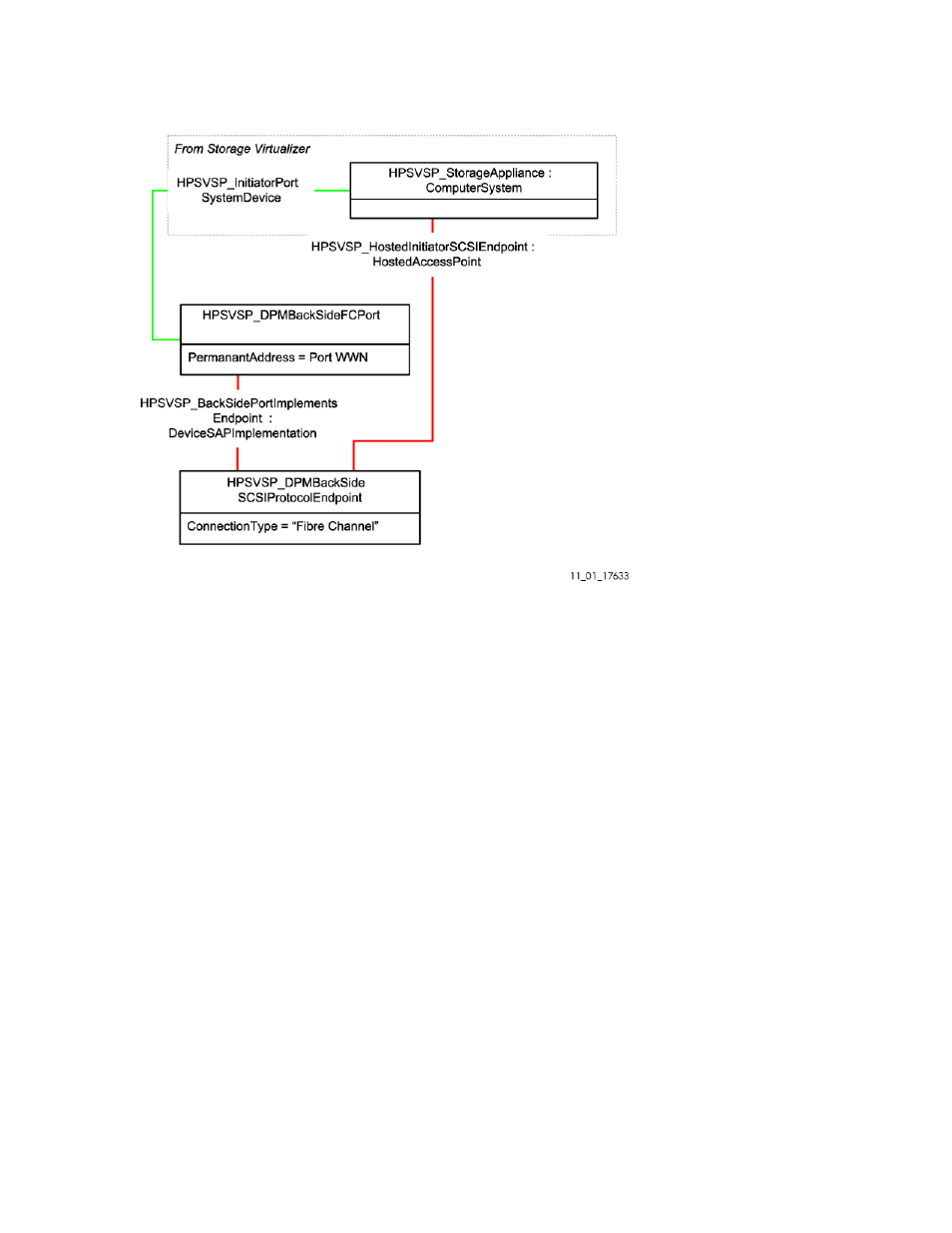

Object model diagram

Object model summary

Typically, this profile is used to report all ports. However, since this profile is being used to report on
DPM switch ports, and the unused DPM switch ports have not be assigned to the initiator or target
role, this profile cannot be used to report these unused ports.

Additional details

Health and fault management considerations

Health information for the profile is described in the HPSVSP_DPMFCPort OperationalStatus property.

Classes

HPSVSP_DPMBackSideFCPort : CIM_FCPort

Class introduction

This class represents the FCPort on the back size of the DPM, between the DPM and the array (and
back-end LUs).

FC Initiator Ports

260
