Page 86

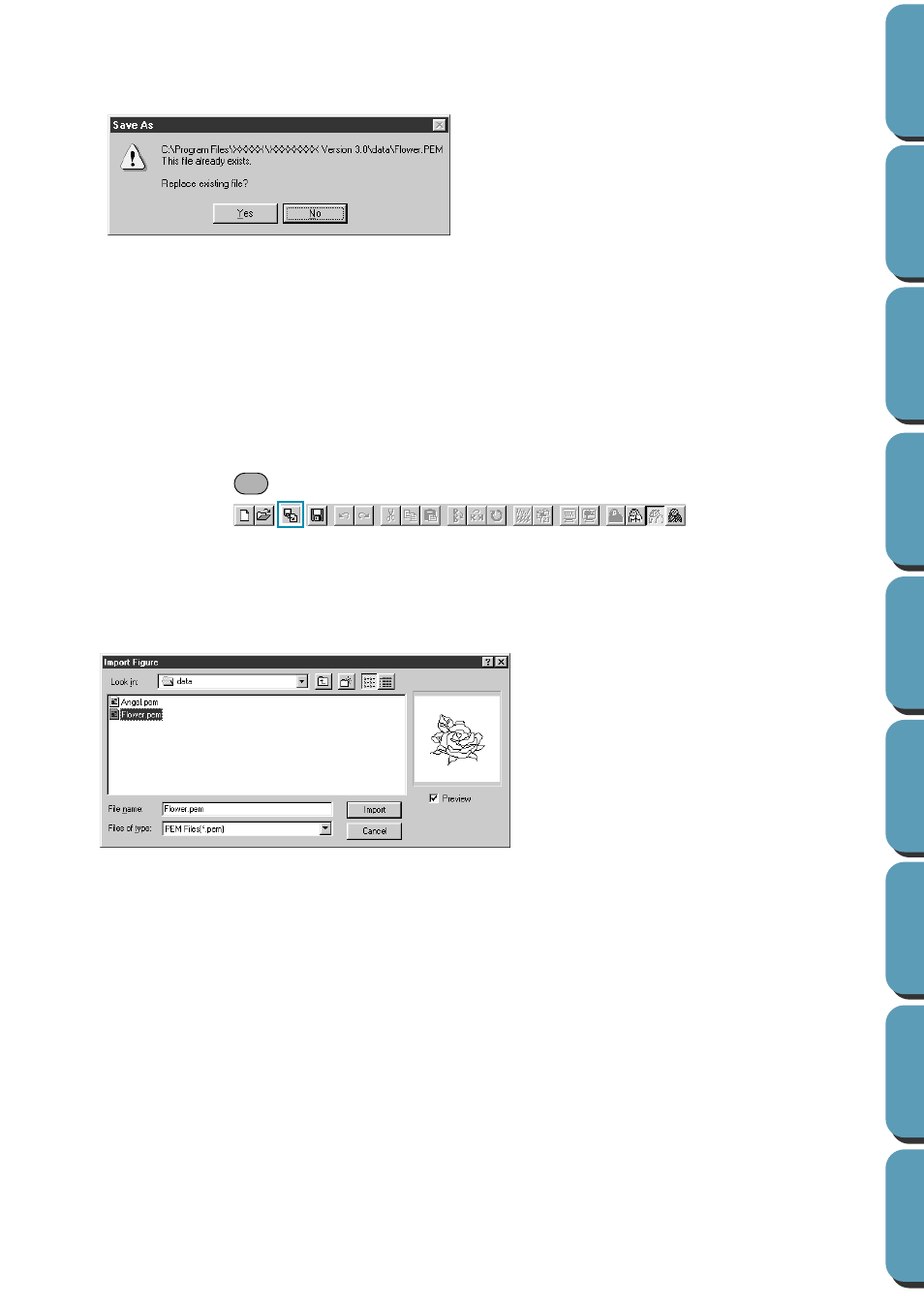

If the new file name already exists, this dialog will appear.

See also:

“Save” above
NOTE:
Saved

.pel

and

*.pem

files can be opened with Version 1.0 of this software when

you select “PEM Version 1.0” as the File Type”. Note however that some informa-
tion could be lost.

■

Import Figure

Purpose:

Adds a

*.pem

file to your Design Page (available only in Stage 3).

Shortcut key:

Toolbar:

Operation:

Click

File

, then

Import Figure

A dialog similar to this will display.

The selected pattern will be added to your Design Page.

See also:

“Open” on page 75

◆

Click

Yes

to overwrite.

◆

Click

if you do not want to overwrite

the existing file.

◆

Select the drive, the folder and the
file name.

◆

Click

to open.

◆

Click

Cancel

to exit.
