NOTE:
If an object is larger than the embroidering area or if an object is positioned so that it does not
completely fit within an embroidering area, the error message “Please change the object size or
position.” is displayed instead of this dialog. After the object causing the error appears selected,
change its size or position. (If more than one object causes the error message to appear, the
objects will appear selected in the sewing order.)

■

Design Page Property

Purpose:

Allows you to change the size of the Design Page and the color of the Design
Page and the Design Page background.

Shortcut key:

No shortcut key for this function

Toolbar:

No button for this function

Operation:

Click

Option

, then

Design Page Property

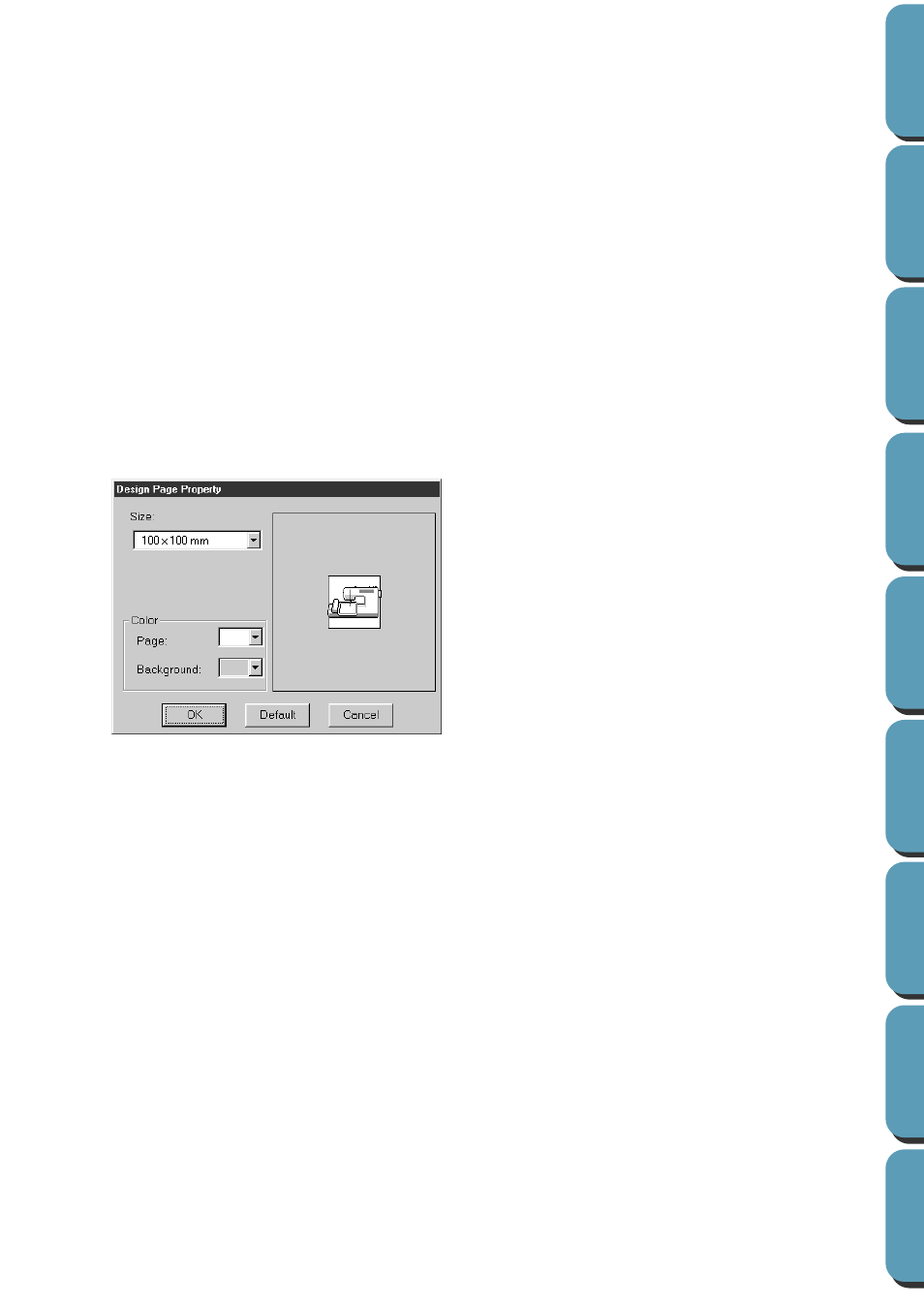

The

Design Page Property

dialog

displays.

The Design Page sizes 130

300 mm, 300

130 mm, 100

172 mm, and 172

100 mm, indi-

cated by “*”, are used to embroider extra-large designs using a special embroidery frame attached
to the sewing machine at three installation positions. Check that that you have the extra-large
embroidery frame and that these extra-large designs can be embroidered using your sewing
machine.

See also:

“Select System Unit” on page 176

◆

Select the size by clicking the appropriate
radio button.
Select the Page color or the Background color
by clicking its selector arrow, then by clicking
the color.

•

The preview area allows you to view the set-
ting changes. The sewing machine picture
shows the direction of the Design Page
(frame) on the machine.

◆

Click

to confirm.

◆

Click

Default

to go back to the default setting.

◆

Click

Cancel

to exit.
