49

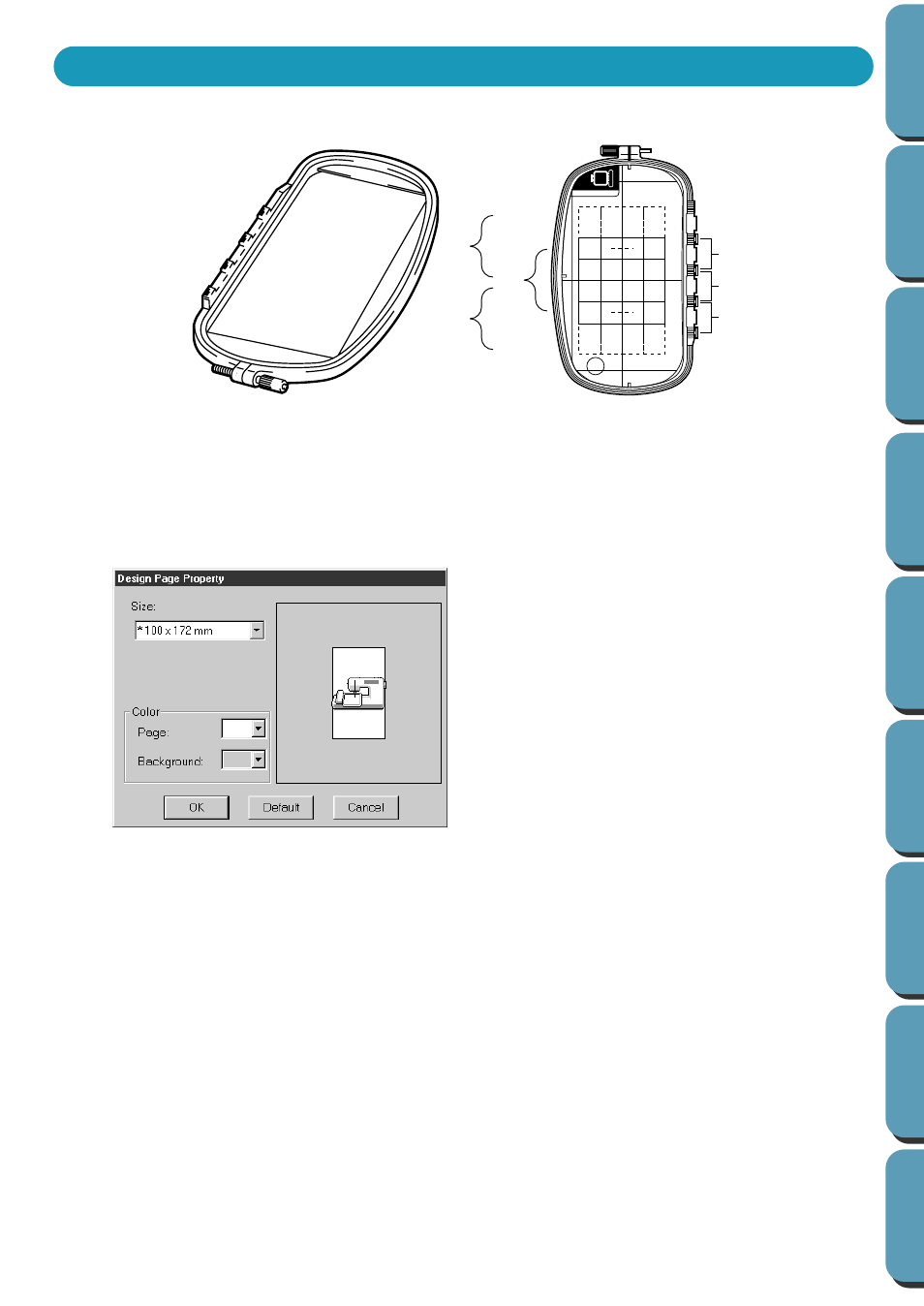

By attaching the enclosed (or optional) extra-large frame (130
×
300 mm or 100
×
172 mm) at each of
its three installation positions, extra-large designs can be embroidered.
Although the size of the pattern that can be embroidered using an extra-large frame is 130
×
180 mm (or
100
×
100 mm, depending on the sewing area of the embroidery machine), first determine which of the
three installation positions (indicated as a, b, and c in the illustration above) the extra-large frame will be
installed at and determine the orientation of the data.
■
Select the Design Page size
1
In Layout & Editing, click Option, then Design Page Property.
NOTE:
The Design Page size shown above is not available in Design Center since the maximum sizes for
a single pattern are 130
×
180 mm and 100
×
100 mm.
◆
From the Size selector, choose a
Design Page size of 130
×
300 mm,
300
×
130 mm, 100
×
172 mm, or 172
×
100 mm.
(Settings for extra-large frames are
indicated by “*”.)
•
Choose the appropriate setting after
checking the size of the embroidery
frame available for your machine.
Creating data for the extra-large frame
a
b
c
a
b
c
ABC
