Page 157
148
exceed the size of the Design Page.
The minimum value is 1 mm (0.04 inch).
■
Numerical Setting-Rotate
Purpose:
Rotates the selected pattern numerically.
Shortcut key:
No shortcut key for this function
Toolbar:
No button for this function
Operation:
1
Select one or more patterns.
2
Click Edit, then Numerical Setting, then Rotate.

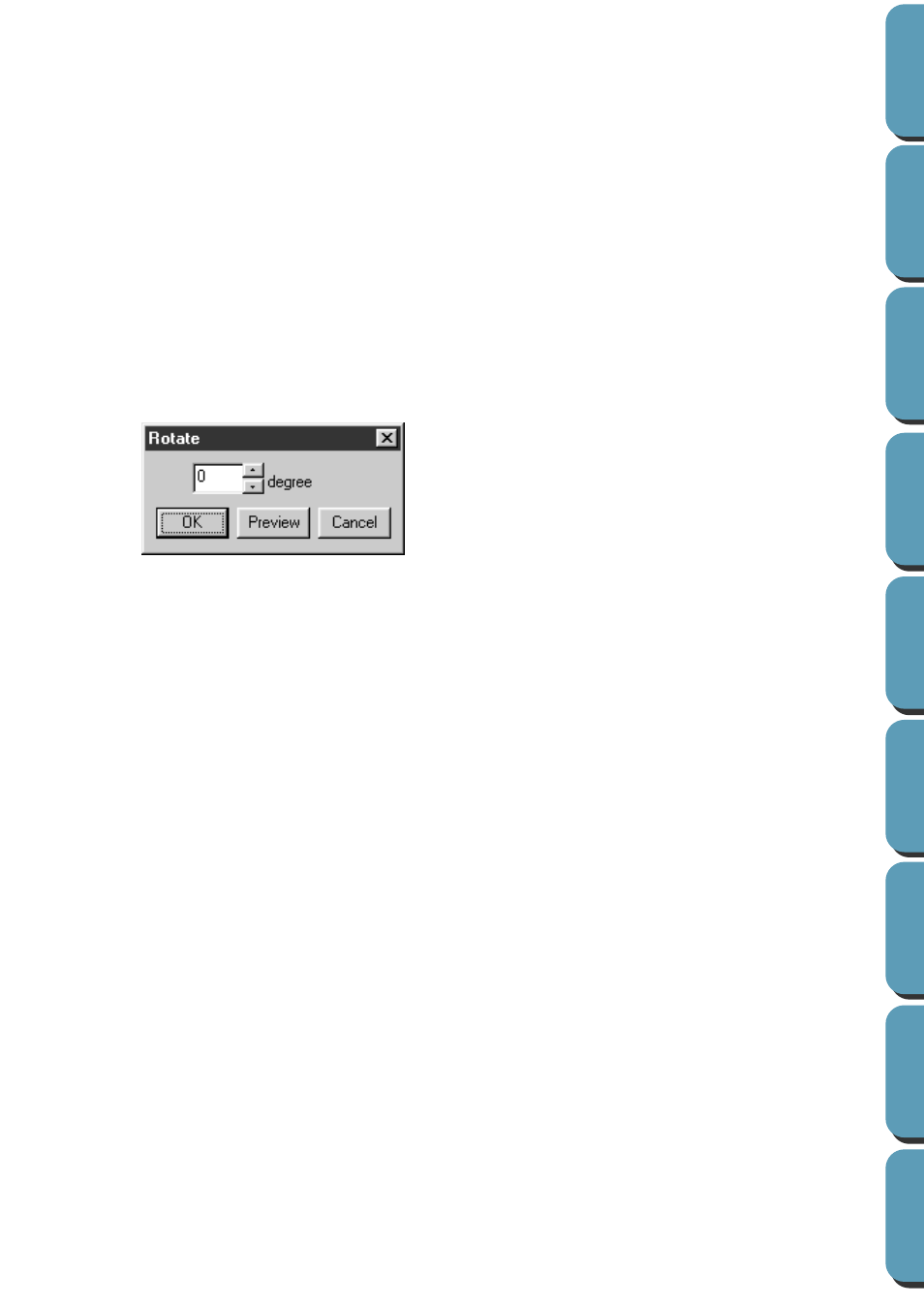

The Rotate dialog appears.
NOTE:
The range of values that can be entered is between 0 and 359 degrees, in 1degree increments.
■
Align
Purpose:
Aligns the selected patterns as indicated.
Shortcut key:
No shortcut key for this function
Toolbar:
No button for this function
Operation:
1
Select the patterns.
◆
The desired rotation angle can be entered
by either typing in a value or clicking the
arrows to select the desired value.
Select 0 degree to leave the pattern
unchanged.
◆
Click OK to confirm.
◆
Click Preview to view the pattern rotated
the specified angle in the Design Page.
◆
Click Cancel to exit without making any
changes.
