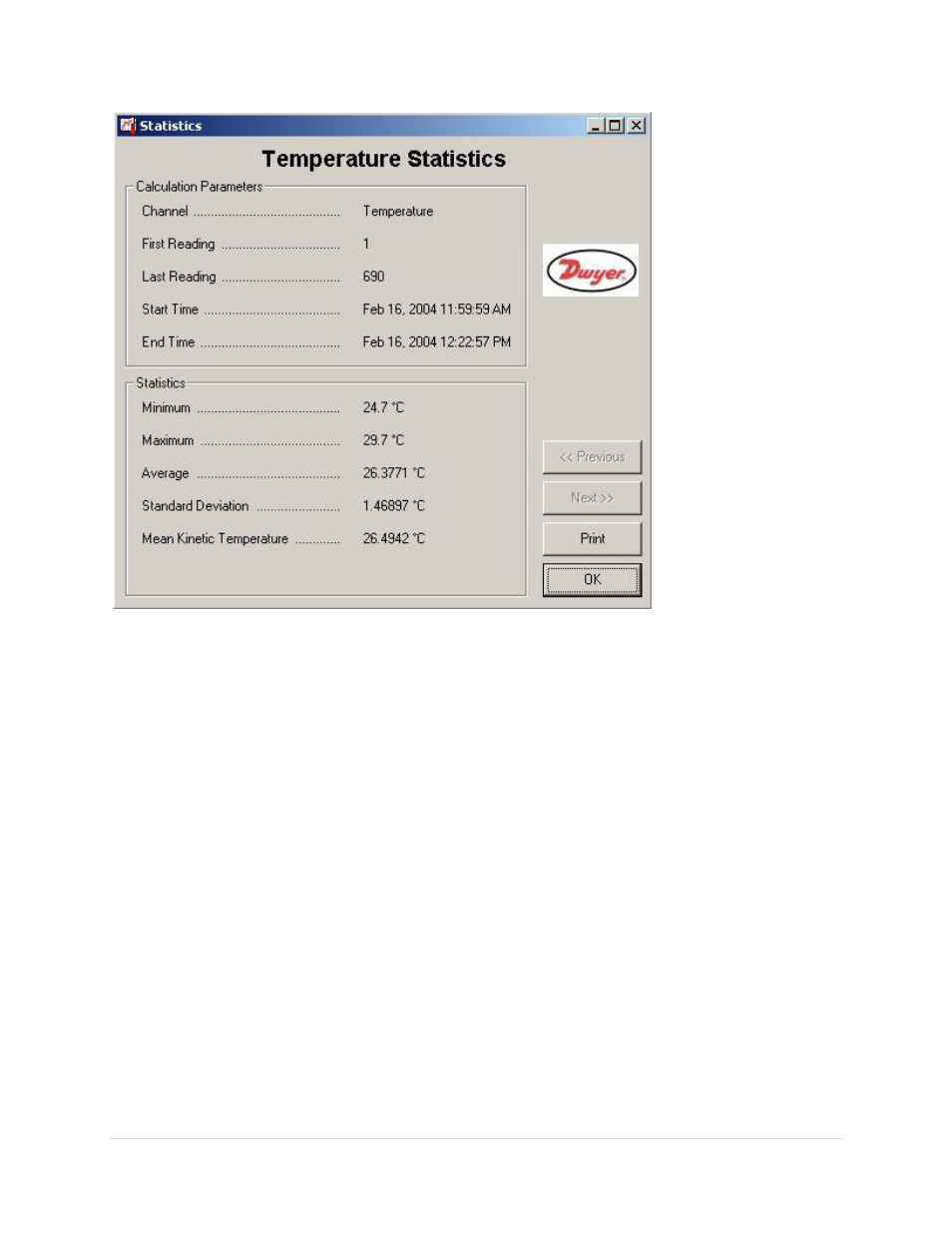

For data recorders with more than one channel, the Next and Previous buttons will be available. This
allows the user to quickly view the statistics on each channel. In the example for the ISDL-R10,
activating the Next button will update the dialog box with the statistics for the humidity channel.
Graph Menu: Set Cooling Flags
Select the
Set Cooling Flags command to allow the user to set the cooling flags on the temperature
channel of the selected dataset. Checking the "Enable Cooling Flags" checkbox enables the Flag
Settings to be entered. When the "Autoflag at Reading Data" checkbox is checked and the Save
button is clicked, cooling flags will be drawn automatically the next time data is read.
