Series DPML-4 LCD Digital Panel Meters
Specifications - Installation and Operating Instructions
Bulletin G-61
DWYER INSTRUMENTS, INC.
Phone: 219/879-8000 www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A. Fax: 219/872-9057 e-mail: [email protected]

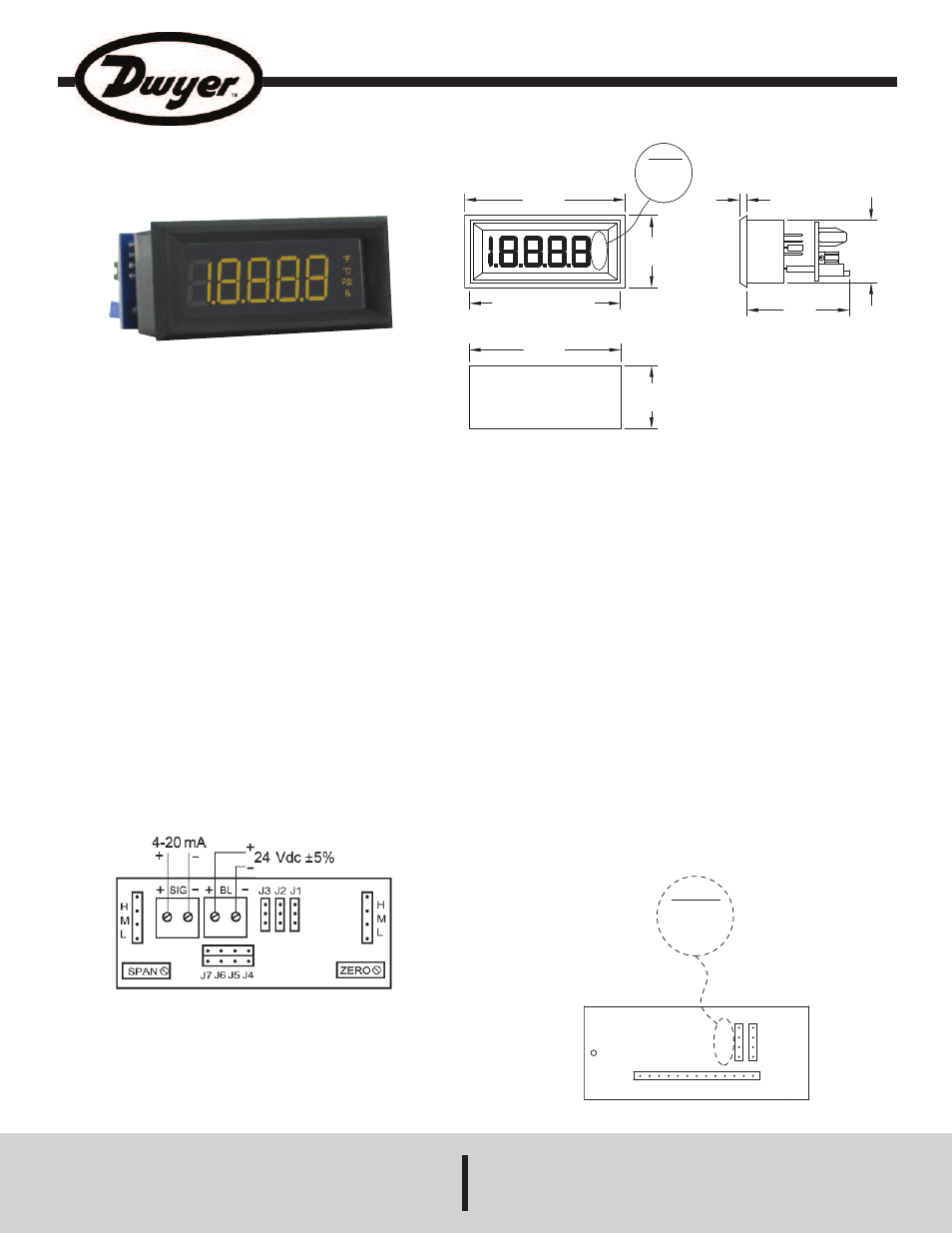

The Series DPML-4 LCD Digital Panel Meter offers a large 4-1/2 digit
LCD display with a choice of red, amber or green segments for easy
viewing at a distance. The meter accepts loop powered 4-20 mA DC
input. Standard features include field engineering units and decimal
point positions. A separate 24 VDC power supply is required for the
operation of the back light.
SPECIFICATIONS
Inputs: 4 to 20 mA.
Input Impedance: 300Ω nominal.
Accuracy: ±(0.1% FS + 2 count).
Power Supply: Powered by control loop.
Backlight Power Supply: 24 VDC @ 35 mA typical.
Span and Zero: Adjustable (±19999 counts).
Display: 4-1/2 digits, 7 segments, 0.45˝ (11.4 mm) H.
Decimal Points: 4-position, user selectable.
Engineering Units: DPML-XXX: °F, °C, %, PSI; DPML-XXXP: V, A,
KW, PF.
Polarity: Automatic, “-” displayed.
Operating Temperature: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 158°F (-20 to 70°C)
Mounting: Snap-in bezel mount.
Connection: Screw terminals.
Conversion Rate: 3 per second.
Warm-Up: 10 minutes typical.
Weight: 2 oz (56.7 g).
Agency Approvals: RoHS.
OPERATION
Selecting Engineering Units
Four sets of jumper pins are located in the back of the meter, between
the meter and the adder board. Move the jumper to fit over the
appropriate pins which correspond to the desired engineering unit. See
Figure 2.
P Models
°F
°C
PSI
%
V
A
KW
PF
1-9/64
[29]
2.390 REAR HOUSING
[60.6]
2-13/32
[61]
1
[25.4]
2-35/64
[64.5]
1/8
[3]
63/64
[25.1]
1-5/8
[41.1]
PANEL CUTOUT FOR
WINDOW MOUNTING
INSTALLATION
The Series DPML-4 is designed to snap into a 2.4˝ (61 mm) W x 1˝ (25.4
mm) H panel cutout. No additional hardware is required.
WIRING
The unit is powered by a 4-20 mA loop and the screw terminal for wiring
is located on the back of the adder board marked with + SIG -. The
backlighting requires a 24 VDC power supply and should be connected
to terminals identified with + B/L -.
Note: If backlight supply is not loop supply, ground should be referenced
together.
FIGURE 2
FIGURE 1
Backlight setting min/max display values
1
*
P Models
V
A
KW
PF
1 13
°F
°C
PSI
%
