Option Limit Switch
Open as described before

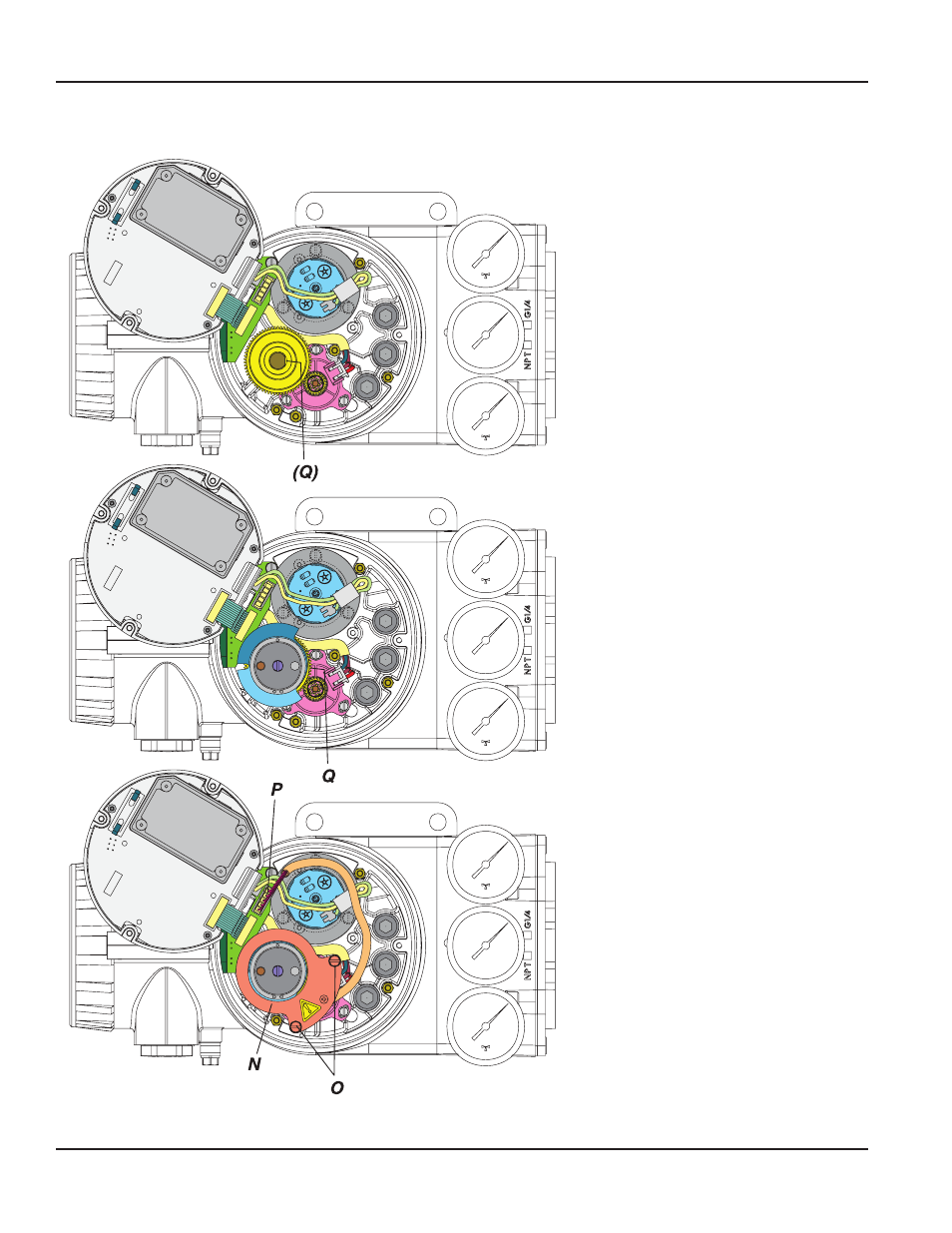

Sensor Part:
During mounting it must be observed
that the set screw
Q is screwed onto
the flat part of the shaft.
Set in place the Sensor part with the
switch vanes onto the steering shaft
(with the big cog wheel) and secure
with a sidewise set screw
Q
(Hexagon socket screw SW2).
The set screw is accessible from the
right side, if the 1 marking is above
(and the 2 marking is below).
Set in place the contact assembly
and the cover
N and secure with
both screws O .
With inductive sensors, the switching
vanes must not touch the sensors.
Insert the cable at plug
P .
