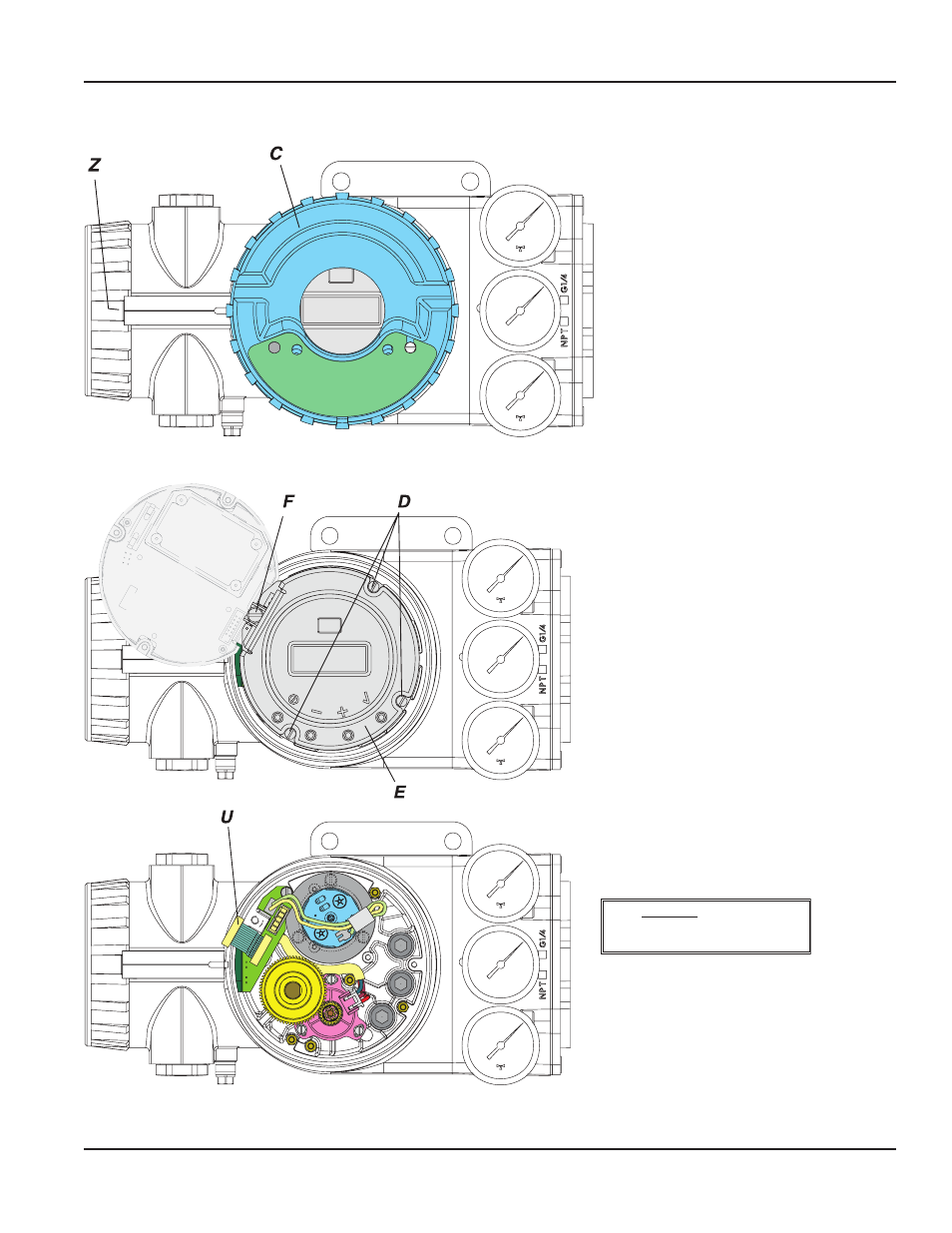

Open Housing
Unscrew cover safety lock Z until
cover C is completely free.
Then unscrew cover C .
Tilt Electronic Forward
Unscrew the 3 screws D , and the
round electronic E can be tilted
forward.
Should the electronic have to be
removed completely, then unscrew
also screw
F , and pull out plug U
from the electronic.
When removing (and when re-
inserting), the correct position of
the flat cables must be observed.
Electronic E detached.
Upon exchange of the electronic E,
the angle calibration and an
Autostart must be performed!
