Badger Meter SRD/SRI Valve Positioners User Manual
Page 57

Option Boards—Additional Inputs / Outputs
Open as described before.

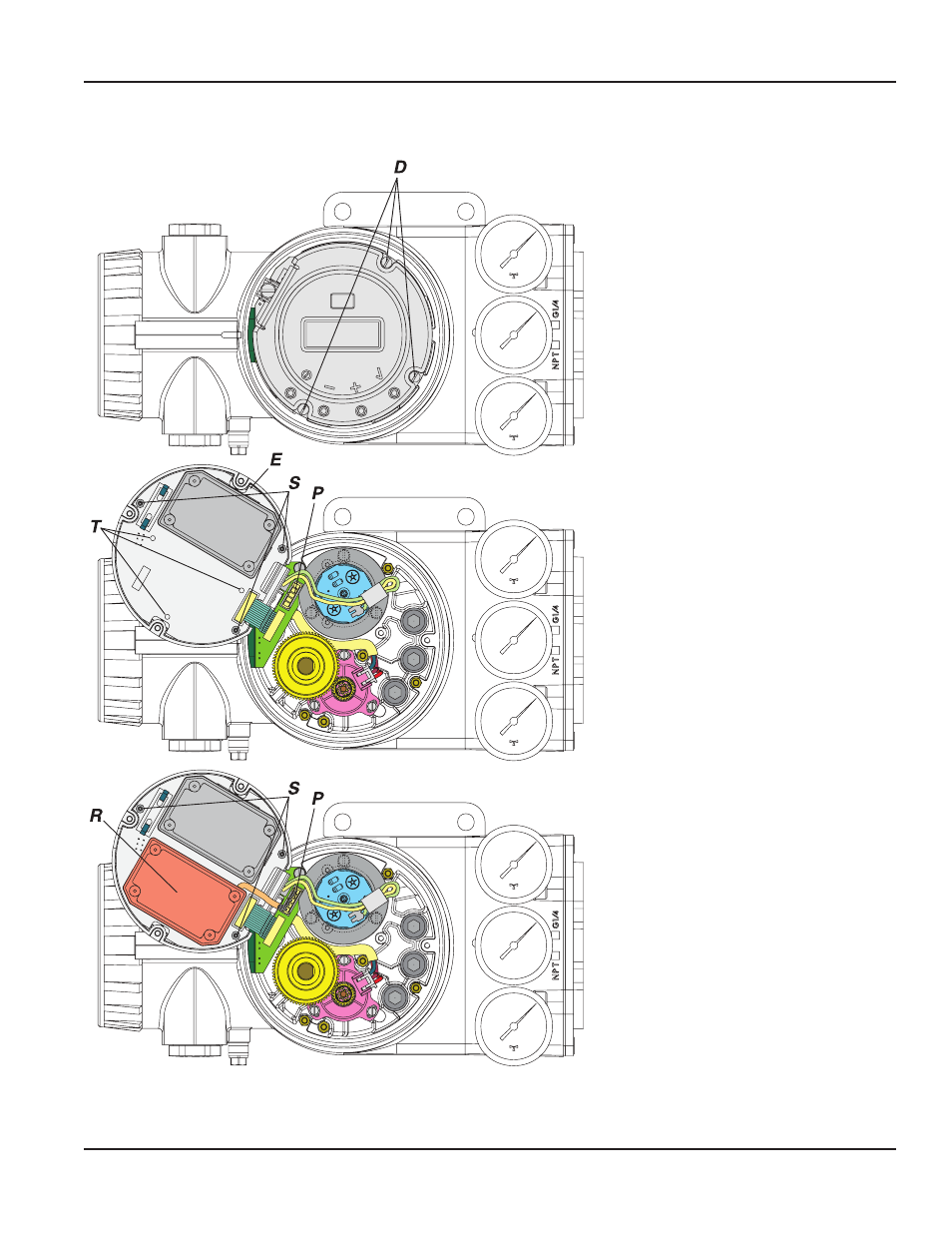

Such an additional module R is at-
tached from the “User Side” of the
electronic
E with 3 screws T .
For removal (or insertion), the round
electronic
E must be taken out of
the plastic shell.
Unscrew the 3 screws
S to do this.
Insert the new module onto the
round electronic, from the User side
screw in the 3 screws
T , place the
round electronic
E into the plastic
shell and secure with 3 screws
S .
Clip-in the cable of the additional
module into the retaining clamps
and attach plug
P .
Page 57
Maintenance
August 2014
POS-UM-00009-EN-02
