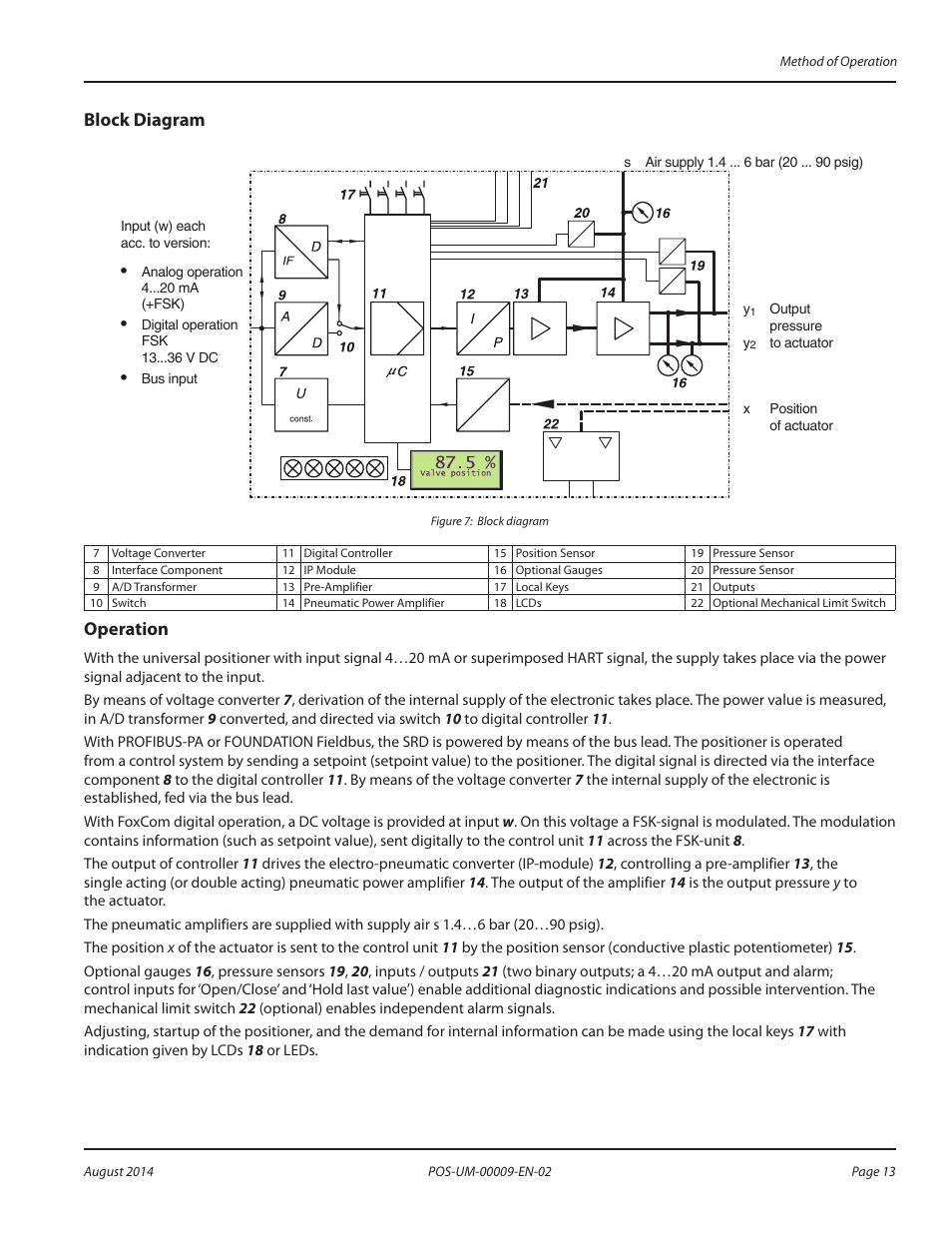

Block diagram, Operation, Block diagram 13 operation 13 – Badger Meter SRD/SRI Valve Positioners User Manual
Page 13
