appenDiX a - WiRinG DiaGRaMs
Use foil shielded cable in all installations. Ground the foil shield to the chassis ground terminals
provided on the meter. The chassis ground is the only point the shield should be grounded. Re-
fer to the meter operator’s manual for additional wiring and shielding information.

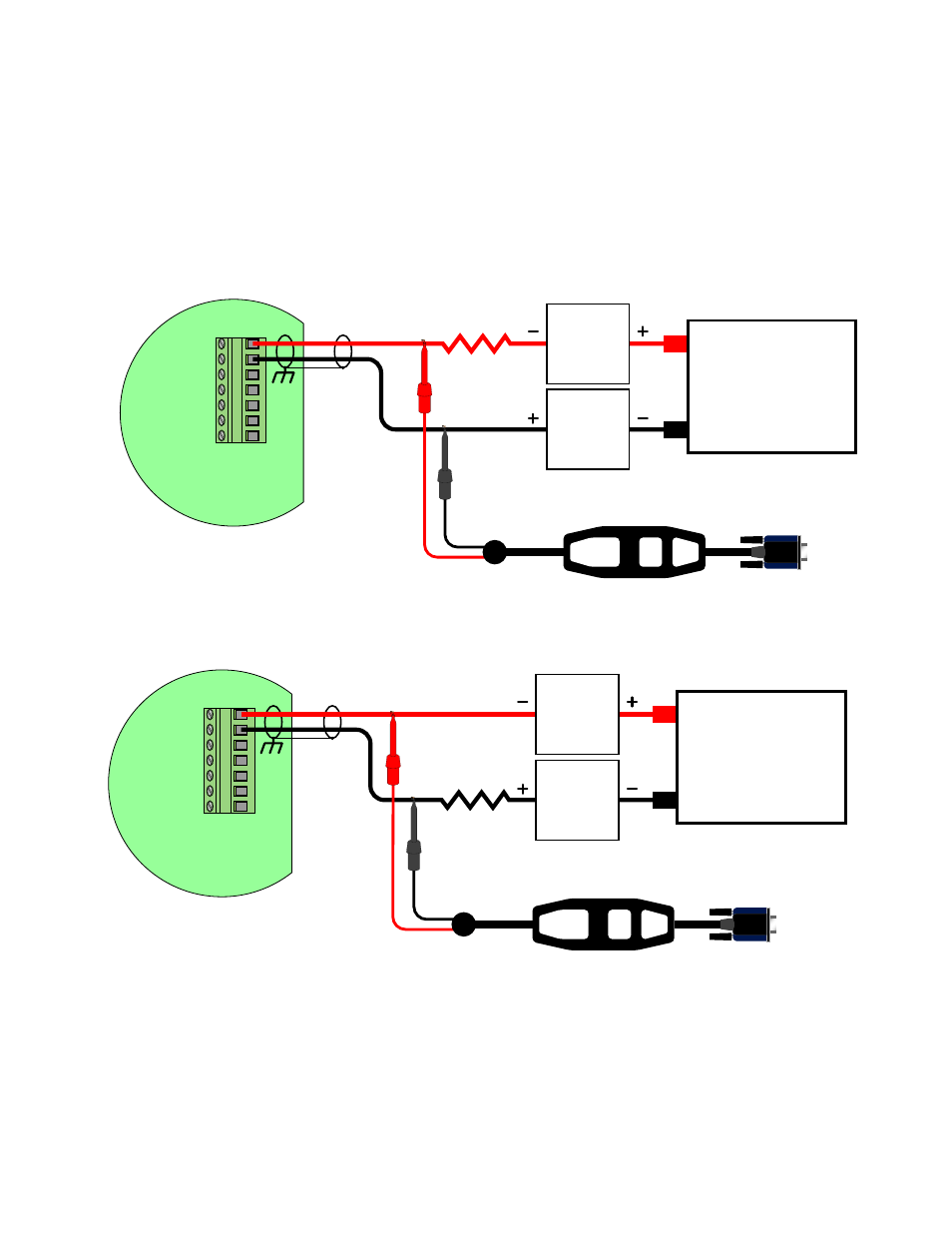

The wiring diagrams illustrated below are for installations where no 4-20 mA pressure sensor is
used.
4-20mA+
4-20mA-
EP RTN
EP PWR
EP OUT
EP IN
NC
FLOW
INDICATOR
- OR -
CONTROL
SYSTEM
FLOW
INDICATOR
- OR -
CONTROL
SYSTEM
250 7
POWER
SUPPLY
24 VDC
HART MODEM
SERIAL PORT
(To Computer)
4-20mA+
4-20mA-
EP RTN
EP PWR
EP OUT
EP IN
NC
250 7
POWER
SUPPLY
24 VDC
FLOW
INDICATOR
- OR -
CONTROL
SYSTEM
FLOW
INDICATOR
- OR -
CONTROL
SYSTEM
HART MODEM
SERIAL PORT
(To Computer)
