The Main sCReen

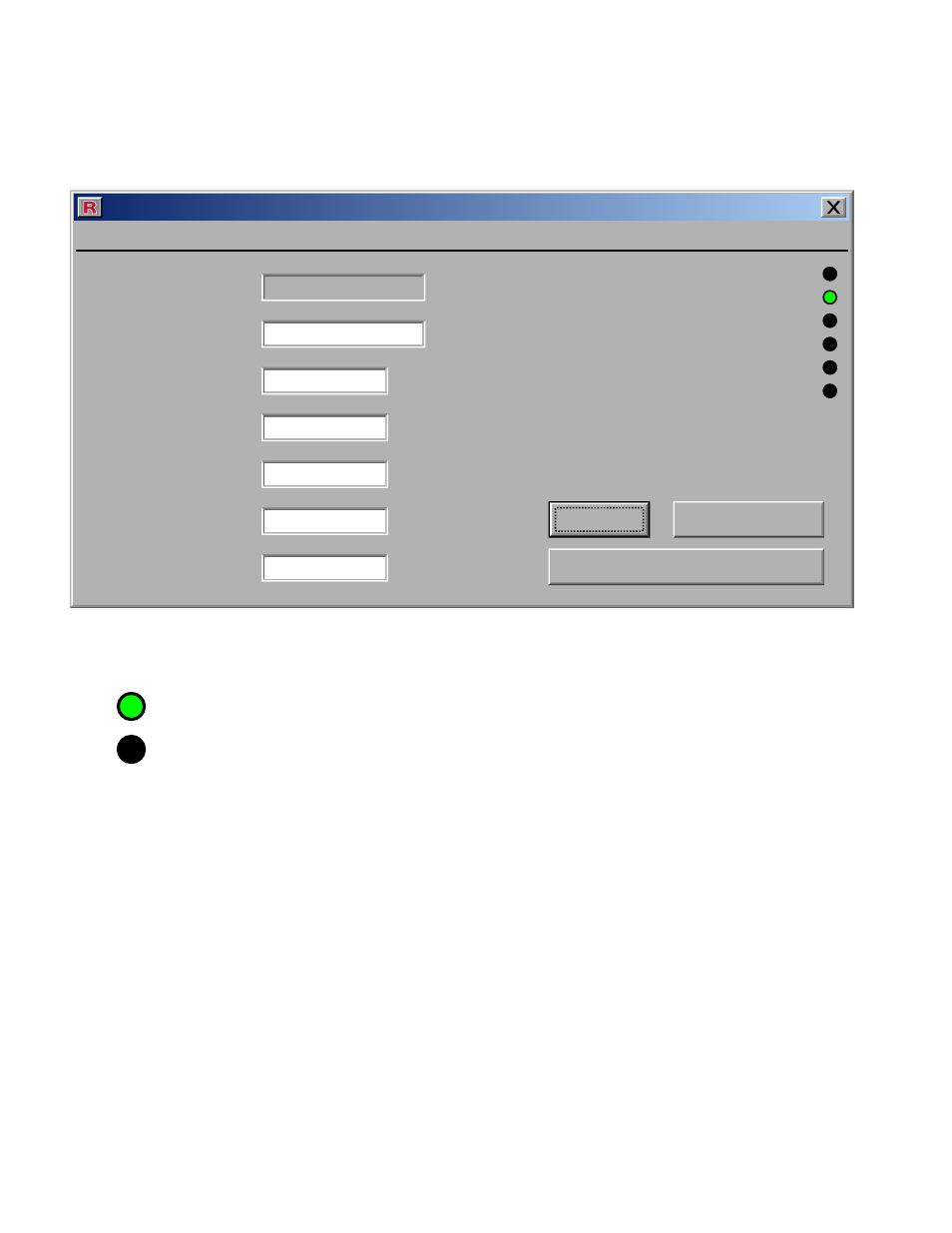

The Racine HART Interface main screen displays basic meter measurements and status
indicators. The main screen also provides menus that can be used to view and change meter
settings.
Racine Federated HART Interface Utility
FL_METER
0
4
0
72
0
RWG15
Tag:
PV (Volume)
Model Number:
Analog Output Current:
Percent of Range:
Process Temperature:
Process Pressure:
ft3/min
mA
%
degF
psi
Connect Connect Update
Begin Continuous Display Update
Continuous Screen Update:
Meter In-Service:
Edit Mode:
Fixed Current Value:
Configuration Changed, Not Saved:
Password Protection:
Tools About Com Port Save/Restore Configuration Edit/In-Service Configure Meter
status indicators
active or selected (Green)
inactive or not selected (black)
• Continuous screen update - This indicates that the data displayed on the main screen
will be updated continuously at a rate of twice a second. Clicking “Begin the Continuous
Display Update” button enables continuous screen update. Clicking “End the Continuous
Display Update” button disables continuous screen update. Making changes to the meter is
much faster if continuous screen update is disabled.
• Meter in-service - This indicator is lit when the meter is in-service. No setting can be
changed when the meter is in-service.
• edit Mode - This indicator is lit when the meter is in edit mode. Settings in the meter can be
changed while in edit mode.
NOTE: The analog output current cannot be changed while the meter is in edit mode. Therefore, put the me-
ter back in-service after making changes to the meter.
