power up - The settings of the totalizer are stored in non-volatile memory. Therefore, if the
totalizer is running (totalizing) when the meter losses power, it will begin to run again when
power is restored. The value of the totalizer is saved in non-volatile memory once every minute
or whenever the totalizer is stopped or zeroed. When the totalizer is running and power is lost,
the totalizer can loose a maximum of one minute’s data.
Changes to the totalizer settings are saved immediately to non-volatile memory so it is not
necessary to use the “Save Configuration” command to protect the setting. The “Restore Con-
figuration” command has no effect on totalizer settings. The “Restore Factory Configuration”
command will turn off the totalizer but it will not zero the totalized value.
lCD Display format - The totalized value can be display on meters equipped with an LCD.
See the “LCD Display Mode” section of this document for instruction an how to display the
totalized value on the LCD. When displayed on the LCD, the totalized value will be shown on
the top line of the display and the unit is shown on the bottom line. The totalized value will be
formatted in fixed notation for values up to and including 999,999. For values of 1,000,000 and
greater, the number is formatted in exponential notation. For example, the number 999,999 will
be displayed as 999999 and the number 1,000,000 will be displayed as 1000e3 (1000 3 ). The
maximum totalizer value is 1000e34 (1000 34 ). The totalizer will roll-over to zero after it reaches
this value.
Changing Selected PV or PV Unit - If the user changes the selected parameter or the prima-
ry variable (PV) unit in the “Primary Variable” dialog box, then the totalizer will be stopped and
the totalizer value set to zero. If the “LCD Display” mode is set to display the totalizer value and
the primary variable is changed to something other then volumetric, mass, or standard flow,
then the display mode will automatically be changed to display the primary variable.
property Tables
Property tables can be imported and exported using Property the Tables dialog box. To bring
up the “Property Tables” dialog box, click the “Tools” pull-down menu on the Main screen and
then select “Property Tables”.

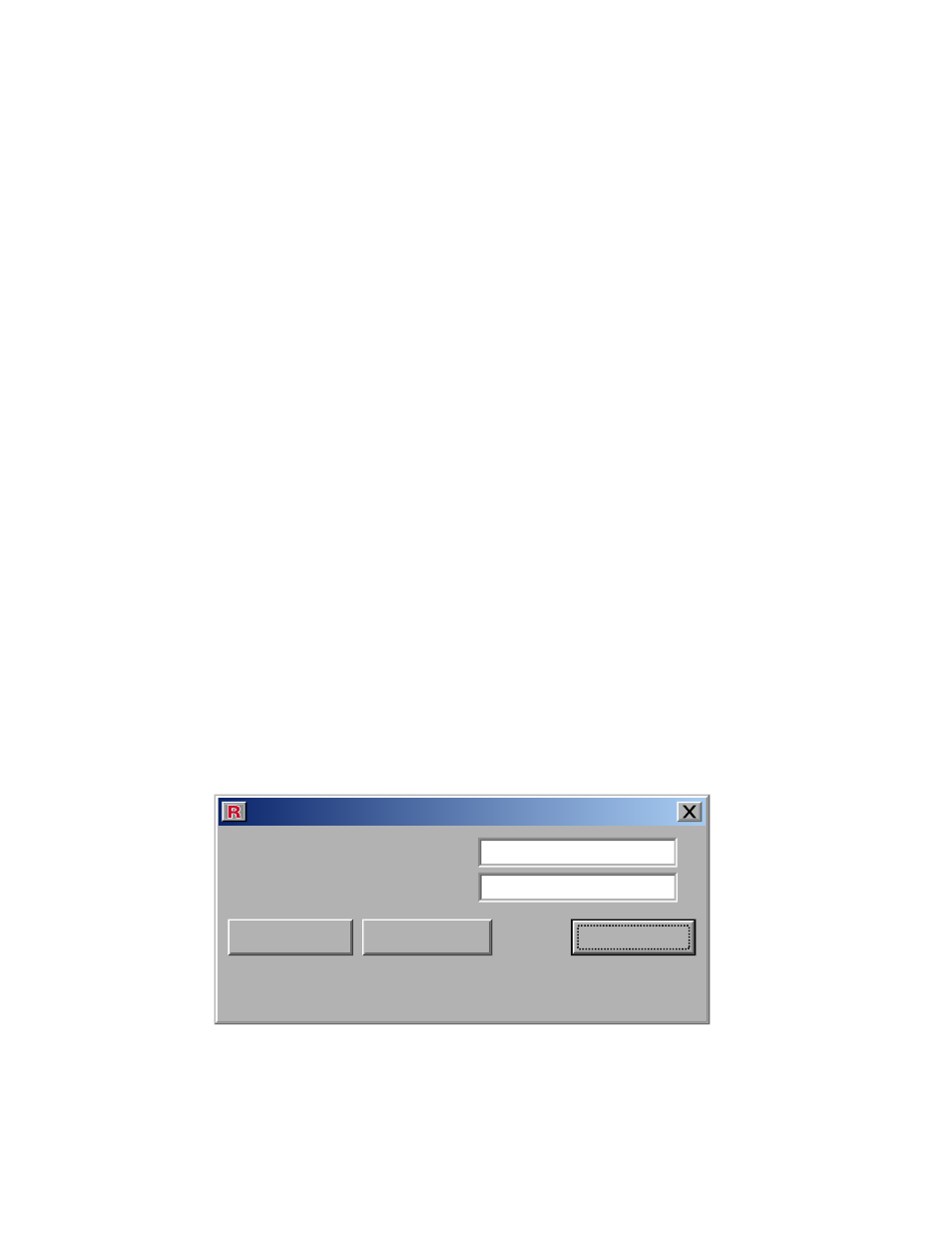

Property Tables
Property Table Version Number:
Property Table Name:
2
Export Import Close
AIR
Property tables are used to provide density and viscosity information over a wide range of tem-
perature and pressure. Accurate density and viscosity information is required to make accurate
flow measurements.
