System Configurations

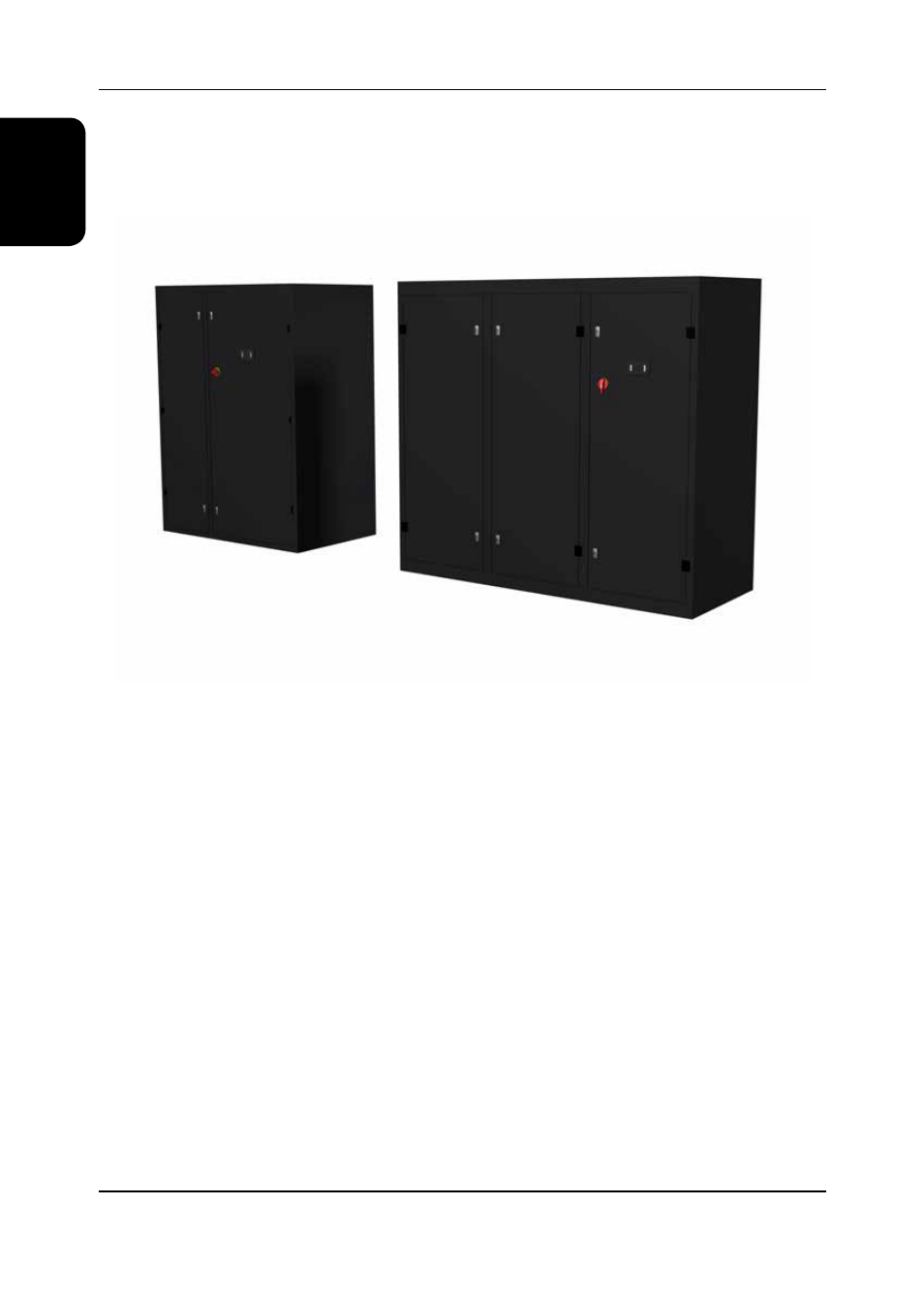

SN, SR Range SD Range
The SN and SR range is designed for the following
nominal conditions:
SN C000 Units
• Fans located within unit
• Separate floorstand (min 350mm)
• Return air of 24°C 45% RH
• Water temperatures of 7°C / 12°C
SR C000 / C0C0 Units
• Fans located within unit
• Separate floorstand (min 350mm)
• Return air of 24°C 45% RH
• Water temperatures of 7°C / 12°C
The SD range is designed for the following nominal
conditions:
SD CL00 / CLCL Units
• Fans located within floorstand
• Floorstand integril to unit (min 600mm)
• Return air of 35°C 24% RH
• Water temnperatures of 18°C / 24°C
SD CH00 / CHCH Units
• Fans located within floorstand
• Floorstand integril to unit (min 600mm)
• Return air of 24°C 45% RH
• Water temperatures 7°C / 12°C
