SD Nomenclature
SD CH00 / SD CL00
Where a chilled water single circuit system is preferred,
warm room air is drawn across the efficient cooling coil of
the SmartCool CH00 or CL00 and the heat transferred to
a chilled water system such as Airedale’s high efficiency
chiller.
By controlling the single 2 way water regulating valve,
(or additional 2 way bypass) the
intelligent Airetronix
microprocessor can achieve precise control of temperature
and humidity.
The CH00 is designed for high water flowrates; whilst the
CL00 is optimised for low flow conditions.
SD CHCH / SD CLCL
Where a chilled water dual circuit system is preferred,
warm room air is drawn across the efficient cooling coil of
the SmartCool CHCH or CLCL and the heat transferred to
a chilled water system such as Airedale’s high efficiency
chillers.
By controlling the single 2 way water regulating valve,
(or additional 2 way bypass) the
intelligent Airetronix
microprocessor can achieve precise control of temperature
and humidity.
The CH00 is designed for high water flowrates; whilst the
CL00 is optimised for low flow conditions.

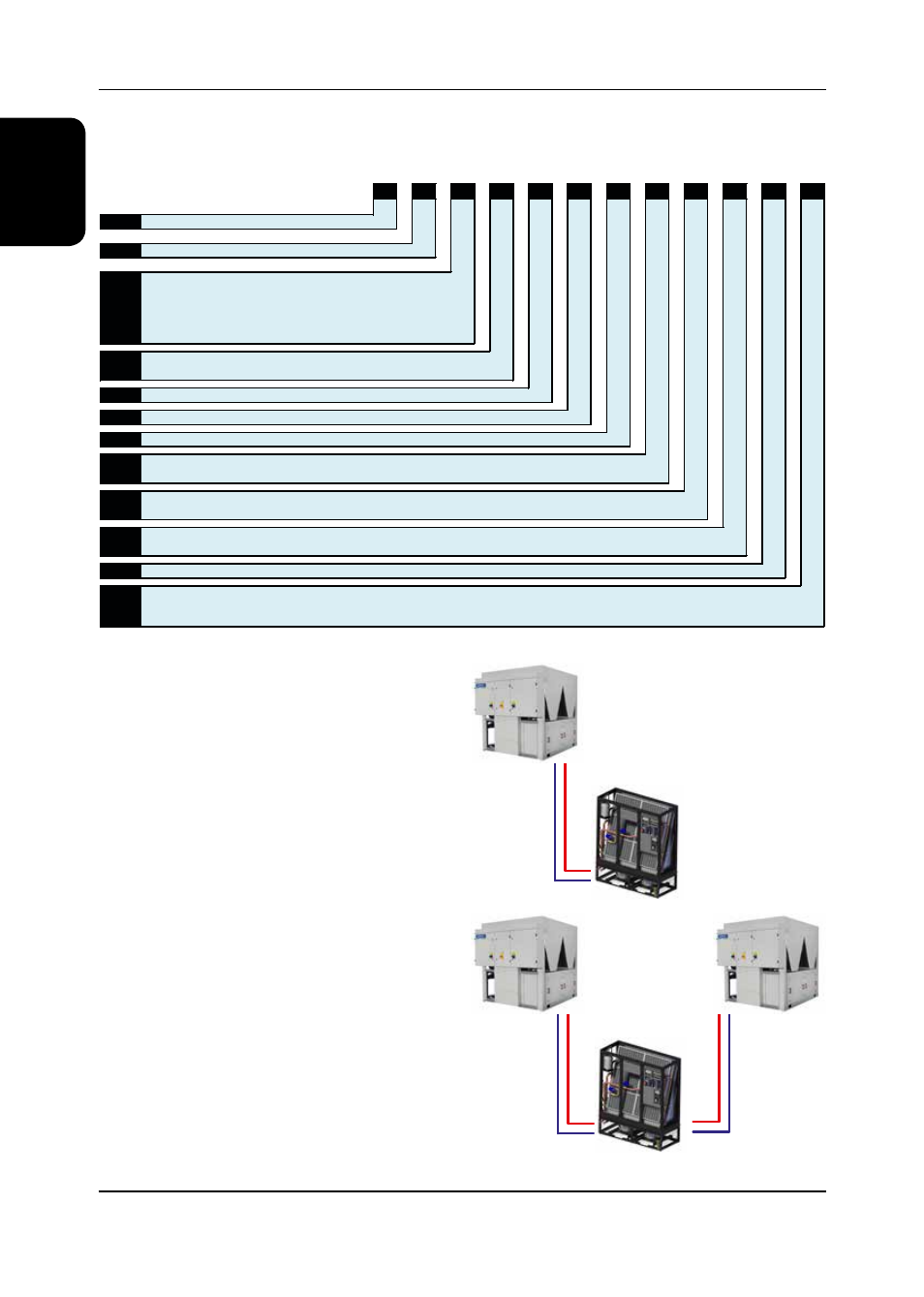

S D 31 D 215 - C H 0 0 - 0
S Product Name SmartCool
D Product Variant Dedicated Chilled Water
18 1800 mm
22 2200 mm
25 Case Width 2500 mm
31 3100 mm
35 3500 mm
D Downflow
085-255 Nominal Cooling Capacity (kW)
- Separator
C Chilled Water
H Coil Streamed For High Flow
L Coil Streamed For Low Flow
C Chilled Water Circuit
0 No Chilled Water Circuit
H Coil Streamed For High Flow
L Coil Streamed For Low Flow
- Separator
0 400V / 3Ph + N / 50Hz
1 Power Supply 380V / 3Ph +N / 60Hz
2 220V / 3Ph / 60Hz
Flow Configuration
Coil Type
Coil Type Second Circuit
Second Circuit
