Technical Data SD CLCL Units

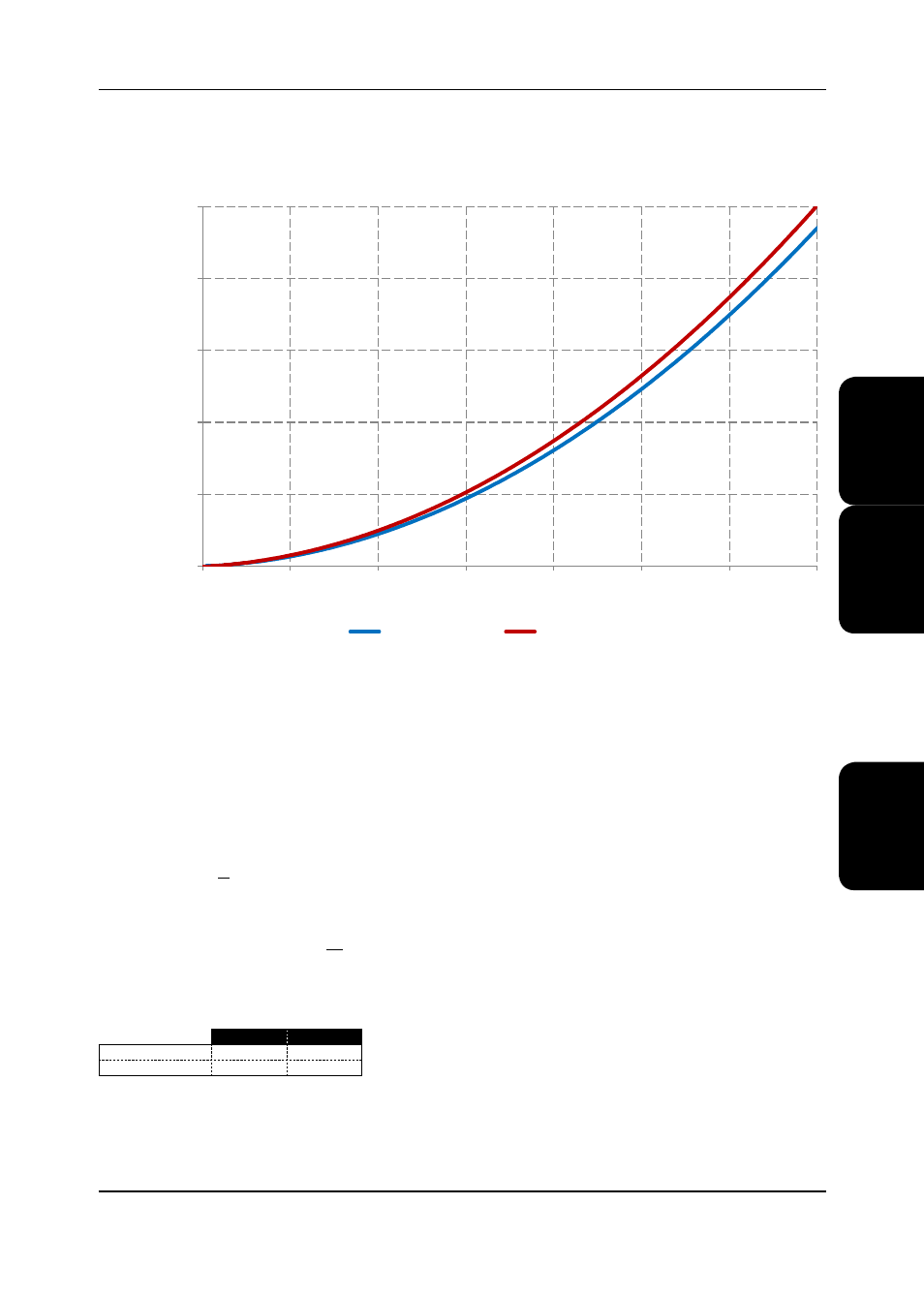

Waterside Pressure Drop Data
Includes coil, 2 port valve and pipework.
To calculate 3 port valve pressure drop:
∆P valve =
2






M
Q
where ∆P = Pressure Drop in kPa,
Q = Water Flow Rate in l/s and M = 





36
Kv
Fluid 100% water.
Kv Cooling Kv Bypass
SD31D190-CLCL 63 63
SD35D225-CLCL 63 63
4 SD31D190 - CLCL-0
5 SD35D225 - CLCL-0
0.00
50.00
100.00
150.00
200.00
250.00
0.00 2.00 4.00 6.00 8.00 10.00 12.00 14.00
Pre
ss
ure
D
ro
p (
kP
a)
Flow Rate (l/s)
SD31D190-CLCL-0 SD35D225-CLCL-0
5
4
Precision Air Conditioning SmartCool™ 6 - 200kW
189 SmartCool 6 - 200kW Chilled Water Technical Manual 7674716 V1.1.0_04_2014
