Technical Data SD CL00 Units

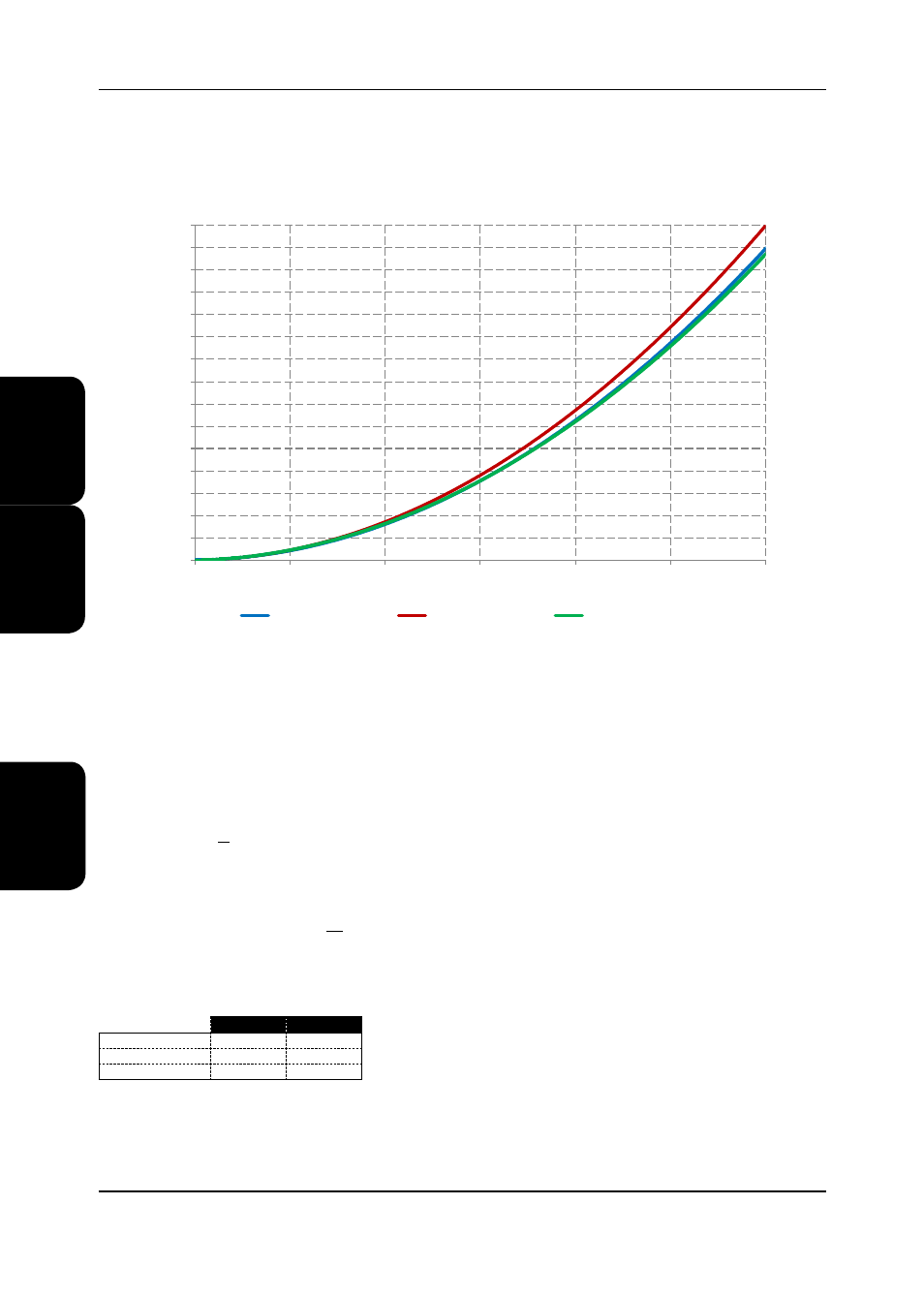

Waterside Pressure Drop Data
Includes coil, 2 port valve and pipework.
To calculate 2 port valve pressure drop:
∆P valve =
2
M
Q
where
∆P = Pressure Drop in kPa,
Q = Water Flow Rate in l/s and M =
36
Kv
Fluid 100% water.
Kv Cooling
Kv Bypass
SD18D115-CL00
40
40
SD22D145-CL00
63
40
SD25D180-CL00
63
40
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
160.0
180.0
200.0
220.0
240.0
260.0
280.0
300.0
0.00
2.00
4.00
6.00
8.00
10.00
12.00
Pre
ss
ure
D
ro
p (
kP
a)
Flow Rate (l/s)
SD18D115-CL00-0
SD22D145-CL00-0
SD25D180-CL00-0
2
1 and 3
1
SD18D115 -CL00-0
2
SD22D145-CL00-0
3
SD25D180-CL00-0
SmartCool™ 6 - 200kW
Precision Air Conditioning
156
SmartCool 6 - 200kW Chilled Water Technical Manual 7674716 V1.1.0_04_2014
