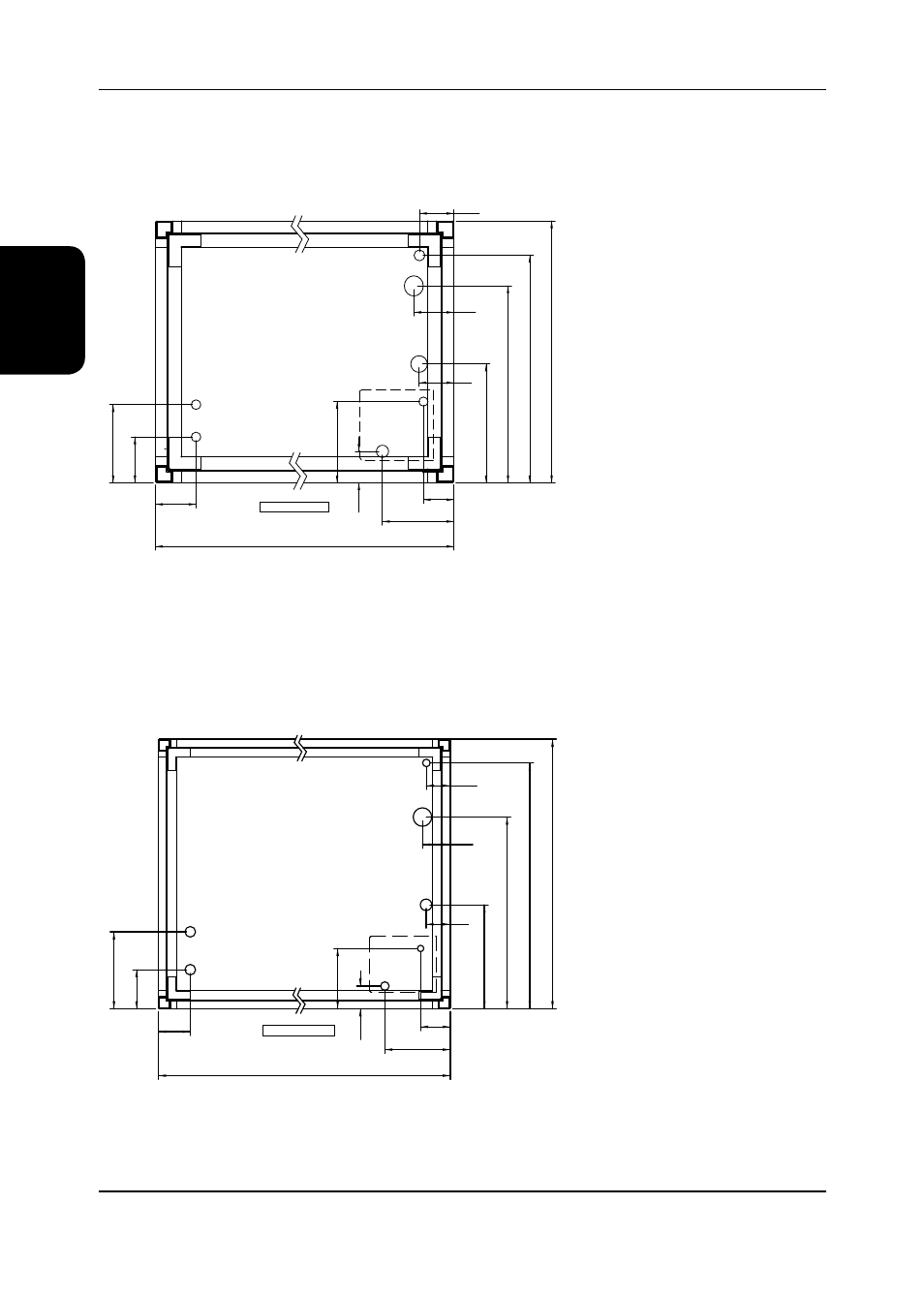

Incoming Services
SN Single Circuit
VIEW FROM ABOVE
FRONT OF UNIT
A
B
E
F
G
J
H
105
179
93
684
72
186
272
451
521
600
70
163.8
79
92
80
A DIA 22mm WATER INLET
B DIA 22mm WATER OUTLET
E POWER (CONNECT VIA EXTERNAL CONNECTION BOX)
F CONTROLS (CONNECT VIA CONNECTORS)
G CONDENSATE DRAIN (TEE TO HUMIDIFIER DRAIN - IF USED)
H HUMIDIFIER DRAIN (TEE TO CONDENSATE DRAIN)
J HUMIDIFIER FILL
Incoming Services
SR Single Circuit
VIEW FROM ABOVE
FRONT OF UNIT
A
B
E
F
G
J
H
129
254
105
963
75
199
343
632.5
811
890
98
216
79
92
80
A DIA 35mm WATER INLET
B DIA 35mm WATER OUTLET
E POWER (CONNECT VIA EXTERNAL CONNECTION BOX)
F CONTROLS (CONNECT VIA CONNECTORS)
G CONDENSATE DRAIN (TEE TO HUMIDIFIER DRAIN - IF USED)
H HUMIDIFIER DRAIN (TEE TO CONDENSATE DRAIN)
J HUMIDIFIER FILL
