Technical Data SR C000 Units

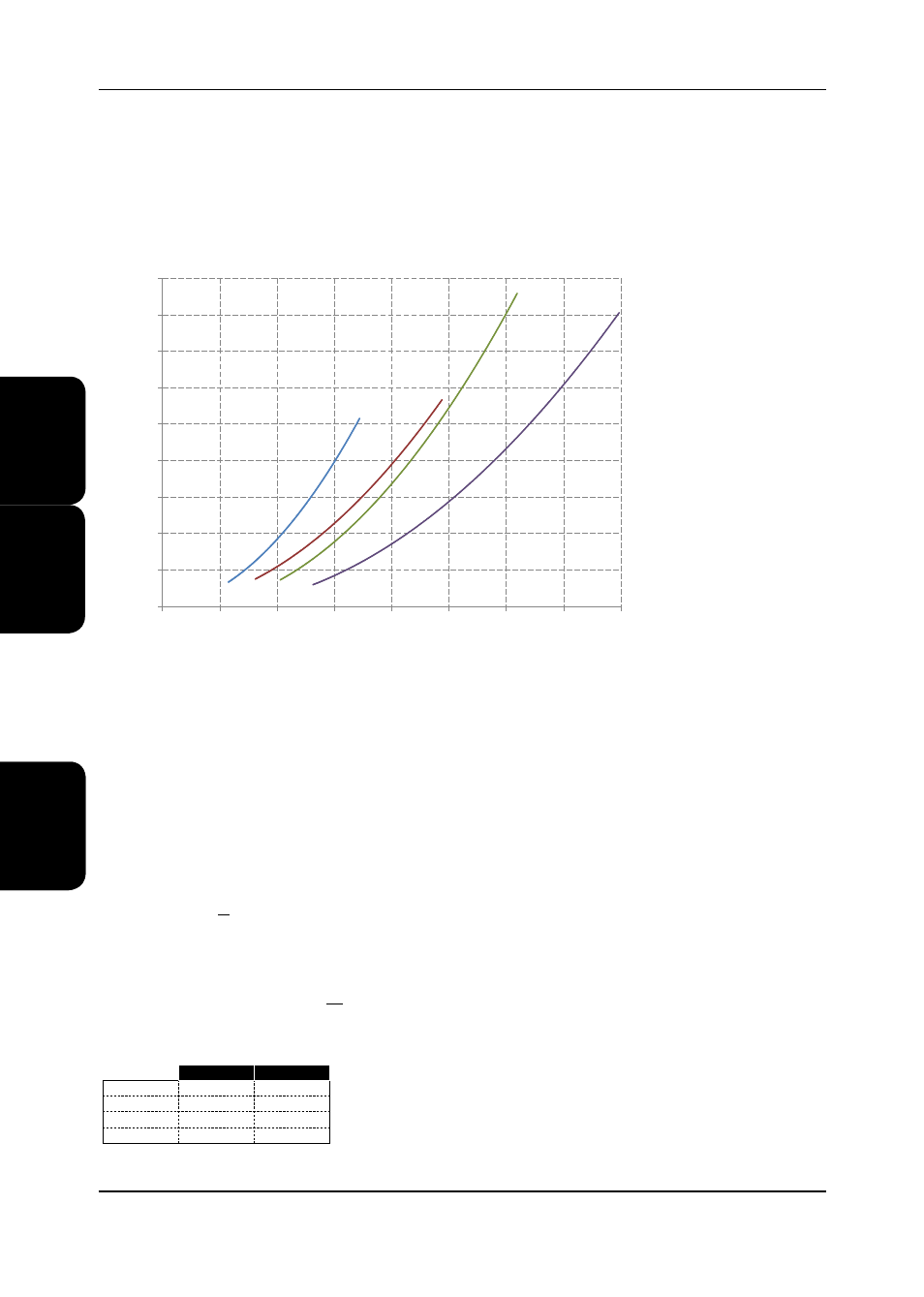

Waterside Pressure Drop Data
Unit Valve Kv M
SR09 C000 25.0 0.69
SR12 C000 40.0 1.11
SR15 C000 40.0 1.11
SR18 C000 63.0 1.75
Includes coil, 2 or 3 port valve and pipework.
To calculate 3 port valve pressure drop:
∆P valve =
2






M
Q
where
∆P = Pressure Drop in kPa,
Q = Water Flow Rate in l/s and M = 





36
Kv
Fluid 100% water.
4 SR09D030 - C000 / SR09D040 - C000
5 SR12D045 - C000 / SR09D055 - C000
6 SR15D065 - C000 / SR15D075 - C000
7 SR18D080 - C000 / SR18D095 - C000
0
20
40
60
80
100
120
140
160
180
0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00
Pre
ss
ure
D
ro
p (
kP
a)
Flow Rate (l/s)
4
5
6 7
