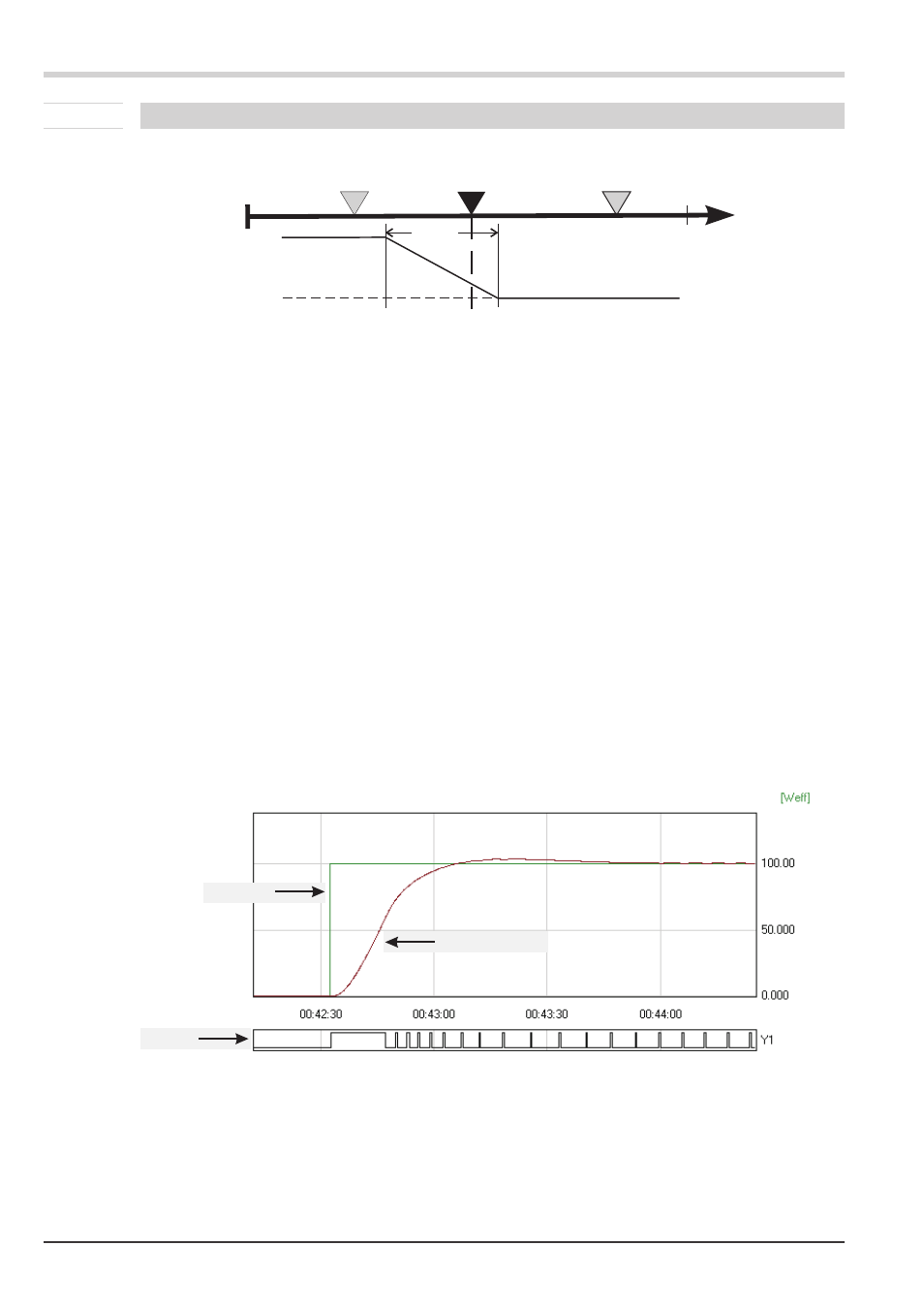

7.2.2 2-point controller (inverse)
ConF / Cntr: SP.Fn = 0 setpoint controller
C.Fnc = 1 2-point controller (PID)
C.Act = 0 inverse action (e.g. heating applications)
ConF / Out.1: O.Act = 0 action Out.1 direct
Y.1 = 1 control output Y1 active
PArA / Cntr: Pb1 = 0,1...9999 proportional band 1 (heating)
in units of phys. quantity (e.g. °C)
ti1 = 1...9999 integral time 1 (heating) in sec.
td1 = 1...9999 derivative time 1 (heating) in sec.
t1 = 0,4...9999 min. cycle time 1 (heating)
PArA / SEtP: SP.LO = -1999...9999 setpoint limit low for SPeff
SP.Hi = -1999...9999 setpoint limit high for SPeff
g
For direct action, the controller action must be changed ( ConF / Cntr / C.Act = 1 ).
Controlling
Configuration examples 38 KS 45
InH.1 InL.1 SP.LO SP SP.Hi
Out.1Â
InP.1Ê
100%
0%
PB1
setpoint
output
process value
