6.8.2
Logic output
The analog output can also be used as a logic output (
O.typ = 0).
In this case, e.g. alarms or limit values can be output or the output can be used as controller output.
6.8.3
Transmitter power supply
Two-wire transmitter power supply can be selected by adjusting
O.typ = 5.
In this case, the analog output of the device is no longer available.
6.8.4
Analog output forcing
By adjusting f.Out = 1 (only via BlueControl
Ò
), the output can be configured for value input via interface, or by means of
an input value at extended operating level (=Forcing).
g
This setting can be used also for e.g. testing the cables and units connected in the output circuit.
g
This function can also realize a setpoint potentiometer.
Functions
KS 45
31
Analog output (optional)
1
2
3
K
+
-
+
-
?13V
22mA
14
13
12
16
15
11
17 18
INP2
INP1
OUT3
PWR
OUT1
OUT2
di1
8
7
6
3
2
1
5
3
4

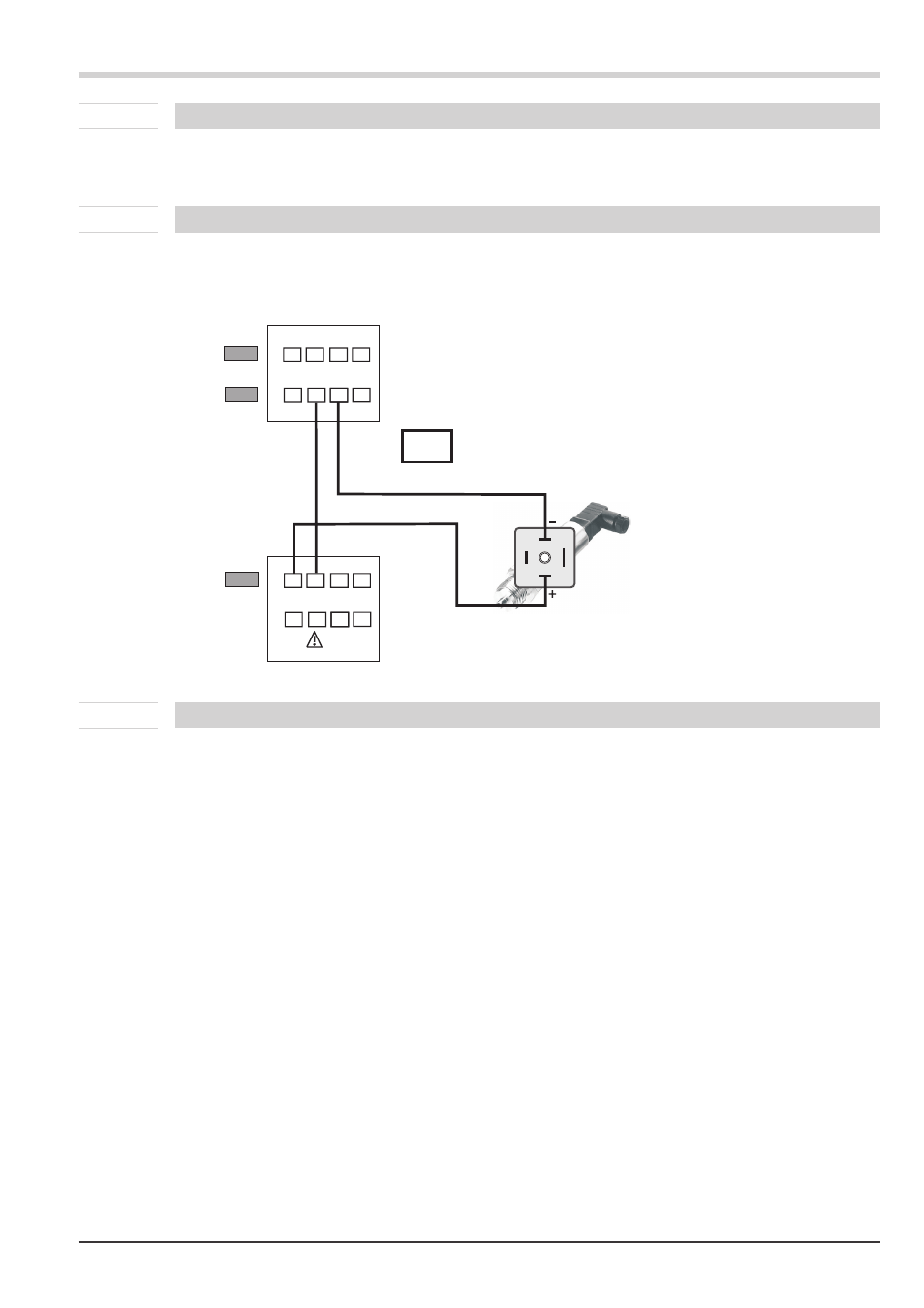

Connecting example:
