7.2 Configuration examples

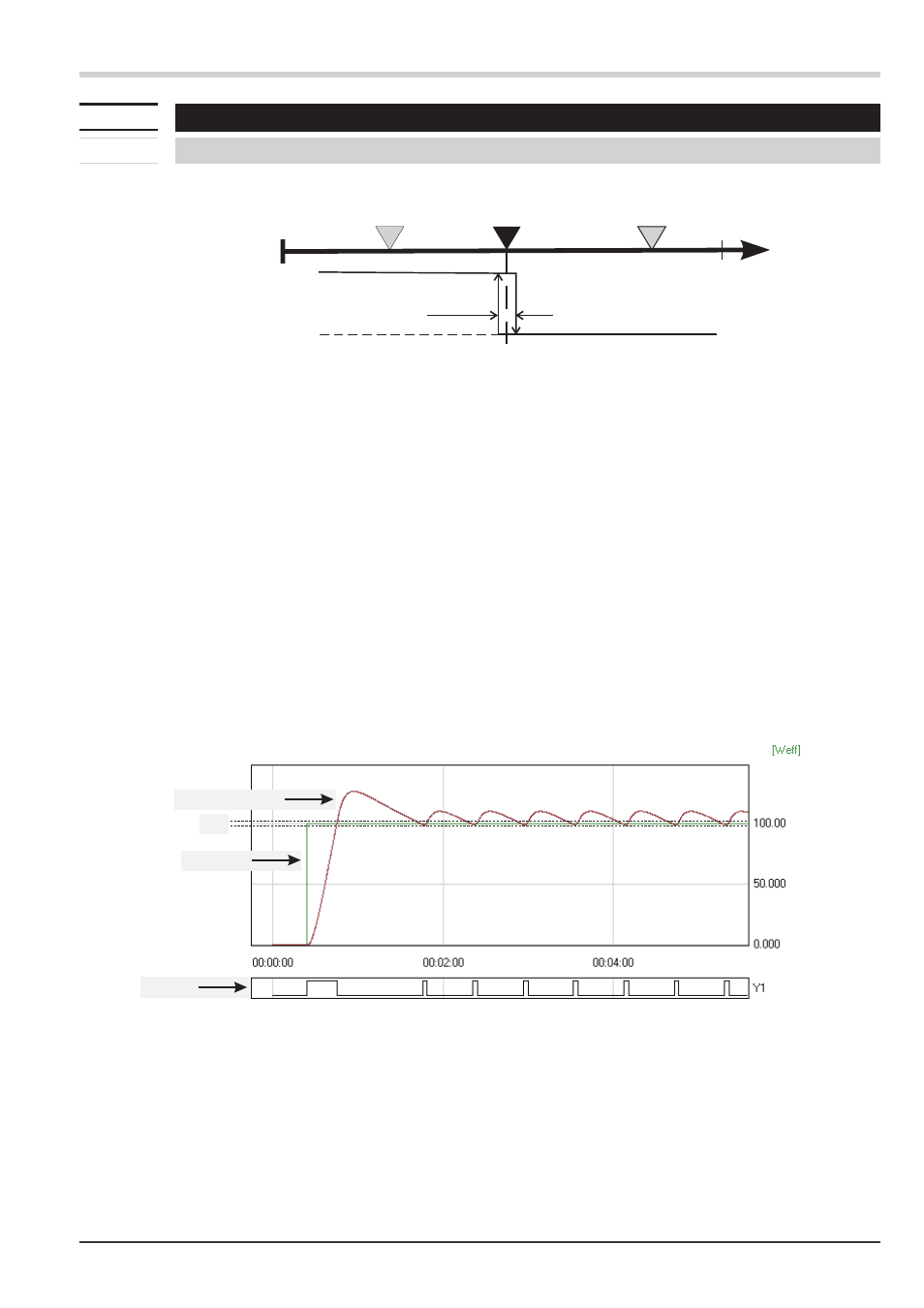

7.2.1 Signaller (inverse)/ On-Off controller
ConF / Cntr: SP.Fn = 0 setpoint controller
C.Fnc = 0 signaller with one output
C.Act = 0 inverse action (e.g. heating applications)
ConF / Out.1: O.Act = 0 action Out.1 direct
Y.1 = 1 control output Y1 active
PArA / Cntr: SH = 0...9999 switching difference (symmetrical to the trigger
point)
PArA / SEtP: SP.LO = -1999...9999 setpoint limit low for SPeff
SP.Hi = -1999...9999 setpoint limit high for SPeff
g
For direct signaller action, the controller action must be changed ( ConF / Cntr / C.Act = 1 )
Controlling
KS 45 37 Configuration examples
setpoint
output
process value
SH
InH.1 InL.1 SP.LO SP SP.Hi
100%
0%
SH
Out.1Â
InP.1К
