5.5 Extended operating level
The operation of important or frequently used parameters and signals can be allocated to the extended operating level.
This facilitates the access, e.g. travelling through long menu trees is omitted, or only selected values are operable, the
other data of the parameter level are e.g. disabled.
Display of the max. 8 available values of the extended operating level is in the second LCD line.
The content of the extended operating level is determined by means of the BlueControl
Ò
engineering tool. For this,
select entry "Operation level" in the "Mode" selection menu. Further information is given in the on-line help of the engi -
neering tool.

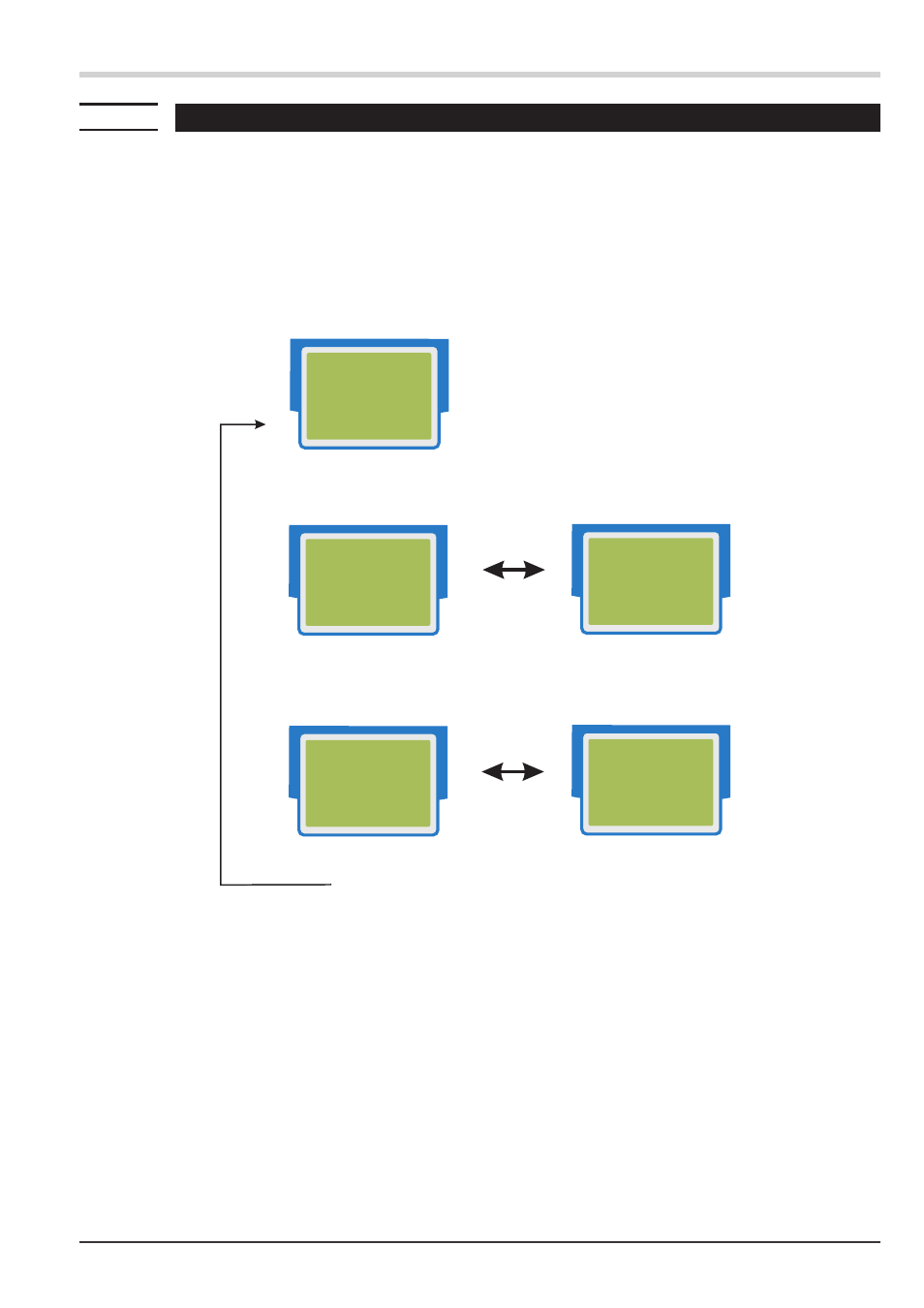

Press key ô to display the first value of the extended
operating level (after display of error list, if necessary).
The selected parameters can be changed by
pressing keys Ì and И .
ф press to display the next parameter
ô return to normal display after the last parameter
Unless a key is pressed within a defined time (timeout = 30 s), the operating level is displayed again.
