5.2 Operating structure

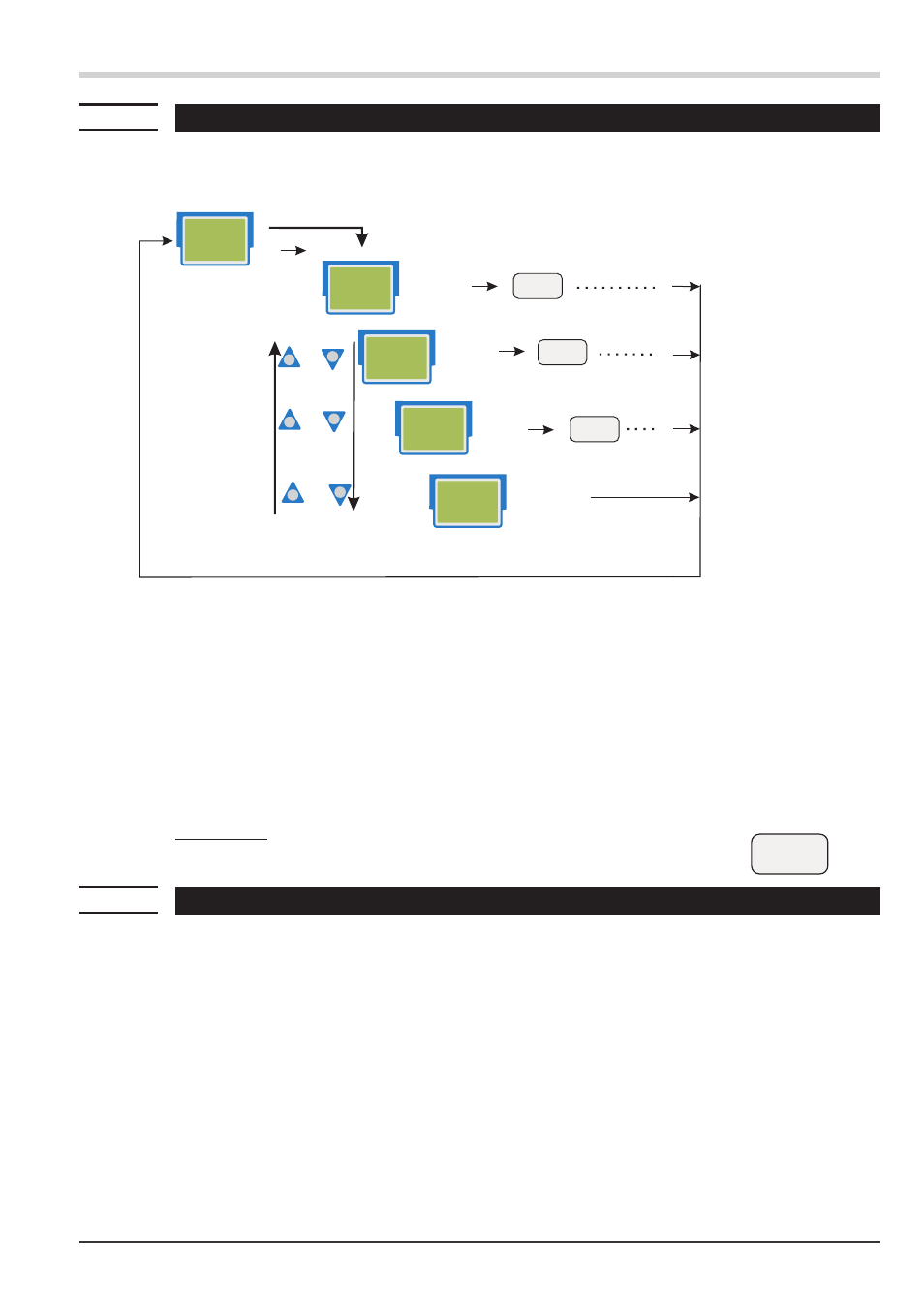

The instrument operation is divided into four levels:
The access to the parameter, configuration and calibrating level can be disabled using the following two methods:
w
Level disabling by adjustment in the engineering tool (IPar, ICnf, ICal). Display of disabled levels
is suppressed.
w
The access to a level can be disabled by entry of a pass number (0 … 9999). After entry of the
adjusted pass number, all values of the level are available.
With faulty input, the unit returns to the operating level.
Adjusting the pass number is done via BlueControl
Ò
.
Individual parameters which must be accessible without pass number, or from a disabled
parameter level, must be copied into the extended operating level.
Factory-setting: all levels are accessible without restrictions,
pass number
PASS = OFF
5.3 Behaviour after supply voltage switch-on
After switching on the supply voltage, the instrument starts with the operating level.
The operating status is as before power-off.
If the device was in manual mode, when switching off the power-supply, it also starts up in manual mode with output
value
Y2.
