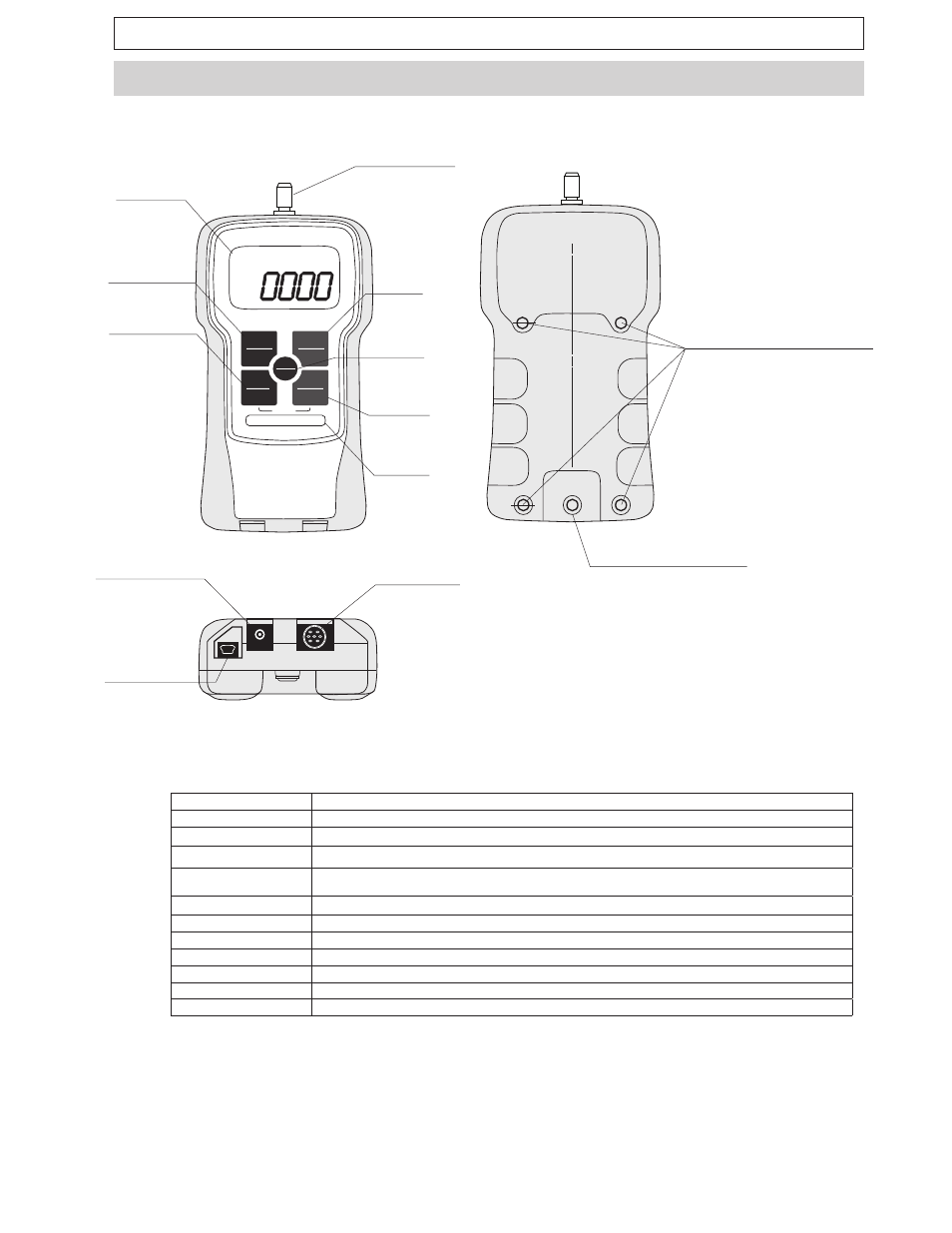

3. Parts of your FGV-XY
3.1.Main Unit
1. Sensor Shaft Apply your force in line with this threaded shaft. Use the included attachments for a your testing application.
2. Display LCD screen is unit's main information display,
3. PEAK Press PEAK to change measuring modes
4. UNIT Press UNIT to switch to available measurement units.
5. ZERO Press ZERO in Standard mode to tare gauge.
Pressing ZERO in Peak mode will clear the current peak value.
6. MEM Press MEM in standard mode to activate measurement recording
7. POWER Press POWER to turn gauge on and off.
8. AC Adapter Port Port used for the provided AC adapter.
9. Data Output Port Port used for data output options.
10. USB Port Port used to connect gauge to PC through USB.
11. Hanger Attachment Bolt Bolt secures the provided hanger attachment.
12. Threaded Holes Thread holes are used to attach gauge to a fi xture or stand.
