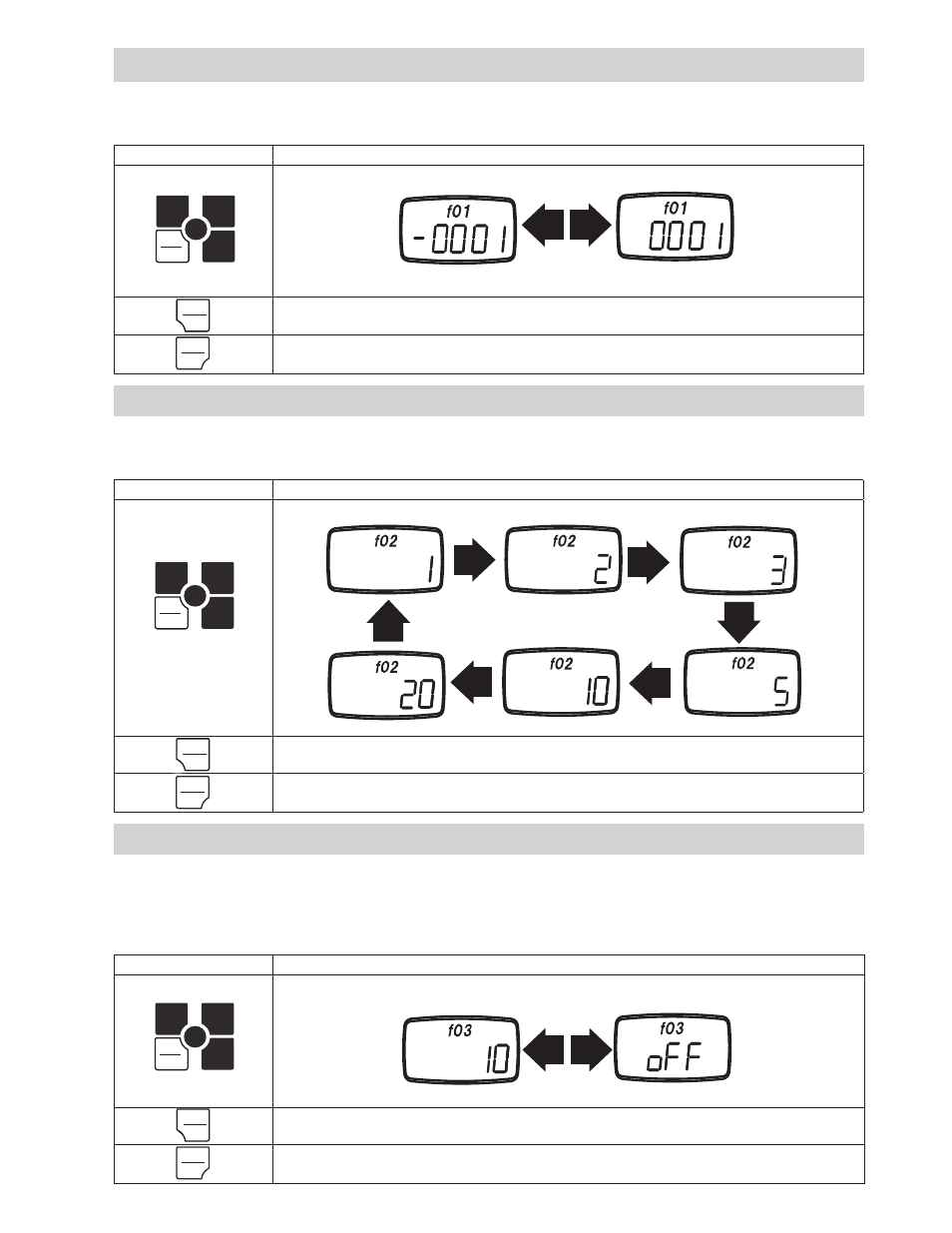

Key Operation Display
PEAK PEAK ZERO
MEM MEM
UNIT
Press UNIT to cycle through
the available settings.
ZERO Save the current setting, and return to the standard measuring mode.
PEAK Save the current setting, and move to f03.
Key Operation Display
PEAK PEAK ZERO
MEM MEM
UNIT
Press UNIT to change.
ZERO Save the current setting, and return to the standard measuring mode.
PEAK Save the current setting, and move to f02.
This function allows you to change whether compression is shown as a positive or negative force. Once the compression display has been
changed, the tension display will then read as the opposite of the compression. Press UNIT to change the setting, PEAK to save and move to
the next function, or ZERO to save and fi nish.
Negative Compression Positive Compression
4.5.2 Display Update Time: f02
This function allows you to change the rate at which the display is updated.
The update times available are 1, 2, 3, 5, 10, and 20 times a second.
Press UNIT to cycle through the settings, PEAK to save and move to the next function, or ZERO to save and fi nish.
1 time/sec 2 times/sec 3 times/sec
5 times/sec 10 times/sec 20 times/sec
Key Operation Display
PEAK PEAK ZERO
MEM MEM
UNIT
Press UNIT to change.
ZERO Save the current setting, and return to the standard measuring mode.
PEAK Save the current setting, and move to f04.
4.5.3 Auto Power Off: f03
If the gauge is on and there is no activity for 10 minutes*, the unit automatically powers off to conserve battery power.
This option may be disabled, and is automatically disabled when connected to the AC adapter.
Press UNIT to change the setting, PEAK to save and move to the next function, or ZERO to save and fi nish.
*Activity is defi ned as key operations, RS-232C communication, USB communication, or changes in measurement value.
Auto Power Off: 10 Minutes Auto Power Off: disabled
