5.6.2 Recording Memory Data
The following procedures explain how to activate memory recording for each memory mode.
5.6.2.1 Continuous Mode
1. In continuos measurement mode, press MEM to start the recording. The letter M will appear and start blinking. Press M to stop the
recording.
2. If 1000 points of data are recorded, the display will show FULL and return to standard measurement mode.

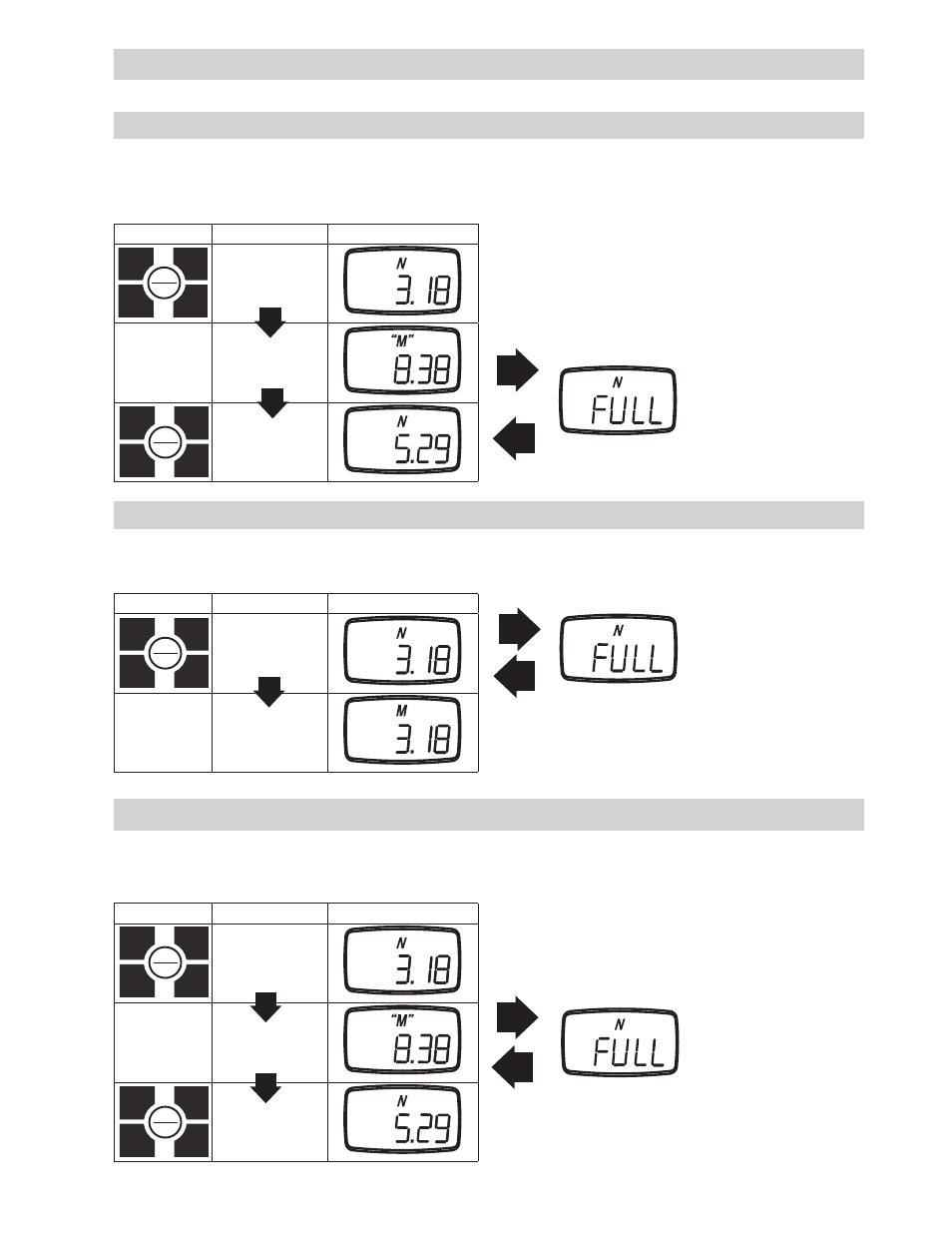

Key operation Status Display ("" means blinking)
MEM
Continuos
Measurement
Mode
Recording
MEM Recording Finished
1000 data points have been recorded.
5.6.2.2 Single Mode
1. In single measurement mode, press MEM. The letter M will appear to show that one data point has been recorded.
2. If 100 data points have been collected, the screen will show FULL, and return to standard measurement mode.
Key operation Status Display
MEM
Single
Measurement
Mode
Data Point Recorded
100 data points have been collected.
5.6.2.3 Standard Mode
1. In Standard Measurement mode, press MEM. The letter M will start blinking, which shows that maximum,
minimum, and peak values are being recorded.
2. Press MEM to stop the recording, and store the last measurement value.
Key operation Status Display ("" means blinking)
MEM
Standard
Measurement
Mode
Recording +/- MAX,
MIN and PEAK.
MEM Recording Finished
50 data points have been collected.
