-21-

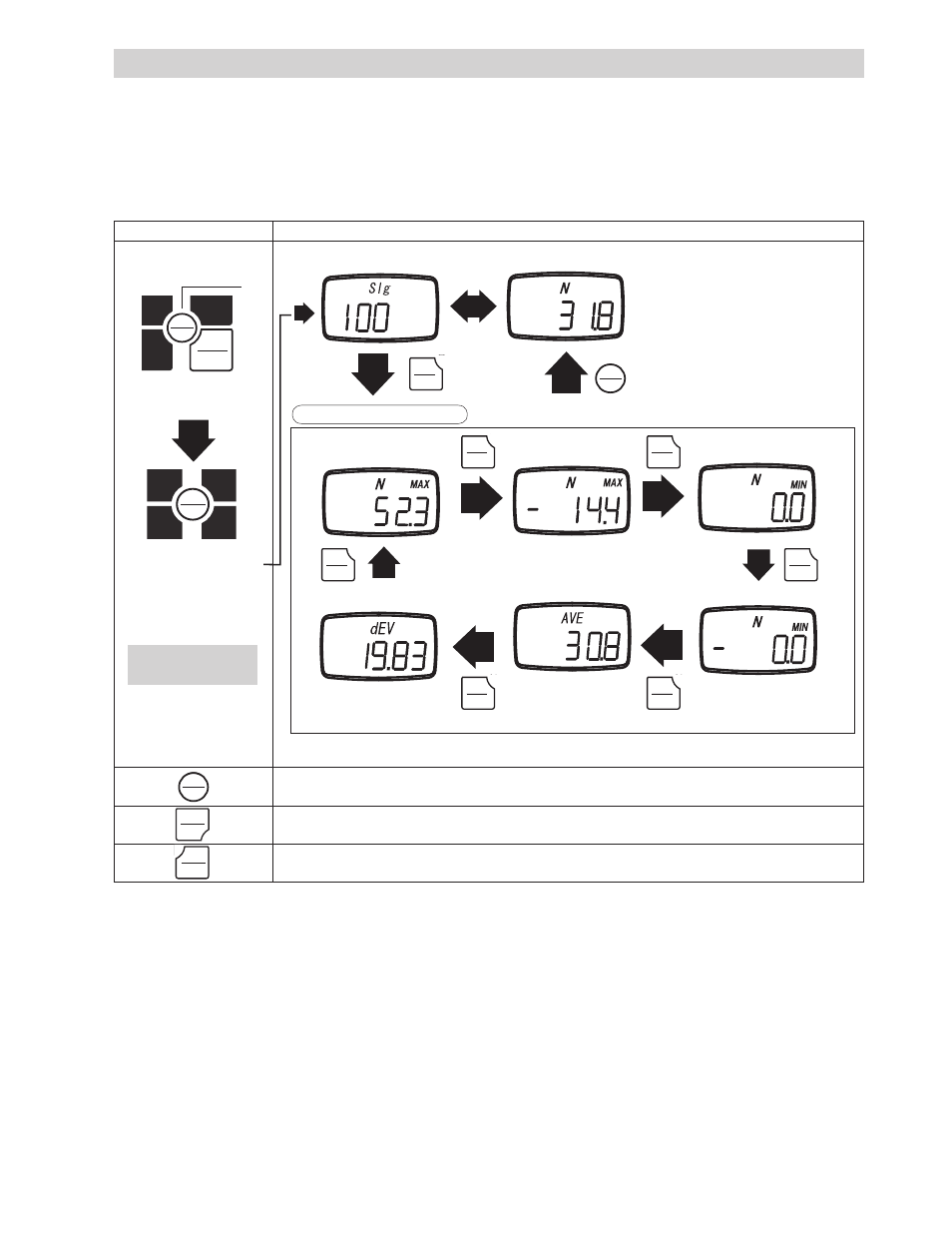

5.7.2.2 Statistics Data
1. When in memory mode, UNIT will cycle through the available statistics data.
2. Each press of UNIT will switch between the following items: positive maximum value, negative maximum value,
positive minimum value, negative minimum value, average value, standard deviation.
3. Press MEM to exit to the recorded measurement values.
4. Press PEAK key to output the recorded memory via RS-232C. Refer to section 6.2 regarding RS232C communication.
Key operation Display
Turn power off
PEAK PEAK ZERO
MEM
UNIT
1. Hold down MEM
2. Press POWER
PEAK PEAK ZERO
MEM
UNIT
3. Release POWER
MEM Exits statistic mode, and returns to memory blocks.
PEAK Transfers the recorded memory data via RS232C, and exits memory mode.
Powers off the FGV-XY.
Positive Maximum Negative Maximum Positive Minimum
Standard deviation
UNIT UNIT
UNIT UNIT
UNIT UNIT
Negative Minimum
Average
Memory block Recorded Value
Display statistical data
UNIT
Release MEM after "CNT"
has displayed.
MEM
1.
2.
MEMORY
MEMORY
MEMORY MEMORY
POWER
POWER
UNITUNIT
UNITUNIT UNITUNIT
UNITUNIT
UNITUNIT
UNITUNIT
UNITUNIT
MEMORY
MEMORY
MEMORY MEMORY
POWER
POWER
PEAKPEAK
