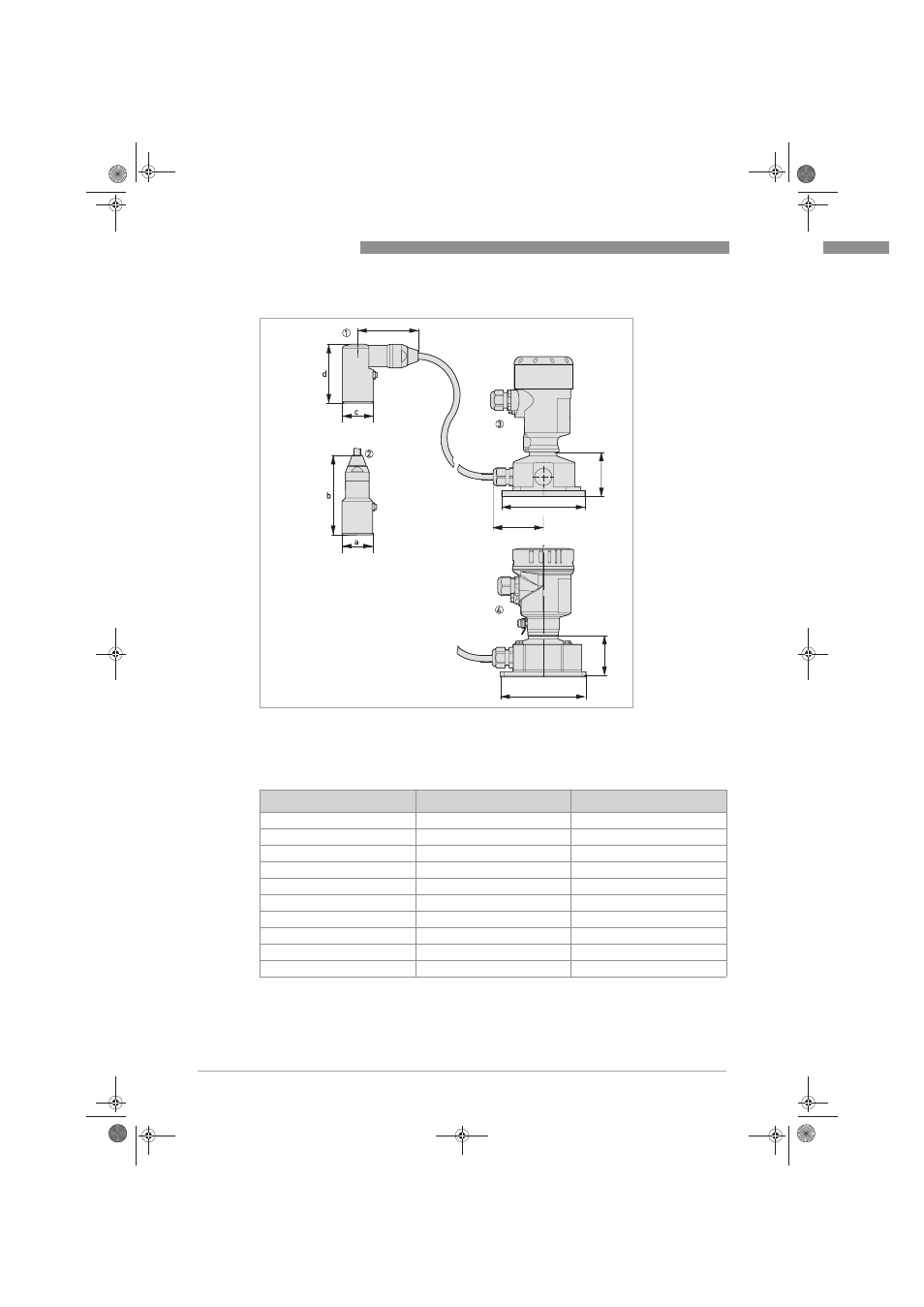

Figure 7-16: External housing
1 Connection plug
2 Connection plug
3 Housing base in plastic
4 Housing base in stainless steel
Dimension [mm] Dimension [inch]
a 41.6 1.64
b 108 4.25
c 41.6 1.64
d 80 3.15
e 82 3.23
f 59 2.32
g 110 x 90 4.33 x 3.54
h 66 2.60
i 51 2.01
k 110 x 90 4.33 x 3.54
e
f
g
h
i
k
