3.4 How to install a device with a threaded connection
Equipment needed:
• Gasket (not supplied with G (ISO 228) threaded connections)
• 34 mm wrench (not supplied)
3.5 Recommendations for pits and tanks made of non-conductive materials
If you have a device with a coaxial probe, you can ignore these instructions.

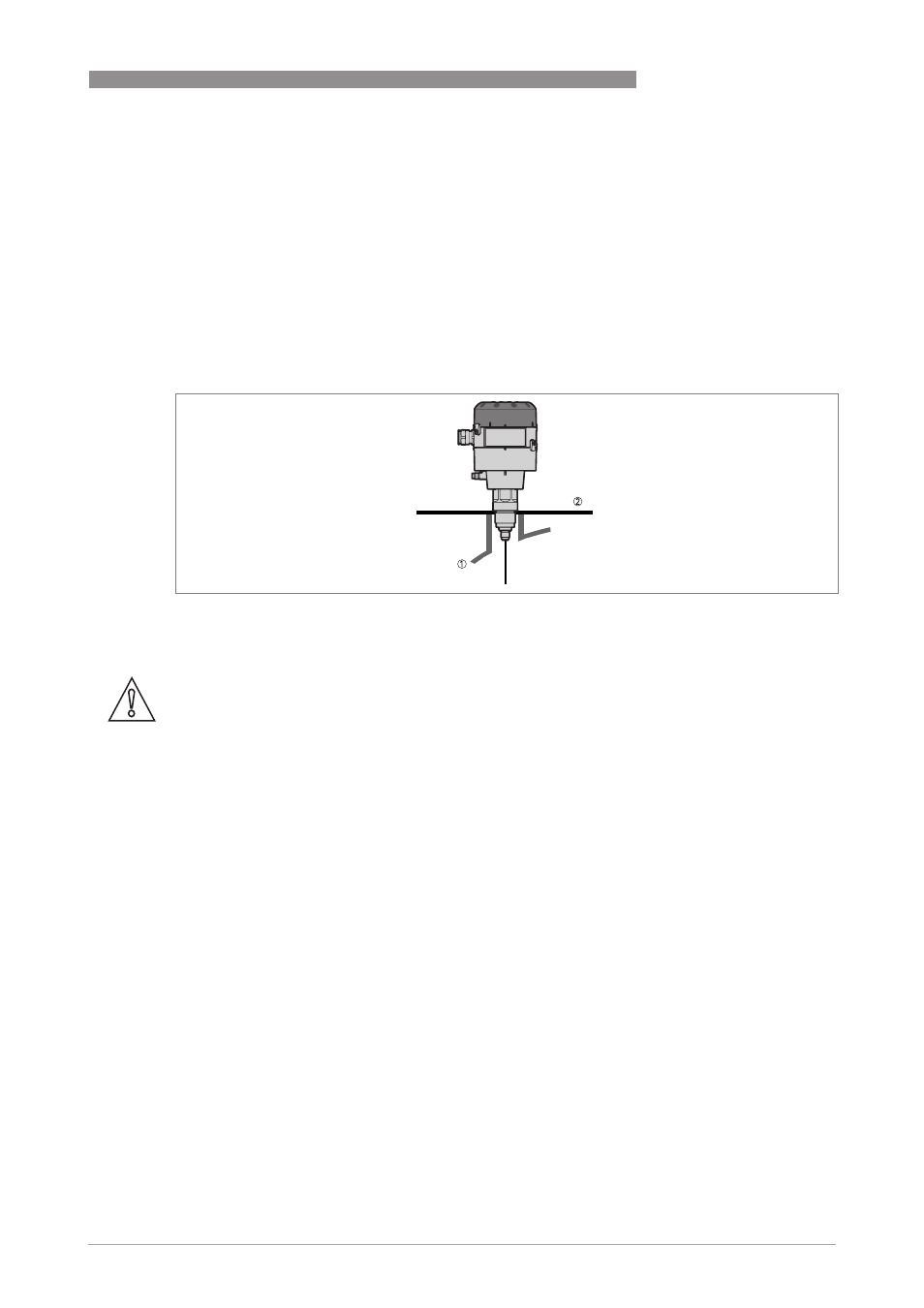

Figure 3-25: Installation in a non-metallic tank or pit with a thread connection
1 Non-metallic (plastic...) tank or pit
2 Metal sheet, Ø ≥200 mm / 8¨
CAUTION!
When the device is installed, make sure that the tank roof has no deformation.
