3.3.4 Mounting position
We recommend that you install the probe when the silo is empty.
Install the device at the correct location to measure level correctly and prevent too much
bending and traction. If necessary, attach the probe to the bottom of the tank.

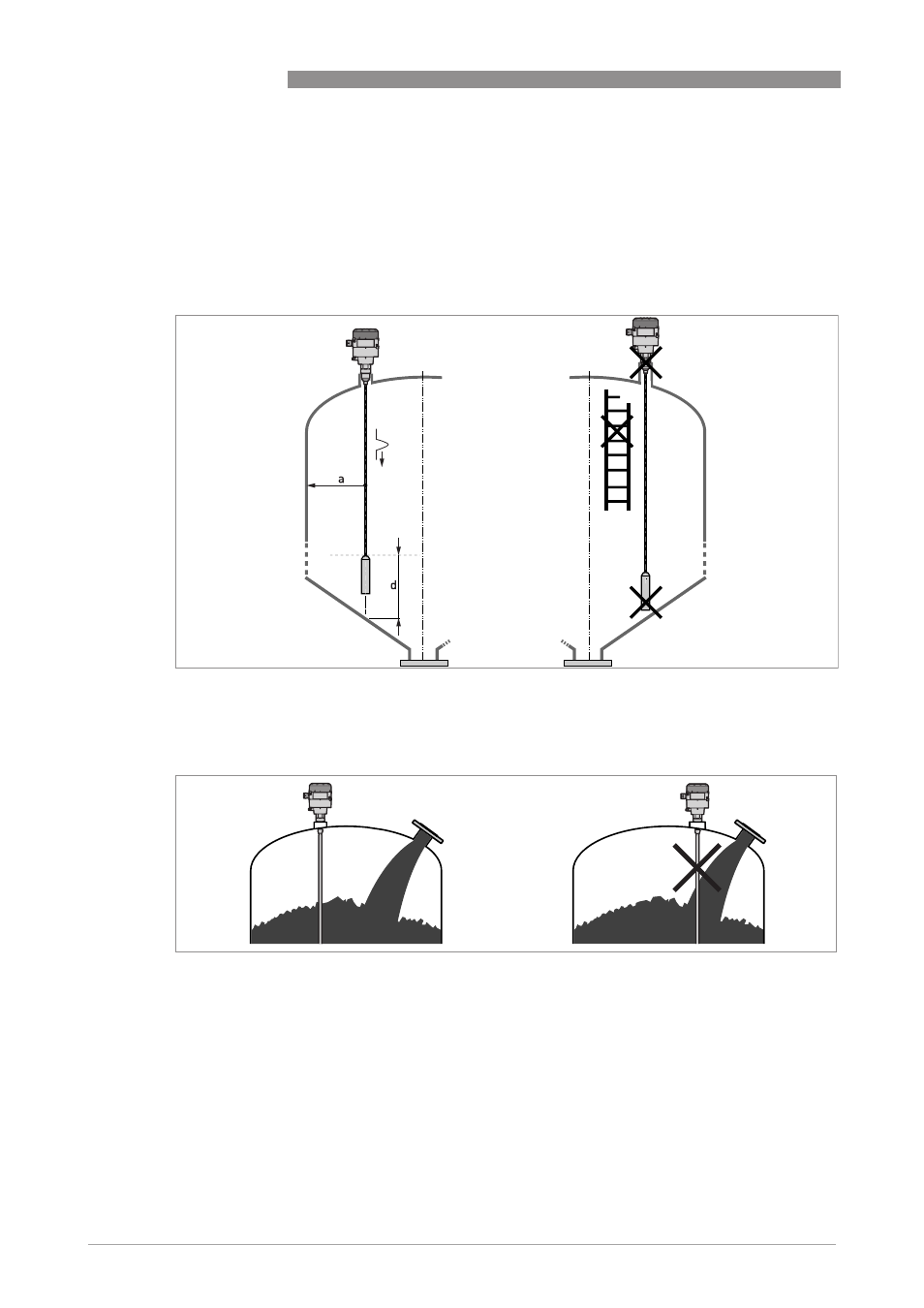

Figure 3-23: Installation recommendations for solids
a ≥ 300 mm / 12¨
d ≥ 300 mm / 12¨
Figure 3-24: Do not install the probe near to a product inlet
