3.1 Ø2 mm / 0.08¨ single cable probe (liquid applications)
3.1.1 Scope of delivery
3.1.2 Transport
INFORMATION!
Do a check of the packing list to make sure that you have all the elements given in the order.

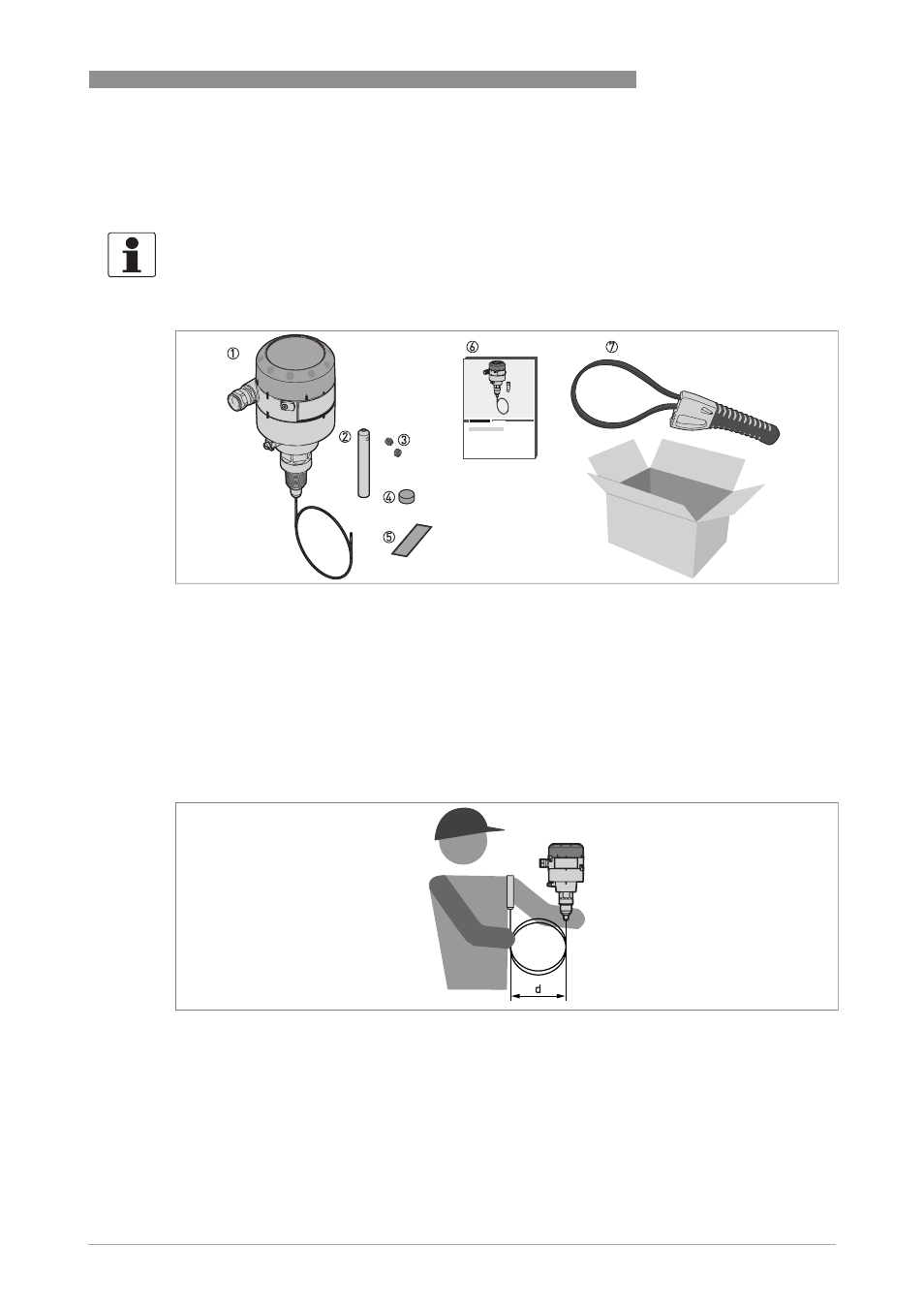

Figure 3-1: Scope of delivery: device with Ø2 mm single cable probe option
1 Converter, process connection and probe
2 Counterweight
3 2 HC M6×5 screws for the counterweight
4 Probe assembly cover. For more data, refer to
How to turn or remove the signal converter on page 28.
5 Sticker: if you adjust the probe length, write the new value on the sticker
6 Quick Start
7 Strap wrench
Figure 3-2: How to hold the device
d > 100 mm / 4¨
