Setup
21
Setup
This chapter describes load configurations and
setup procedures. Follow these instructions to
properly install PSH series.
AC power cable
assembly AC Power Cable Assembly ......................... 22
AC power cable requirement ..................... 23
Load
configuration Remote Sensing and Local Sensing ............ 24
Load / Remote Sensing Wire Selection........ 25
Single Load + Local Sensing...................... 26
Single Load + Remote Sensing .................. 26
Multiple Loads + Local Sensing .................. 27
Multiple Loads + Remote Sensing .............. 27
Series Operation + Local Sensing............... 28
Series Operation + Remote Sensing ........... 29
Wire assembly Load Wire Assembly................................. 30
Remote Sensing Wire Assembly ................. 32
Functionality
Check Preparation............................................. 34
Output Voltage & OVP Check ..................... 35
Output Current Check .............................. 37
OCP Check.............................................. 38
Rack mounting
(optional) Rack mounting kit contents ....................... 40
Rack mounting assembly .......................... 41
PSH User Manual
22

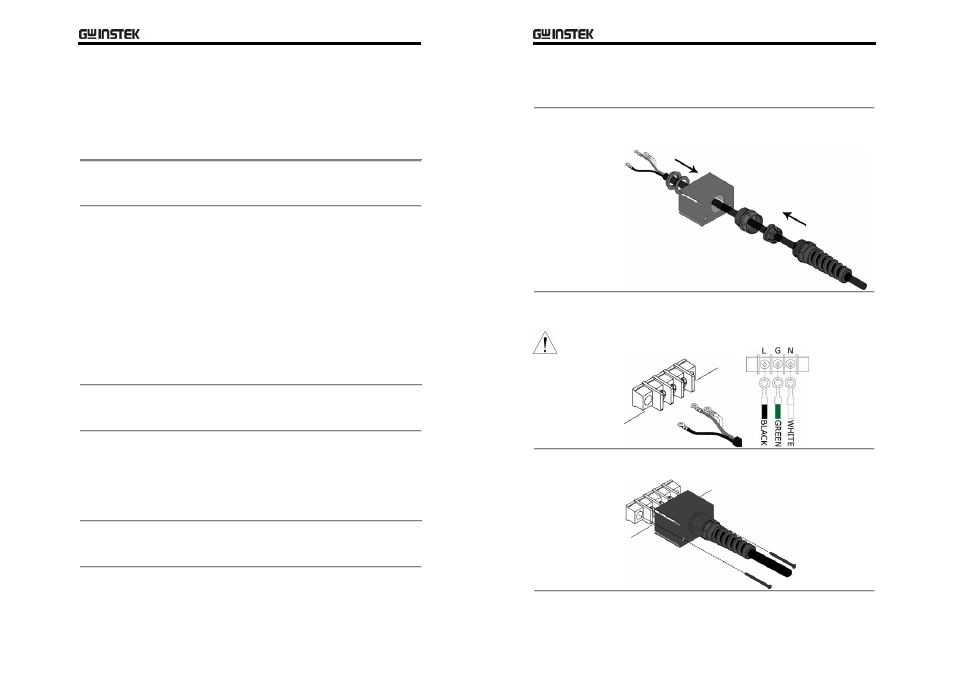

AC Power Cable Assembly
1 Cable gland +
Terminal Cover Put the power cable through the cable gland and
the terminal cover, screw them together.
2 Cable wire +
Terminal
CAUTION
Screw the wire onto the AC input terminal. Note
the wire color: Neutral (white), GND (green), and
Line (black).
3 Terminal
cover +
Terminal Screw the terminal cover onto the terminal.
